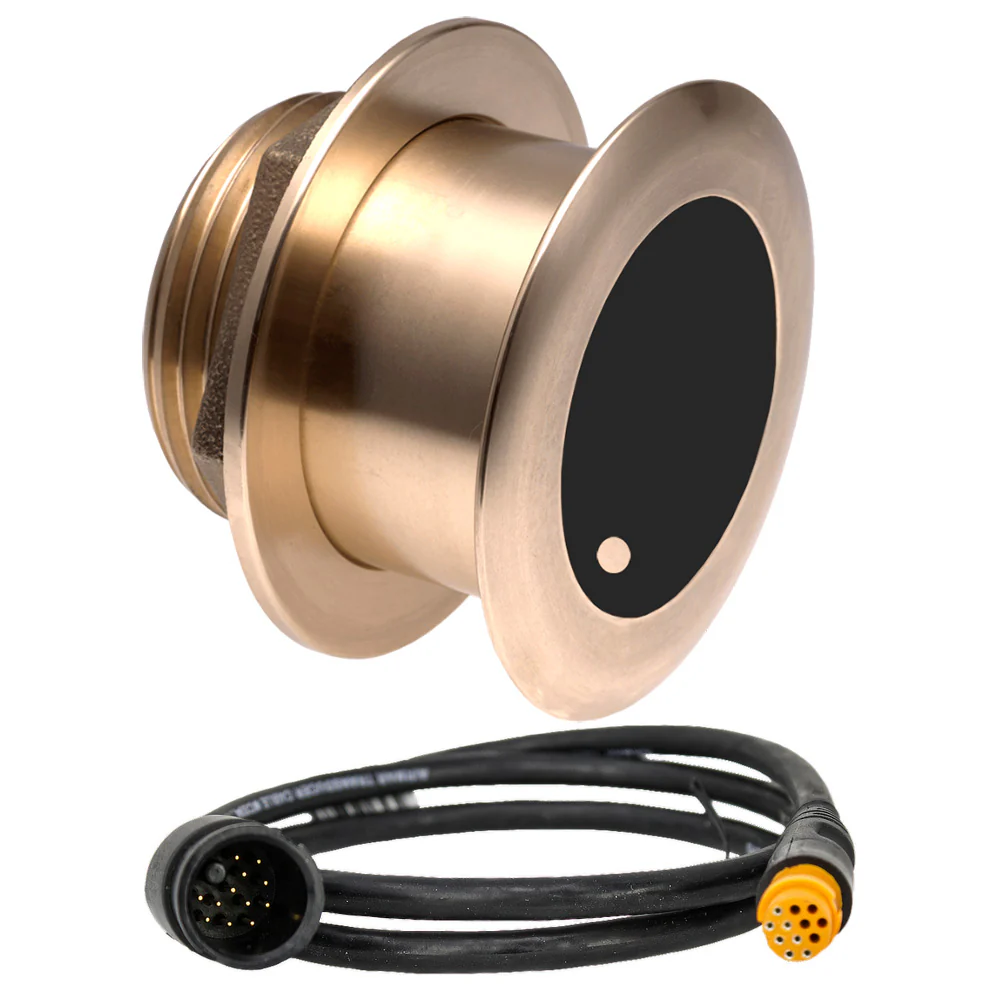

Airmar B175MW Med Ultra Wide 1kW, 20 Chirp Thru-Hull Transducer f/12-Pin Garmin
The B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer is engineered for anglers seeking exceptional performance and reliability on the water. Designed by Airmar Technology, this advanced transducer delivers superior mid-depth performance, ensuring precise fish-target separation and comprehensive coverage beneath your vessel.
Product Overview
Airmar's Chirp-ready B175MW Medium Ultra-Wide Tilted Element™ Thru-Hull transducer redefines fishing technology with its innovative design and high-performance capabilities. Operating within a medium frequency range of 60-100 kHz, the B175MW offers an expansive beamwidth of 57° to 73° port-starboard and an average fore-aft angle of 16°, providing maximum coverage and clarity in the water column. This makes it an ideal choice for anglers targeting pelagic species and deep-water fishing enthusiasts.
Key Features
- Tilted Element Design: Fixed at a 20° angle, the Tilted Element™ ensures the ceramic element is vertically oriented, maximizing echo returns and compensating for hull deadrise.
- High Power Output: With a 1 kW power rating, the B175MW delivers strong signal strength and depth tracking capabilities down to 400 meters (1,300 feet).
- Ultra-Wide Beamwidth: Provides a broad coverage area with 57° to 73° beamwidth port/starboard and a 16° average fore/aft, enhancing target detection and accuracy.
- Durable Construction: Crafted from bronze, the transducer housing is suitable for various hull types including stepped, planing, or displacement hulls.
- Garmin Compatibility: Equipped with a 12-pin connector, ensuring seamless integration with Garmin FishFinders.
- Temperature Sensor: Features a fast-response water-temperature sensor for real-time environmental data.
- Low-Profile Installation: The thru-hull design allows for streamlined installation, maintaining good resolution even at higher speeds.
- Exclusive Xducer ID® Technology: Enhances transducer identification and functionality within Garmin systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airmar Technology |
| Acoustic Window | Urethane |
| Cable Length | 9 m (30'), 10 m (33') |
| Common Use | Fishing |
| Connector | Garmin 12-Pin |
| Country of Origin | USA |
| Display Connector | 12G |
| Functions | Depth, Temperature |
| Hole Size | 95 mm (3-3/4") |
| Hull Material | Fiberglass or Wood |
| Material | Bronze |
| Max Deadrise Angle | 24° |
| Max Depth | 400 m (1300') |
| Max Vessel LOA | Up to 11 m (36') |
| Frequency | 60-100 kHz |
| Beamwidth | 57° to 73° (Port/Starboard) x 16° average (Fore/Aft) |
| Mounting Style | Tilted Element Thru-Hull |
| Power Rating | 1 kW |
| Frequency Type | Single |
| Tilt Angle | 20° |
| Tilted Element | Yes |
| Water Temperature Range | -10° to 40°C (14° to 104°F) |
| Weight | 2.7 kg (6 lbs.) |
Why Choose the B175MW Chirp Thru-Hull Transducer?
The B175MW stands out in the marine electronics market due to its unparalleled combination of frequency range, beamwidth, and durable construction. Whether you're navigating shallow waters or deep-sea fishing, this transducer provides the versatility and performance needed to enhance your fishing experience.
When paired with Airmar’s B275LHW or other compatible models, you gain access to a comprehensive set of frequencies, enabling you to explore targets from deep to shallow waters with ease.
Installation and Compatibility
Designed for ease of installation, the B175MW features a low-profile thru-hull housing that fits seamlessly into fiberglass or wooden hulls with a 95 mm (3-3/4") hole size. The fixed 20° tilt ensures optimal performance by aligning the transducer vertically, regardless of hull deadrise angles up to 24°. Compatible with Garmin FishFinders via a 12-pin connector, integration into your existing marine setup is straightforward.
Customer Support
Please note: This product may not be returned to the original point of purchase. For any issues or concerns, please contact Airmar Technology directly.
