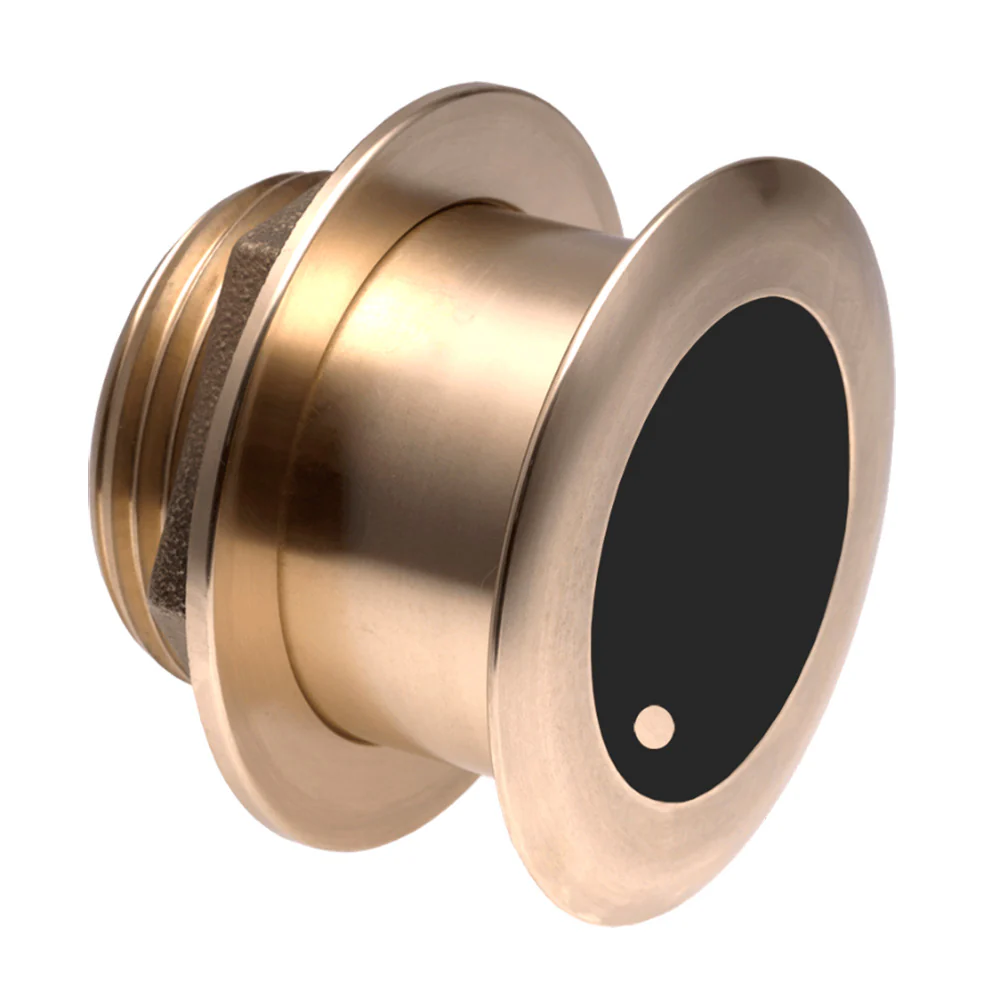

Airmar B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix Match Cable
Airmar’s Chirp-ready B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer is engineered to deliver exceptional performance for marine enthusiasts and anglers. With its medium frequency range and ultra-wide beamwidth, it offers superior target detection and fish separation, making it a perfect addition to your marine electronics setup.
Key Features
- Depth and fast-response water-temperature sensor
- Powerful 1 kW output with depth tracking down to 400 m (1,300')
- Medium frequency operation between 60-100 kHz for optimal mid-depth performance
- Ultra-wide beamwidth ranging from 57° to 73° port/starboard and an average of 16° fore/aft
- 40 kHz total bandwidth from a single transducer for comprehensive coverage
- Bronze housing suitable for stepped, planing, or displacement hulls
- Low-profile, thru-hull installation ensures high resolution even at speed
- Exclusive Xducer ID® technology for enhanced performance and compatibility
Specifications
| Parameter | Details |
|---|---|
| Power Rating | 1 kW |
| Max Deadrise Angle | 24° |
| Housing | Bronze |
| Functions | Depth, Temperature |
| Hull Material | Fiberglass or Wood |
| Max Vessel LOA | Up to 11 m (36') |
| Hole Size | 95 mm (3-3/4") |
| Mounting Style | Tilted Element Thru-Hull |
| Acoustic Window | Urethane |
| Cable Length | 9 m (30') |
| Common Use | Fishing |
| Max Depth | 400 m (1300') |
| Medium Frequency | 60-100 kHz |
| Beamwidth | 57° to 73° (Port/Starboard) × 16° average (Fore/Aft) |
| Frequency Mode | CHIRP-Ready Single-Band |
| Tilted Element | Yes |
| Water Temperature Range | -10° to 40°C (14° to 104°F) |
| Weight | 2.7 kg (6 lbs) |
Enhanced Compatibility and Performance
The B175MW Medium Ultra-Wide transducer pairs seamlessly with Airmar’s other models, such as the B275LHW, providing anglers with a comprehensive set of frequencies (Low, Medium-Wide, High-Wide) to cover targets from deep to shallow waters. Its medium frequency ensures superior mid-depth performance and excellent fish-target separation, making it ideal for those targeting pelagic species in the upper water column.
Superior Installation and Design
This transducer features AIRMAR’s Tilted Element™ technology, housed in a robust Bronze casing. The ceramic element is fixed at a 20° tilt, ensuring maximum echo returns by maintaining vertical orientation in various hull installations. The low-profile, thru-hull housing design allows for flush installation with the hull, enhancing resolution and performance even at higher speeds.
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
