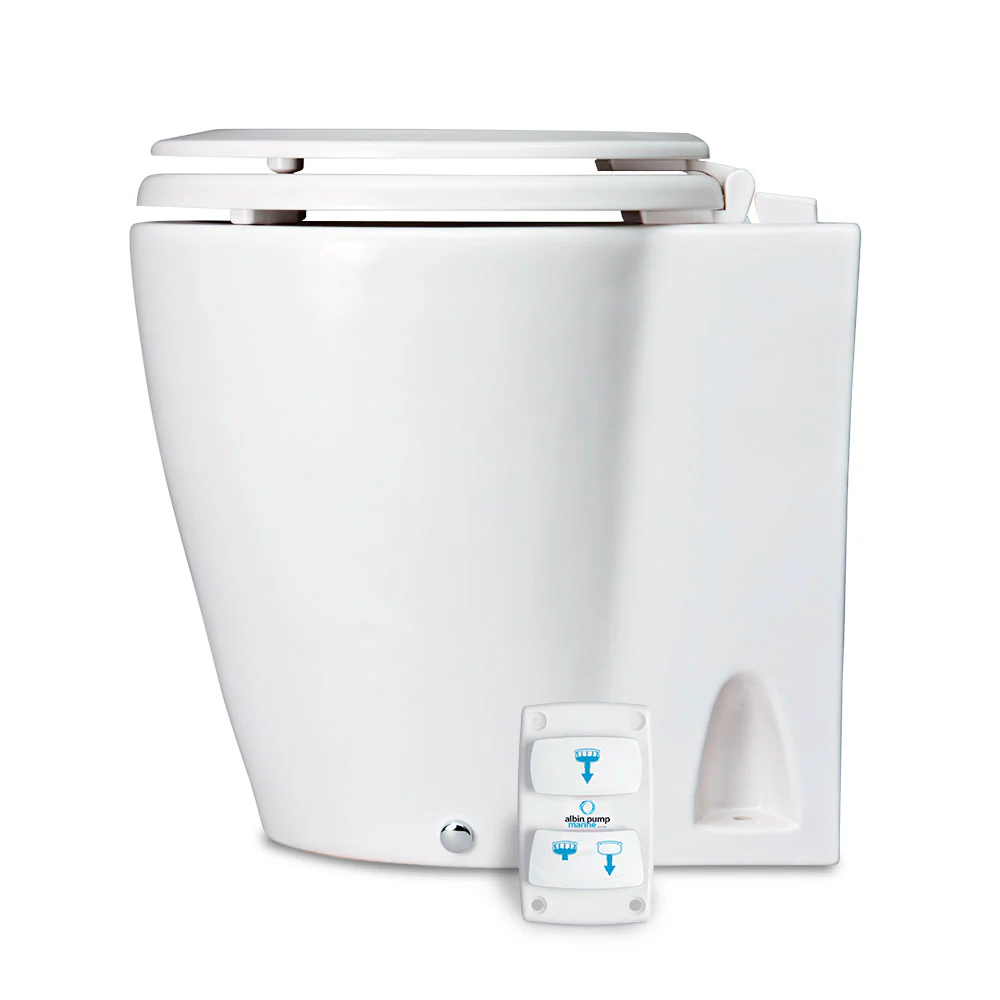

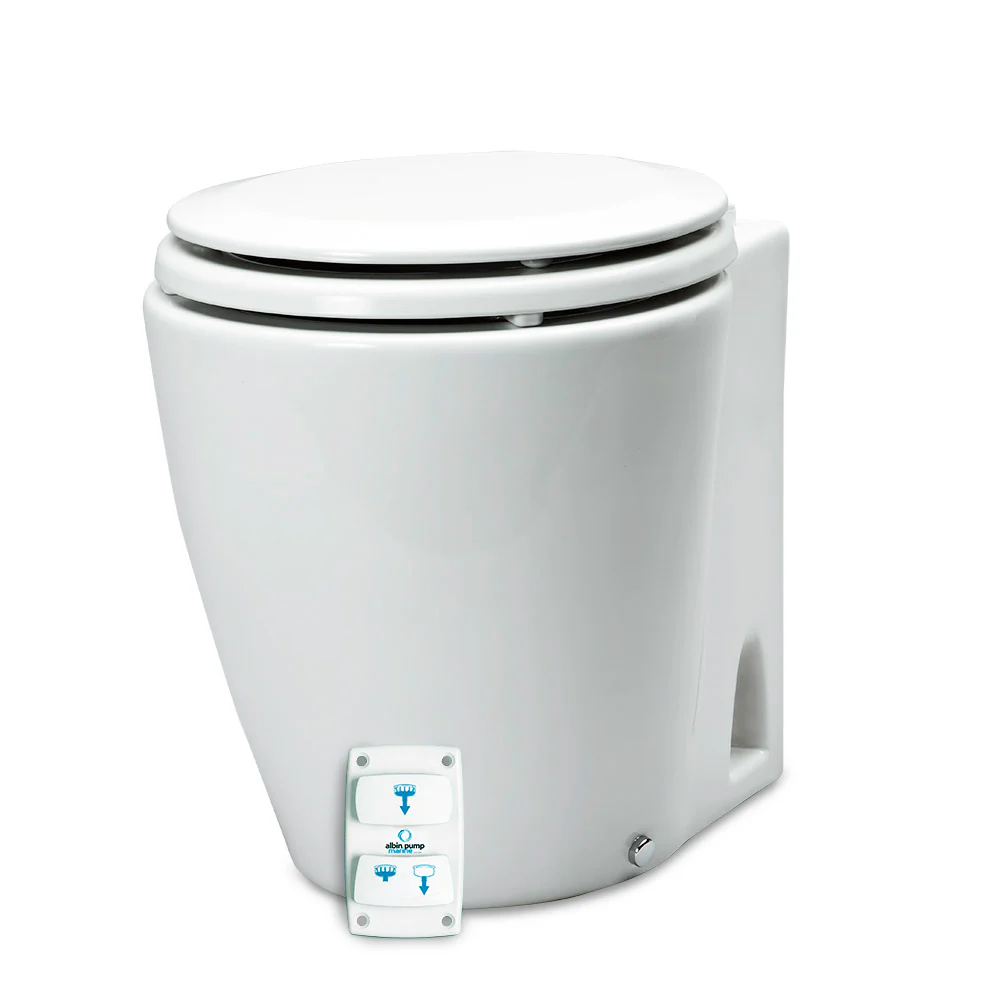

Upgrade your marine vessel with the Design Marine Silent Electric Toilet, a compact and efficient solution tailored for boating enthusiasts. Enjoy quiet operation and low water consumption, seamlessly integrating with your vessel's existing pressurized water system.

Features

• Silent electric operation with separate flushing and waste disposal cycles.
• Electronic 3-function control panel: before use, after use, and short use functions, including a trimmer to regulate flow rate.
• Connects to your boat’s existing 12V pressurized water system with options for a solenoid valve or flush pump (not included).
• Multiple port connection sizes: inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1.5″).
• Easy-to-clean white ceramic bowl and white wooden seat for a home-like appearance.
• Robust, stable, and compact design ensuring durability and space efficiency.

Specifications

Specification	Details
Weight	15.2 kg / 39 lbs
Dimensions	405/15.9L x 410/16.14H x 340/13.4W mm/in
Type	Dual Operation Electric
Color	White
Inlet Size	3/4"
Outlet Size	1" or 1.5"
Operation Method	Electric
Rinse Water	Fresh
Volts	12V
Box Dimensions	15"H x 18"W x 18"L
Box Weight	40.5 lbs
UPC	7340176601902

Installation

The Design Marine Silent Electric Toilet integrates seamlessly with your boat’s existing pressurized water system. It requires a 12V solenoid valve (PN 07-66-030) or a 12V flush pump (PN 07-66-032), which are not included. Ensure proper port connections with an inlet size of 19mm (3/4″) and outlet sizes of either 25mm or 38mm (1″ or 1.5″) for optimal performance.

Certifications

• CE Marked: 94/25/ECC
• ISO8846: Small Craft
• Electromagnetic Compatibility: 89/336/EEC
• EN51014 1993: Radio Disturbance
