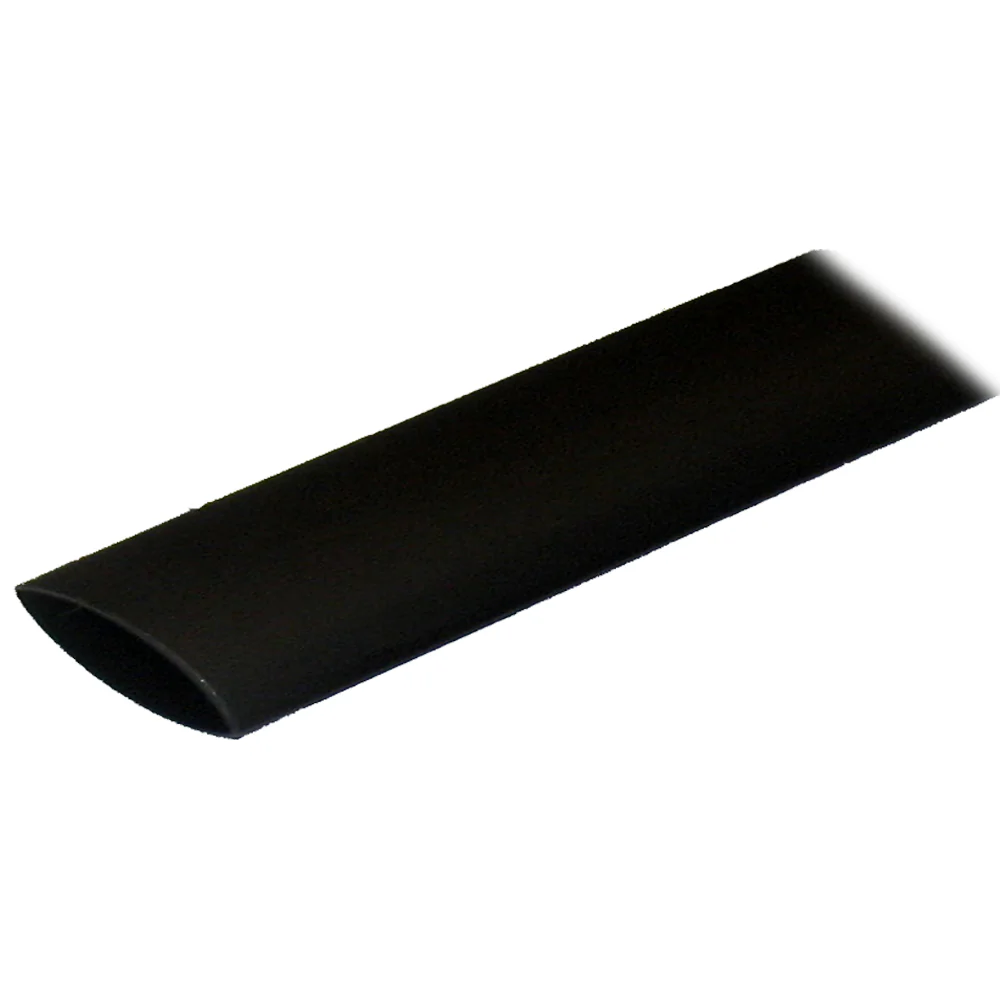

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 1" x 48" - 1-Pack - Black
Ensure your marine electrical connections are secure and protected with our Adhesive Lined Heat Shrink Tubing. Designed specifically for the demanding marine and boating environments, this heat shrink tubing provides a reliable seal against water, salt, and other harsh elements, ensuring longevity and safety for your onboard wiring systems.
Product Features
- Durable Material: Made from cross-linked polyolefin tubing, offering superior strength compared to PVC tubing and enhanced resistance to burning.
- Adhesive Lining: Heat-activated adhesive provides an impervious seal against salt water, oil, acids, and sunlight, while also offering effective strain relief for your wires.
- High Shrink Ratio: Shrinks to one-third of its original size, ensuring a tight and compact fit around your cables.
- Heat Activation: Activates and shrinks at 257°F (125°C), allowing for easy and efficient installation.
- Wide Temperature Range: Operates reliably in temperatures ranging from -40°C to 110°C, making it suitable for various marine applications.
- UL 224 Certified: Meets safety standards for electrical insulation in marine environments.
Technical Specifications
| Specification | Adhesive Lined Heat Shrink Tubing (ALT) |
|---|---|
| Size | 1" Diameter x 48" Length (25.4mm x 122cm) |
| Shrink Size | 5/16" Diameter (7.9mm) |
| Wire Range | 2-4/0 AWG |
| Shrink Temperature | 257°F / 125°C |
| Operating Temperature | -40°C to 110°C |
| Certification | UL 224 |
| Box Dimensions | 1" H x 1" W x 48" L |
| Weight | 0.5 lbs |
| UPC | 091887808575 |
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
