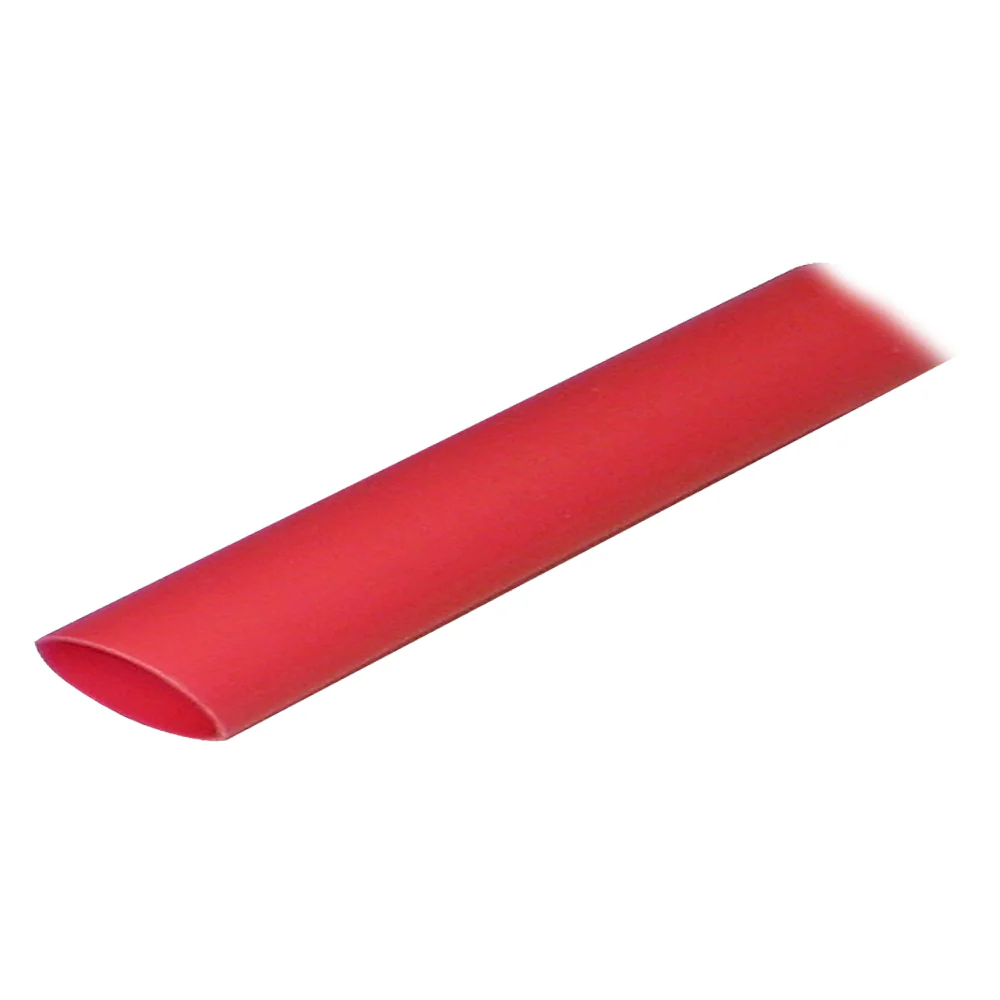

Enhance the reliability and safety of your marine electrical systems with our Red Adhesive Lined Heat Shrink Tubing. Specifically engineered for the demanding conditions of marine and boating environments, this high-quality tubing ensures secure and waterproof connections, protecting your wiring from saltwater, UV exposure, and extreme temperatures.

Product Features

• Superior Material: Crafted from cross-linked polyolefin tubing, our heat shrink tubing is significantly stronger than standard PVC tubing and offers enhanced resistance to burning.
• Adhesive Lining: The heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, providing exceptional strain relief and long-lasting protection.
• High Shrink Ratio: Achieves up to a 3:1 shrink ratio, reducing from 3/4" (19mm) diameter to 1/4" (6.4mm), ensuring a tight and secure fit around your marine wiring.
• Heat Activation: Easily shrinks at temperatures of 257°F (125°C), allowing for quick and efficient installation.
• Wide Temperature Range: Operates reliably in environments ranging from -40°C to 110°C, making it ideal for various marine applications.
• UL Certified: Meets UL 224 standards, ensuring compliance with safety regulations and providing peace of mind for your marine projects.

Wire Compatibility

Compatible with wire sizes ranging from 8 AWG to 2/0 AWG, making it versatile for a variety of marine electrical installations.

Specifications

Type	Heat Shrink
Dimensions	3/4" (19mm) diameter x 48" (122cm) length
Shrink Diameter	1/4" (6.4mm)
Operating Temperature	-40°C to 110°C
Shrink Temperature	257°F (125°C)
Certification	UL 224
Box Dimensions	1"H x 1"W x 48"L
Weight	0.2 lbs
UPC	091887808537

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
