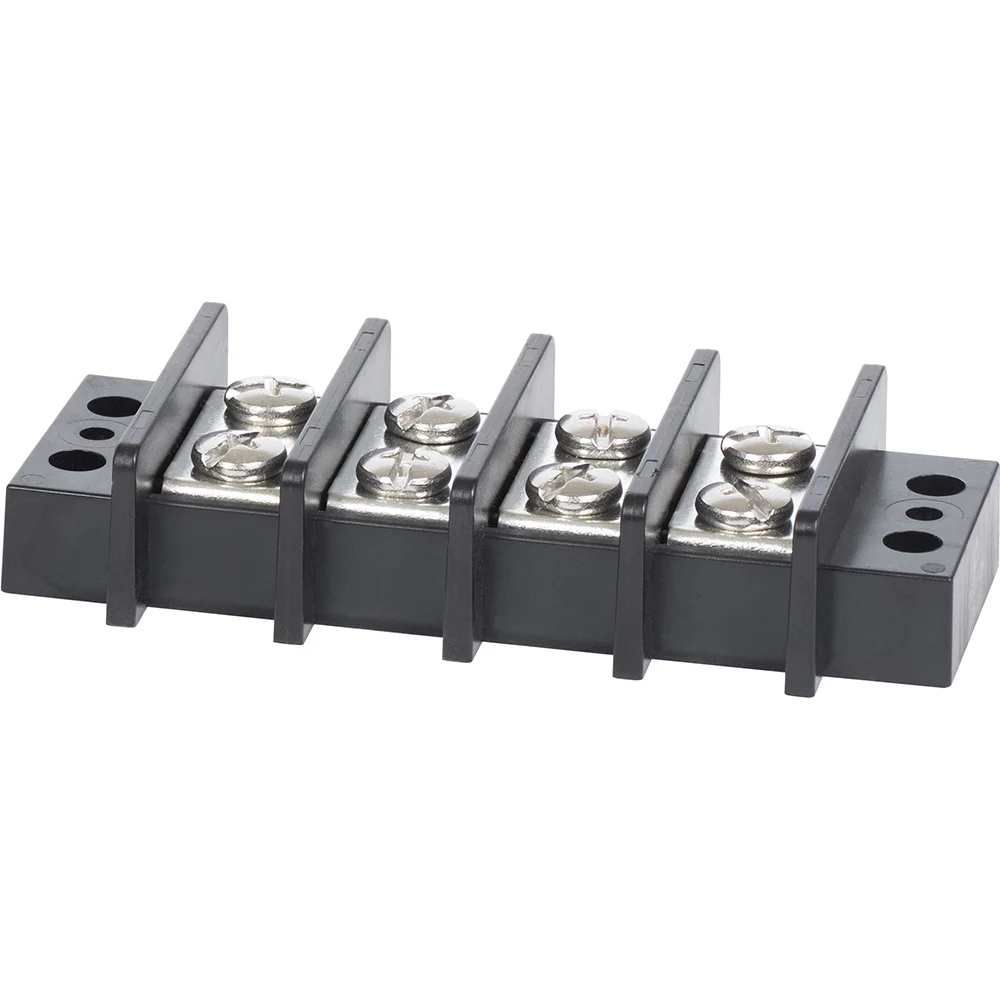

Blue Sea 2604 Terminal Block 65AMP - 4 Circuit
The 2604 Terminal Block 65AMP - 4 Circuit is an essential component for managing your boat's electrical system. Designed specifically for marine environments, this terminal block ensures reliable and safe power distribution, making it an ideal choice for boating enthusiasts looking to optimize their vessel's electrical setup.
Key Features
- Closed Back Design: Completely insulates power from the mounting surface, preventing accidental short circuits and enhancing safety.
- Isolated Circuits: Each screw pair functions as an isolated circuit, allowing for precise control and management of different electrical components on your boat.
- Configurable Jumpers: Jumpers enable the creation of common circuits, providing flexibility in your boat's electrical configuration and simplifying the wiring process.
Specifications
| Specification | Details |
|---|---|
| Model | 2604 Terminal Block |
| Amperage | 65 AMP |
| Number of Circuits | 4 Circuits |
| Design | Closed Back |
| Materials | Marine-grade components resistant to corrosion and harsh marine environments |
| Mounting | Easy to install with standard mounting hardware |
Benefits for Marine Applications
Utilizing the 2604 Terminal Block in your marine setup offers several advantages:
- Enhanced Safety: The insulated design reduces the risk of electrical hazards, ensuring a safer environment on board.
- Reliable Performance: Built to withstand the demanding conditions of marine environments, providing consistent power distribution.
- Easy Maintenance: Simplifies troubleshooting and maintenance with clearly defined and isolated circuits.
- Flexibility: The ability to create common circuits with jumpers allows for customized electrical configurations tailored to your specific needs.
Installation Guide
Installing the 2604 Terminal Block is straightforward. Follow these steps to integrate it into your boat's electrical system:
- Choose a suitable location away from direct water exposure and extreme temperatures.
- Secure the terminal block to the mounting surface using appropriate hardware.
- Connect your electrical wires to the designated screw pairs, ensuring each pair corresponds to the desired circuit.
- Utilize jumpers as needed to create common circuits, following the configuration requirements of your boat's electrical system.
- Double-check all connections for tightness and proper insulation before powering up the system.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
