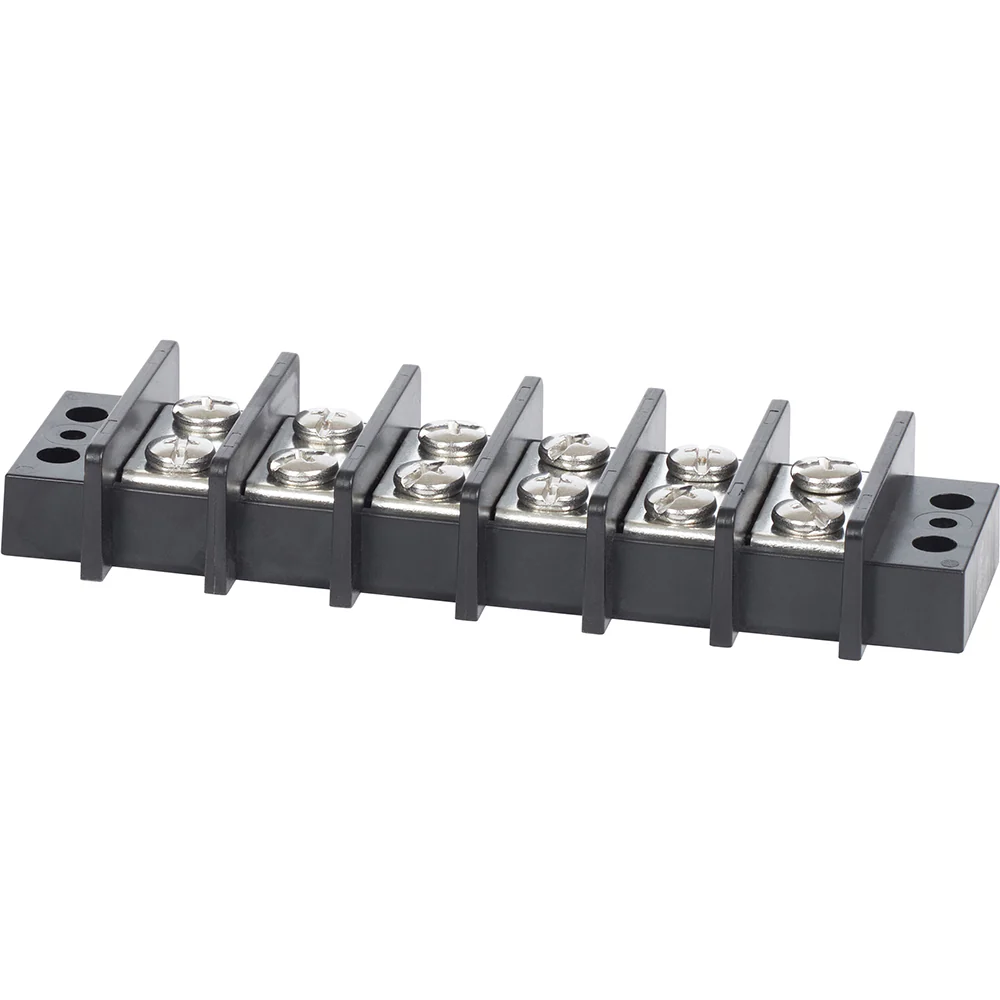

The Terminal Block 65AMP - 6 Circuit is an essential component for marine electrical systems, providing reliable and secure connections for your boat’s wiring needs. Designed to withstand the harsh marine environment, this terminal block ensures efficient power distribution across various circuits, enhancing the safety and performance of your vessel.

Key Features

• Closed Back Design: Completely insulates power from the mounting surface, preventing accidental shorts and ensuring a safe installation.
• Independent Circuits: Each screw pair operates as an isolated circuit, allowing for precise control and management of your boat’s electrical systems.
• Versatile Jumpers: Jumpers enable the creation of common circuits, providing flexibility in your wiring setup and accommodating various marine electrical configurations.
• High Current Capacity: Supports up to 65 amps, making it suitable for high-demand applications such as lighting, navigation systems, and propulsion controls.
• Durable Construction: Built with marine-grade materials to resist corrosion, vibration, and exposure to water, ensuring long-lasting performance in a marine environment.

Specifications

Parameter	Details
Maximum Current	65 Amps
Number of Circuits	6
Design	Closed Back Insulated
Material	Marine-Grade Plastic and Metal Alloy
Dimensions	[Insert Dimensions Here]
Color	Black

Installation Guide

Installing the Terminal Block 65AMP - 6 Circuit on your boat is straightforward:

1. Choose a suitable mounting location that is dry and easily accessible.
2. Secure the terminal block to the mounting surface using the provided screws.
3. Connect your boat’s wiring to the corresponding screw pairs, ensuring each connection is tight and secure.
4. Use jumpers as needed to create common circuits for shared power distribution.
5. Double-check all connections for proper insulation and secure fitting.

Benefits for Marine Applications

• Enhanced Safety: The insulated design minimizes the risk of electrical shorts and potential hazards onboard.
• Reliable Performance: High amperage support ensures consistent power delivery to critical marine systems.
• Easy Maintenance: Modular design allows for simple troubleshooting and component replacement without extensive rewiring.
• Space Efficiency: Compact size fits neatly into limited marine spaces, optimizing your vessel’s layout.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to P65Warnings.ca.gov.

Additional Resources

For a detailed installation video and user manual, please visit our resources page.
