Upgrade your boat's control panel with the 4180 Backlit Push Button Switch – a reliable and stylish solution for managing your marine electrical systems. Designed for durability and ease of use, this switch ensures seamless operation of essential boat functions.

Features

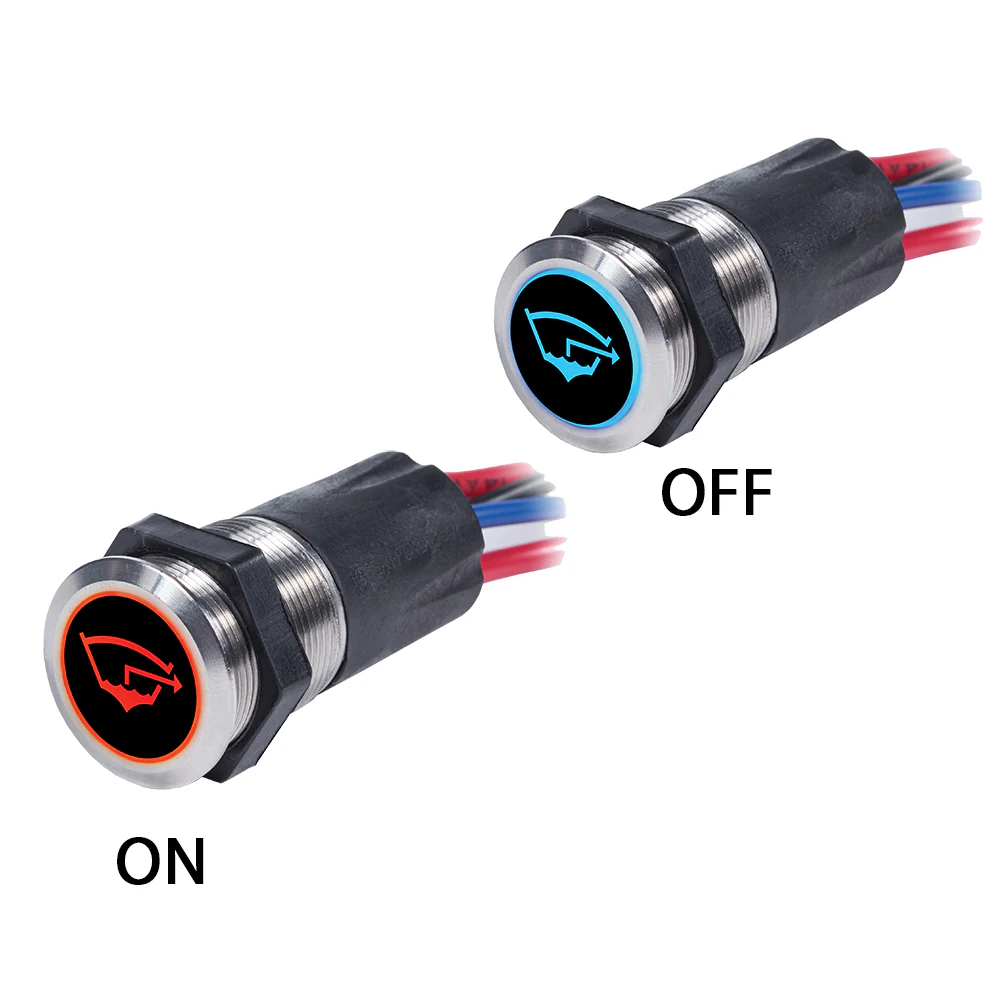

• Dual Color Backlighting: Blue illuminates the OFF position, while red signifies the ON position, providing clear visual indicators in low-light marine environments.
• Versatile ICON Labels: Includes five pre-labeled ICONs for common boat functions: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump. Customize further with an additional 50 ICON label kit available separately.
• Stainless Design: Rust-resistant stainless finish ensures longevity and maintains aesthetic appeal in harsh marine environments.

Technical Specifications

Feature	Details
Action	OFF/ON
Amperage	15A @ 12V DC
Nominal Voltage	12V DC
Maximum Voltage	15V DC
Maximum LED Operating Current	20mA
Switching Cycles	10,000
Temperature Range	-20°C to 55°C
Termination	3" Bare Wire Pigtail
Wire Size	Black & Blue Wires: 18 AWG Red & Red/White Wires: 14 AWG
Color	Stainless
Box Dimensions	2"H x 3"W x 10"L
Weight	0.1 lbs
UPC	632085041809

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Installation and Use

Designed for the marine environment, the 4180 Backlit Push Button Switch is easy to install with its 3" bare wire pigtail termination. The stainless finish complements any boat's interior, while the durable construction withstands the challenges of the sea. Whether controlling your bilge pump or running lights, this switch provides reliable performance you can count on during your voyages.

Additional Information

• Included Labels: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
• Additional Labels: 50 ICON label kit sold separately
