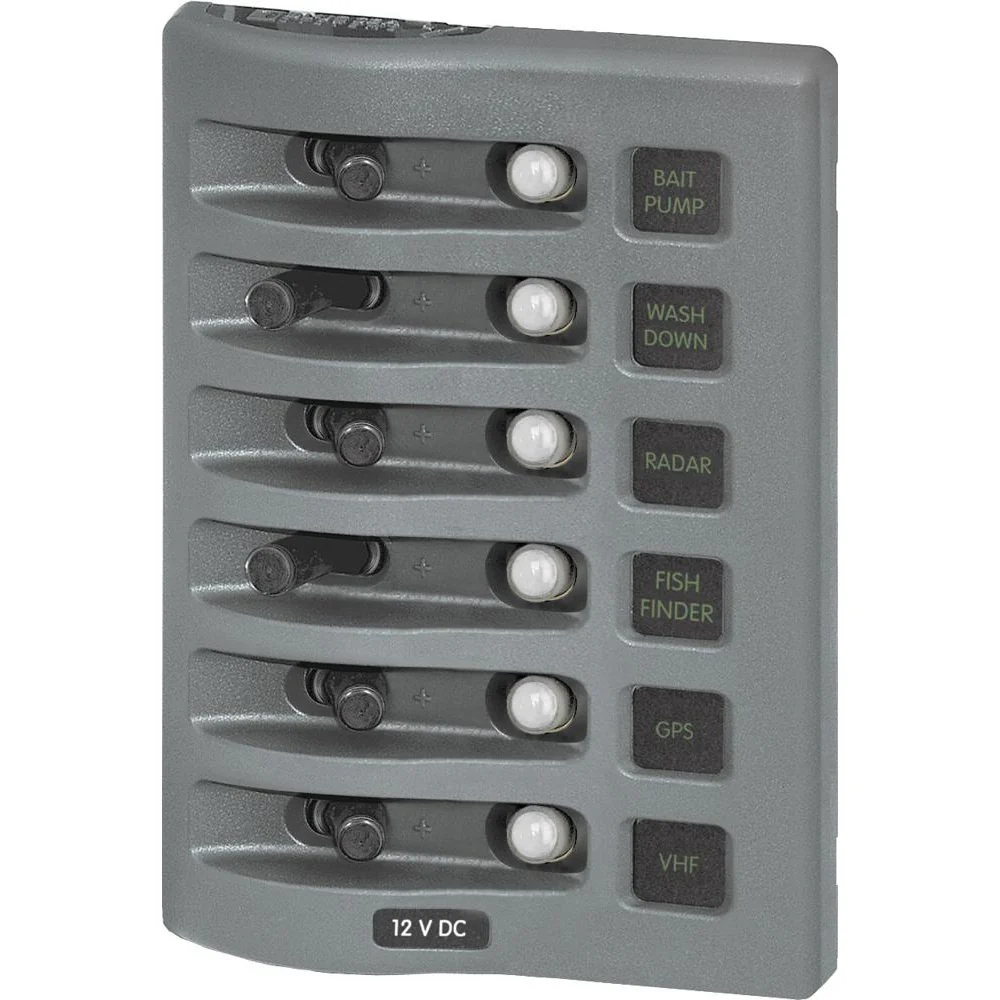

Blue Sea 4376 WeatherDeck Water Resistant Circuit Breaker Panel - 6 Position - Grey
The WeatherDeck™ Water Resistant Circuit Breaker Panel is the ultimate solution for marine and boating applications, offering robust protection and versatile functionality in harsh marine environments. Designed with durability and ease of use in mind, this panel ensures your boat's electrical systems remain safe and reliable, no matter the conditions.
Product Details
- PN: 4376
- Color: Gray
Features
- Rated IP67 for temporary immersion up to 30 minutes, ensuring superior waterproof performance.
- Optimally designed for flybridge and open cockpit applications, providing flexibility in installation.
- Independent label backlighting allows for easy switching and dimming, enhancing usability in low-light conditions.
- Fully compatible with all Blue Sea Systems Digital Dimmers, offering seamless integration with existing setups.
- Each panel can be mounted in four different orientations, allowing for tailored installation based on your vessel's configuration.
- Equipped with green LEDs for improved low-light readability. All labels illuminate when the panel is powered, regardless of individual switch positions.
Specifications
| Feature | Details |
|---|---|
| Waterproof Rating | IP67 (Waterproof) |
| Voltage | 12V / 24V DC |
| AC/DC | DC |
| Positions | 6 |
| Maximum Amperage | 15A @ 12V DC per circuit / 9A @ 24V DC per circuit |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA per illuminated circuit |
| Backlighting Voltage | 12V or 24V DC |
| Dimensions | Height: 6.0" | Width: 4.25" | Depth: 3.5" |
| Weight | 1.4 lbs |
| UPC | 632085043766 |
What's Included
- 6 x 4135 Push Button Reset Only Circuit Breaker Boots - Clear
- 6 x 4138 WeatherDeck® Toggle Switch Boots - Black
- 6 x 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
- 1 x 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
- 6 x 7056 Push Button Reset Only Quick Connect Circuit Breakers - 15 Amps
Installation & Usage
Mount the WeatherDeck™ Circuit Breaker Panel in any of the four available orientations to best fit your boat's layout. The independent label backlighting and green LEDs ensure that all labels are visible when the panel is powered, providing clear indicators for each circuit. Compatible with Blue Sea Systems Digital Dimmers, this panel allows you to control lighting with ease and precision.
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Resources
The WeatherDeck™ Water Resistant Circuit Breaker Panel is the ultimate solution for marine and boating applications, offering robust protection and versatile functionality in harsh marine environments. Designed with durability and ease of use in mind, this panel ensures your boat's electrical systems remain safe and reliable, no matter the conditions.
Product Details
- PN: 4376
- Color: Gray
Features
- Rated IP67 for temporary immersion up to 30 minutes, ensuring superior waterproof performance.
- Optimally designed for flybridge and open cockpit applications, providing flexibility in installation.
- Independent label backlighting allows for easy switching and dimming, enhancing usability in low-light conditions.
- Fully compatible with all Blue Sea Systems Digital Dimmers, offering seamless integration with existing setups.
- Each panel can be mounted in four different orientations, allowing for tailored installation based on your vessel's configuration.
- Equipped with green LEDs for improved low-light readability. All labels illuminate when the panel is powered, regardless of individual switch positions.
Specifications
| Feature | Details |
|---|---|
| Waterproof Rating | IP67 (Waterproof) |
| Voltage | 12V / 24V DC |
| AC/DC | DC |
| Positions | 6 |
| Maximum Amperage | 15A @ 12V DC per circuit / 9A @ 24V DC per circuit |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA per illuminated circuit |
| Backlighting Voltage | 12V or 24V DC |
| Dimensions | Height: 6.0" | Width: 4.25" | Depth: 3.5" |
| Weight | 1.4 lbs |
| UPC | 632085043766 |
What's Included
- 6 x 4135 Push Button Reset Only Circuit Breaker Boots - Clear
- 6 x 4138 WeatherDeck® Toggle Switch Boots - Black
- 6 x 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
- 1 x 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
- 6 x 7056 Push Button Reset Only Quick Connect Circuit Breakers - 15 Amps
Installation & Usage
Mount the WeatherDeck™ Circuit Breaker Panel in any of the four available orientations to best fit your boat's layout. The independent label backlighting and green LEDs ensure that all labels are visible when the panel is powered, providing clear indicators for each circuit. Compatible with Blue Sea Systems Digital Dimmers, this panel allows you to control lighting with ease and precision.
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Resources
Original: $144.99
-70%$144.99
$43.50Description
The WeatherDeck™ Water Resistant Circuit Breaker Panel is the ultimate solution for marine and boating applications, offering robust protection and versatile functionality in harsh marine environments. Designed with durability and ease of use in mind, this panel ensures your boat's electrical systems remain safe and reliable, no matter the conditions.
Product Details
- PN: 4376
- Color: Gray
Features
- Rated IP67 for temporary immersion up to 30 minutes, ensuring superior waterproof performance.
- Optimally designed for flybridge and open cockpit applications, providing flexibility in installation.
- Independent label backlighting allows for easy switching and dimming, enhancing usability in low-light conditions.
- Fully compatible with all Blue Sea Systems Digital Dimmers, offering seamless integration with existing setups.
- Each panel can be mounted in four different orientations, allowing for tailored installation based on your vessel's configuration.
- Equipped with green LEDs for improved low-light readability. All labels illuminate when the panel is powered, regardless of individual switch positions.
Specifications
| Feature | Details |
|---|---|
| Waterproof Rating | IP67 (Waterproof) |
| Voltage | 12V / 24V DC |
| AC/DC | DC |
| Positions | 6 |
| Maximum Amperage | 15A @ 12V DC per circuit / 9A @ 24V DC per circuit |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA per illuminated circuit |
| Backlighting Voltage | 12V or 24V DC |
| Dimensions | Height: 6.0" | Width: 4.25" | Depth: 3.5" |
| Weight | 1.4 lbs |
| UPC | 632085043766 |
What's Included
- 6 x 4135 Push Button Reset Only Circuit Breaker Boots - Clear
- 6 x 4138 WeatherDeck® Toggle Switch Boots - Black
- 6 x 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
- 1 x 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
- 6 x 7056 Push Button Reset Only Quick Connect Circuit Breakers - 15 Amps
Installation & Usage
Mount the WeatherDeck™ Circuit Breaker Panel in any of the four available orientations to best fit your boat's layout. The independent label backlighting and green LEDs ensure that all labels are visible when the panel is powered, providing clear indicators for each circuit. Compatible with Blue Sea Systems Digital Dimmers, this panel allows you to control lighting with ease and precision.
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
