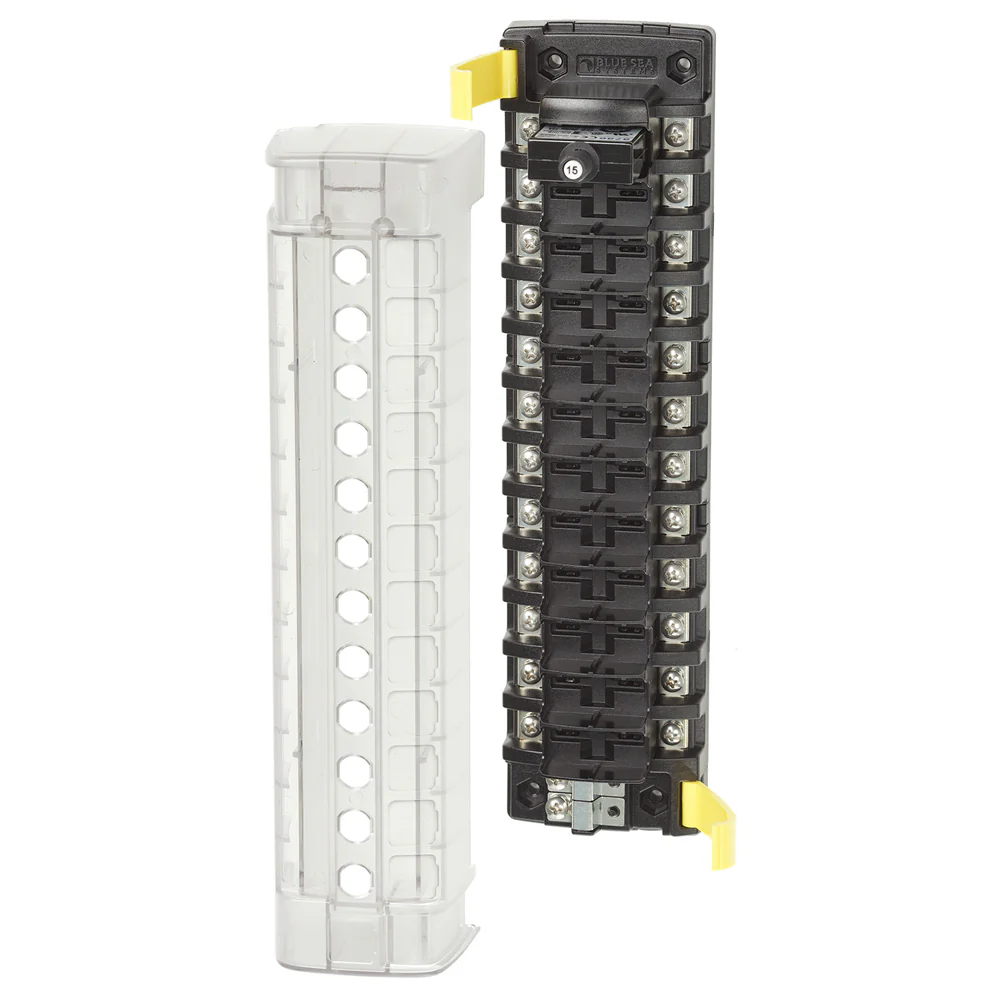

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position
The ST CLB Circuit Breaker Block - 12 Position is an essential component for marine and boating electrical systems, providing reliable protection and easy management of your vessel's circuits. Designed for durability and ease of use, this breaker block ensures your marine electrical setup remains safe and efficient.
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals for improved conductivity and corrosion resistance
- Clear insulating cover with square format label recesses, meeting ABYC/USCG insulation requirements
- Easy-to-open clip-on cover for convenient access
- Breakouts provide wire access in two directions for flexible installation
- Compatible with ring terminals for secure connections
- Optional push button waterproof boots or dress nuts can be installed over the cover for enhanced protection
Specifications
| Parameter | Details |
|---|---|
| Circuits | 12 |
| Amperage | 32A (per circuit), 40A (per jumped circuit group) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Source | Independent Source |
| Operating Temperature | Minimum: -10° C Maximum: 60° C |
| Mounting Centers | 10.13" (257.3 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Dimensions | Height: 6.69" (169.93 mm) |
| Weight | 1.50 lb (0.68 kg) |
| Box Dimensions | 3"H x 5"W x 18"L |
| UPC | 632085050511 |
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
