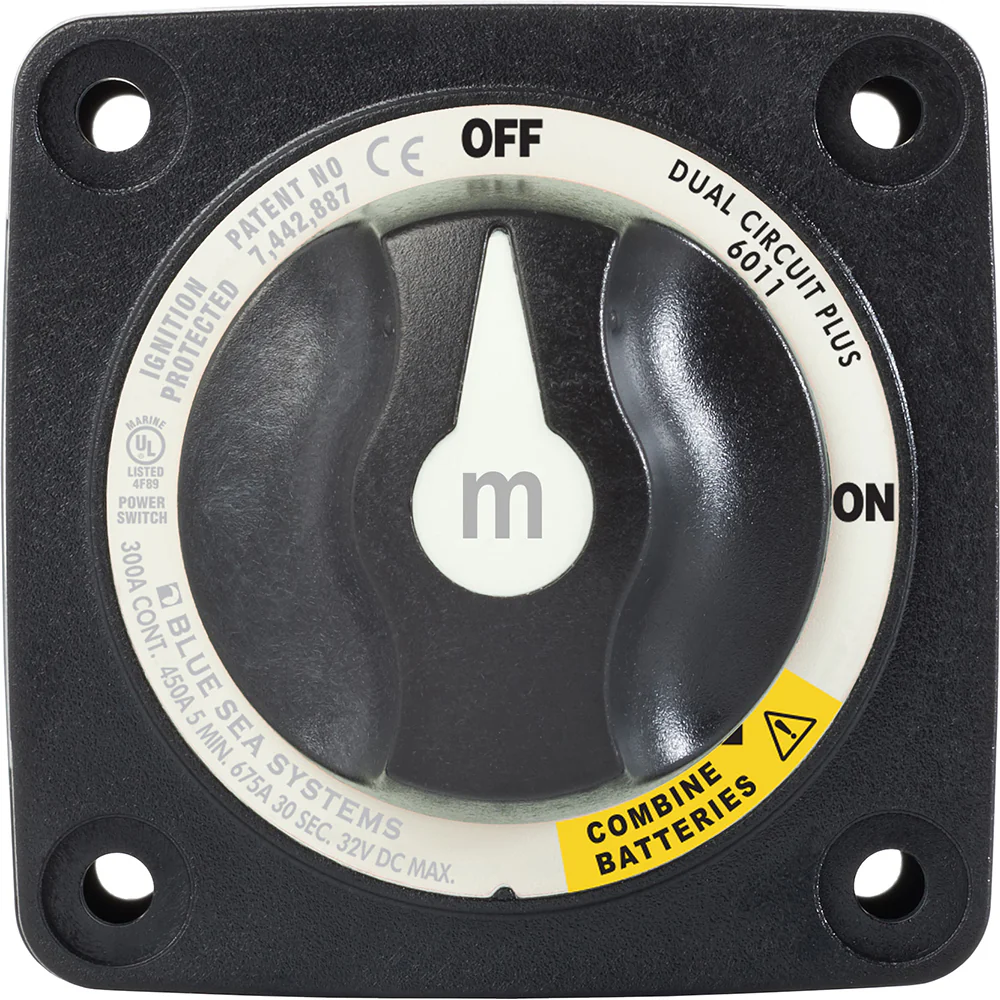

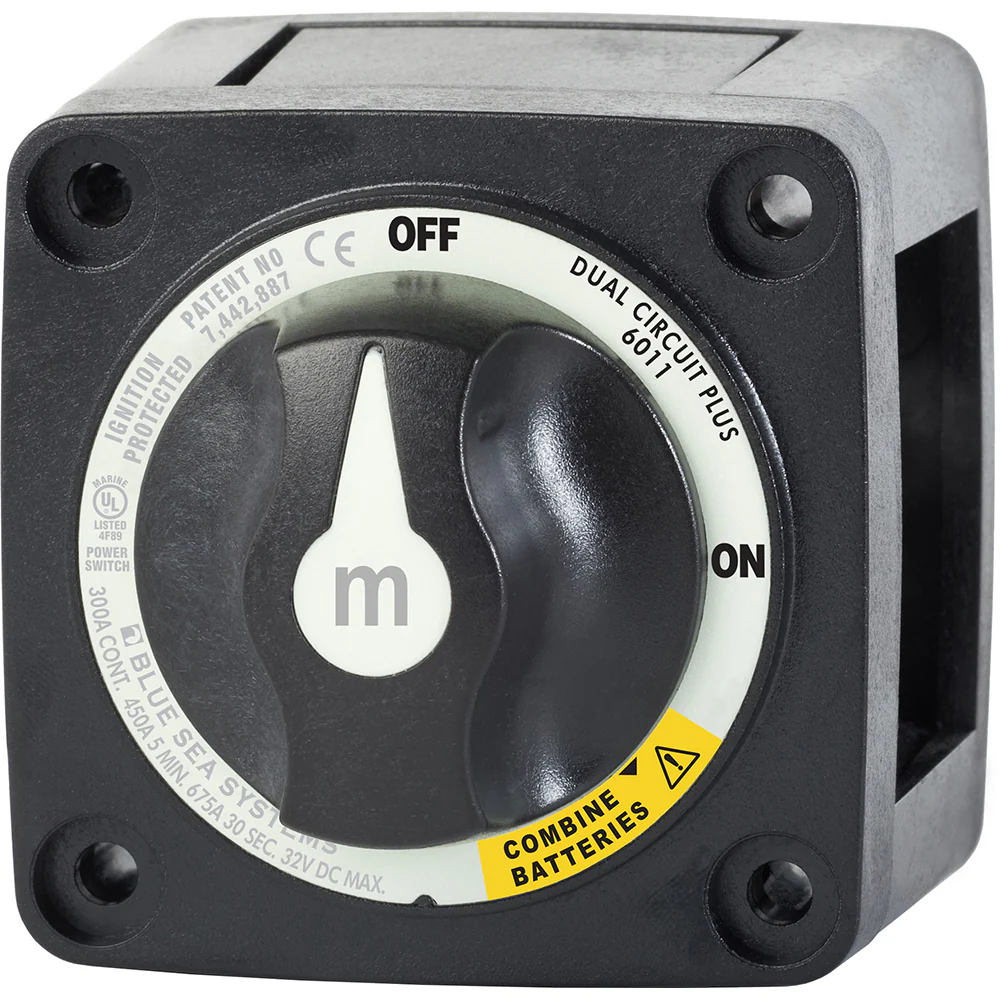

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black
The m-Series Mini Dual Circuit Plus Battery Switch in sleek black is the perfect solution for marine enthusiasts looking to efficiently manage their boat's power systems. Whether you need to switch between two isolated battery banks or combine them to power all your marine loads, this high-performance switch ensures seamless operation without any power interruptions.
Key Features
- Dual Circuit Plus Design: Allows simultaneous switching between two battery banks or combining them to supply all loads.
- Make-Before-Break Contact: Ensures uninterrupted power flow when switching between battery banks.
- Robust Construction: Handles continuous currents up to 300A and intermittent currents up to 450A.
- Compact and Durable: Weighing only 0.80lb (0.36 kg) with a sleek black finish, it fits seamlessly into your marine setup.
- Easy Installation: Compatible with 4/0 AWG cables and accepts #10 screws for secure mounting.
Technical Specifications
| Attribute | Details |
|---|---|
| Switch Type | Dual Circuit Plus |
| Color | Black |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating (10 sec) | 1000A |
| Cranking Rating (1 min) | 650A |
| Battery Inputs | 2 |
| Cable Clearance for 4/0 AWG Cables | 1.12 in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accepts #10 Screw |

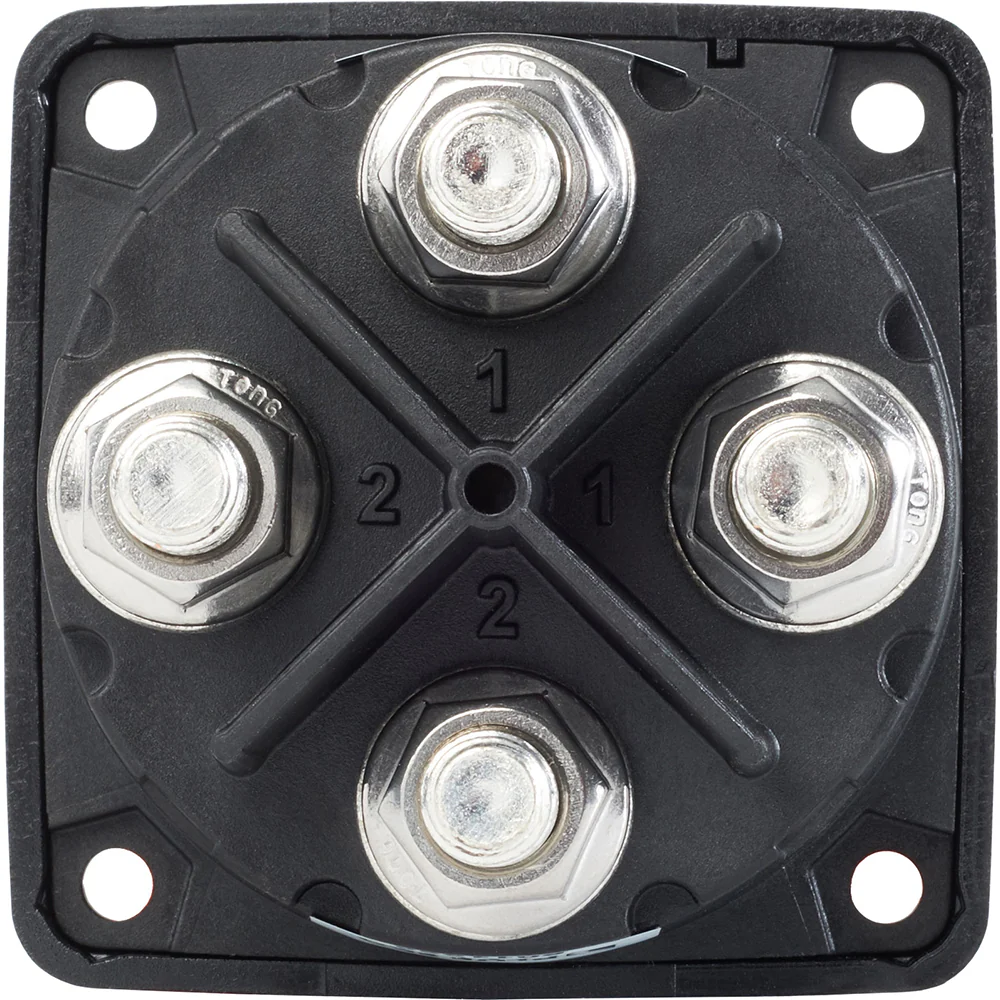

| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Box Dimensions | 3"H x 4"W x 7"L |
| Weight | 0.80 lb (0.36 kg) |
| UPC | 632085601126 |
Marine-Ready Design
Specifically engineered for marine applications, the m-Series Mini Battery Switch offers reliable performance in harsh marine environments. Its black finish not only adds a stylish touch to your boat's interior but also provides resistance against corrosion and UV exposure, ensuring long-lasting durability.Safety and Compliance
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Resources
For detailed installation instructions and maintenance guidelines, please refer to the Owner's Manual (PDF).
