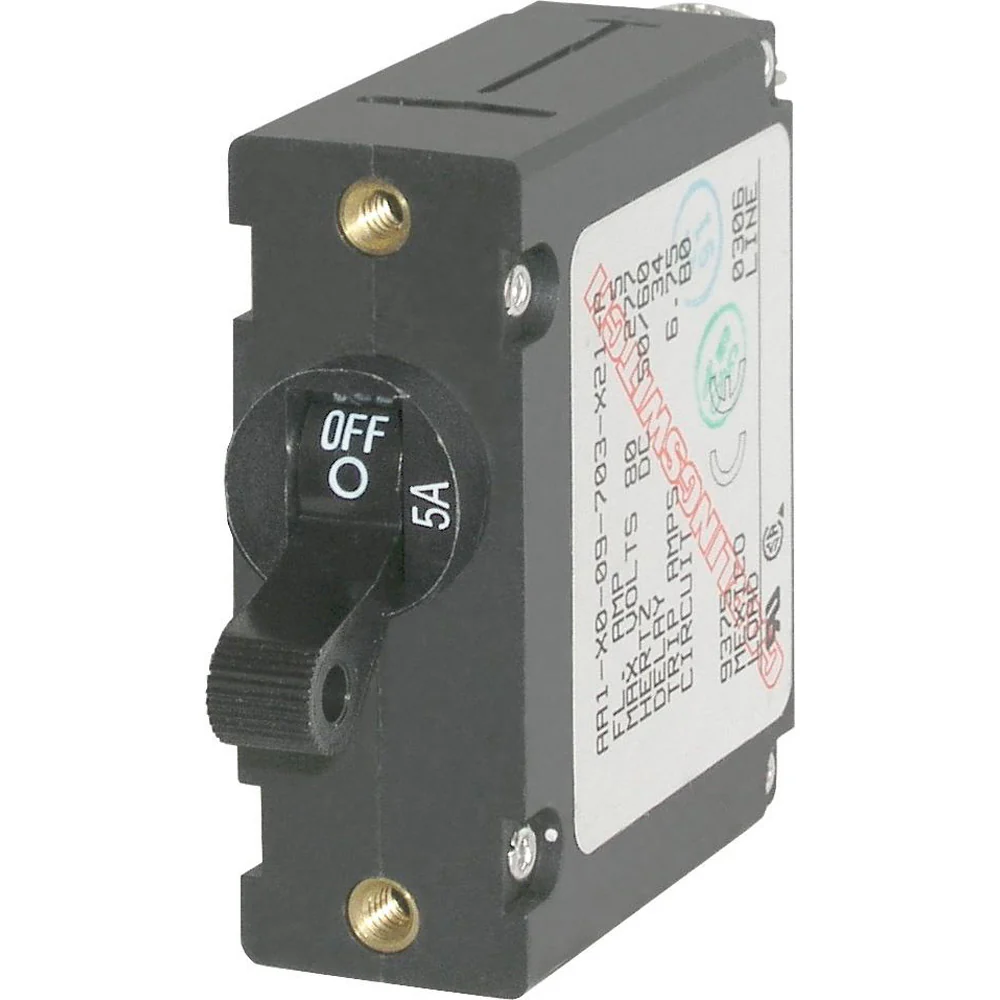

The Blue Sea Systems AC/DC Single Pole Magnetic World Circuit Breaker offers dependable protection for your boat's electrical systems. Engineered to meet stringent marine standards, this circuit breaker ensures the safety and efficiency of your vessel's electrical panel, making it an essential component for any marine enthusiast.

The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.

Key Features

• The industry standard circuit breaker for Blue Sea Systems electrical panels
• Combines switching and circuit protection into a single device
• Single pole Quick Trip models are specifically designed for electronics protection
• "Trip Free" design ensures the breaker cannot be held "ON" during fault current conditions

Technical Specifications

Part Number (PN)	7200
Color	Black
Amperage	5 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Box Dimensions	1"H x 3"W x 5"L
Weight	0.2 lbs
UPC	632085072001
