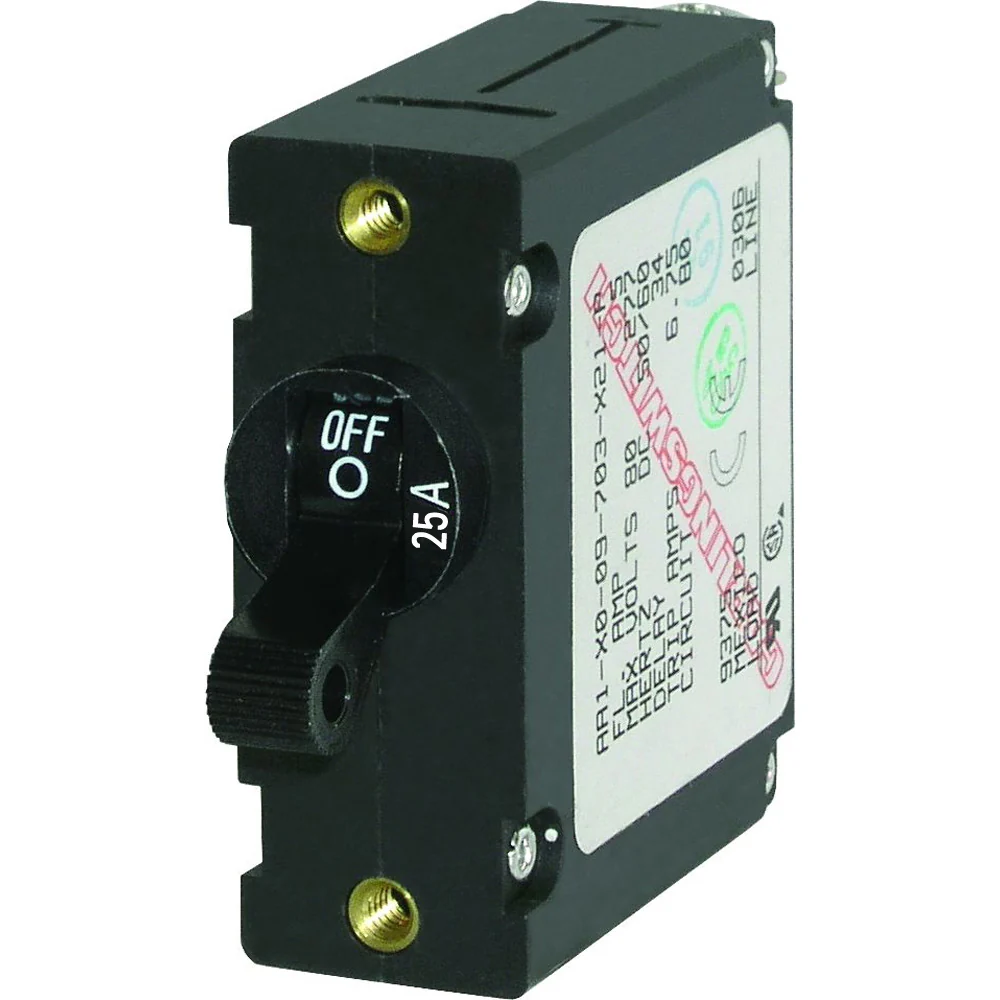

Blue Sea 7216 AC / DC Single Pole Magnetic World Circuit Breaker - 25 Amp
Enhance your vessel's electrical system with the AC/DC Single Pole Magnetic World Circuit Breaker. Engineered for marine and boating applications, this reliable circuit breaker provides superior performance and safety, ensuring your boat's electrical system operates smoothly under all conditions.
Product Details
- Part Number (PN): 7216
- Color: Black
- Amperage: 25 Amp
- Delay: Standard
Certifications
The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.
Key Features
- Industry-standard circuit breaker for Blue Sea Systems electrical panels.
- Integrates switching and circuit protection into a single device.
- Single pole Quick Trip models designed specifically for electronics protection.
- "Trip Free" design ensures the breaker cannot be held "ON" during fault current conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Maximum Voltage | 277 Volts AC / 65 Volts DC |
| Rated Switch Cycles | 10,000 @ rated amperage and voltage |
| Box Dimensions | 1" H x 3" W x 4" L |
| Weight | 0.2 lbs |
| UPC | 632085072162 |
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
