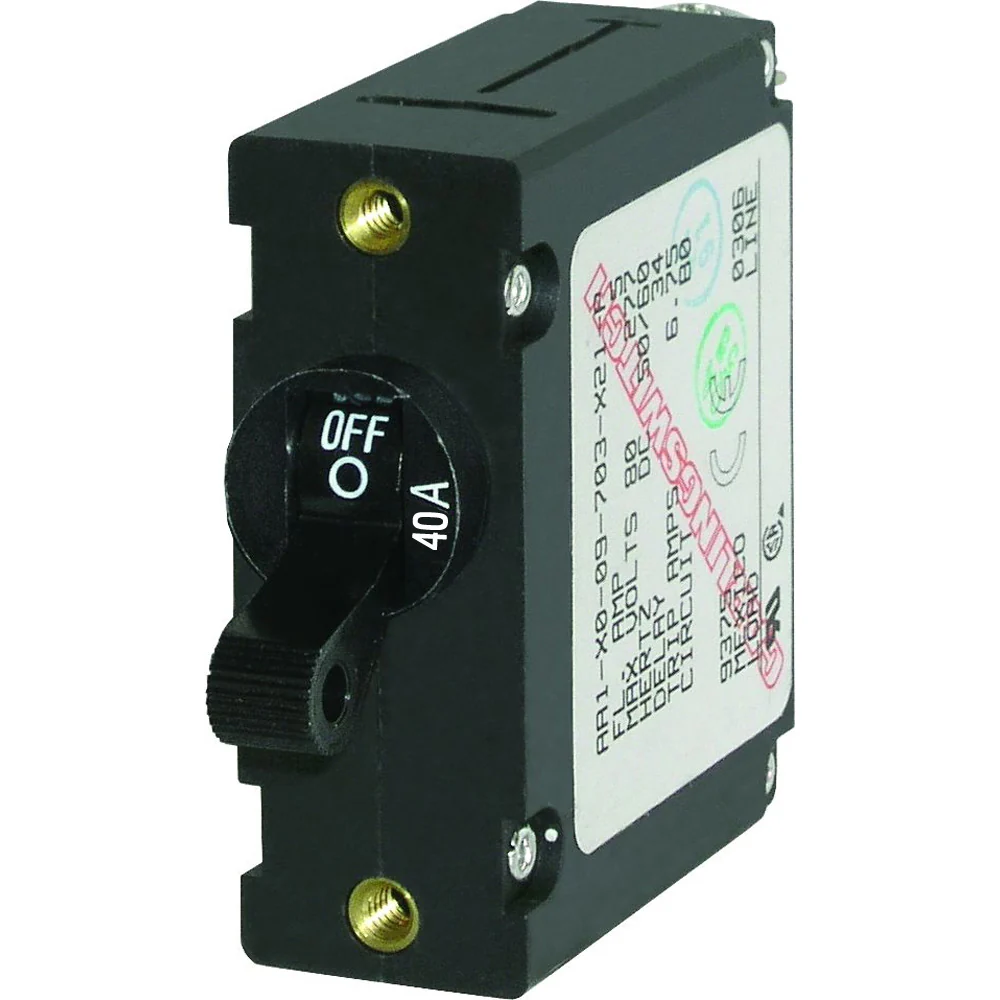

The Blue Sea Systems AC/DC Single Pole Magnetic World Circuit Breaker delivers reliable protection for your boat's electrical systems. Designed to meet rigorous marine standards, this circuit breaker ensures the safety and longevity of your marine electronics by integrating efficient switching and circuit protection in a single unit.

Key Features

• Compliant with American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized, TUV Certified, CE Marked for Europe, and CSA Certified for Canada
• Industry-standard circuit breaker for Blue Sea Systems electrical panels
• Combines switching and circuit protection into one device
• Single pole Quick Trip models specifically designed for electronics protection
• "Trip Free" design prevents the breaker from being held "ON" during fault conditions

Product Specifications

Part Number (PN)	7224
Color	Black
Amperage	40 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Box Dimensions	1" H x 2" W x 4" L
Weight	0.15 lbs
UPC	632085072247
