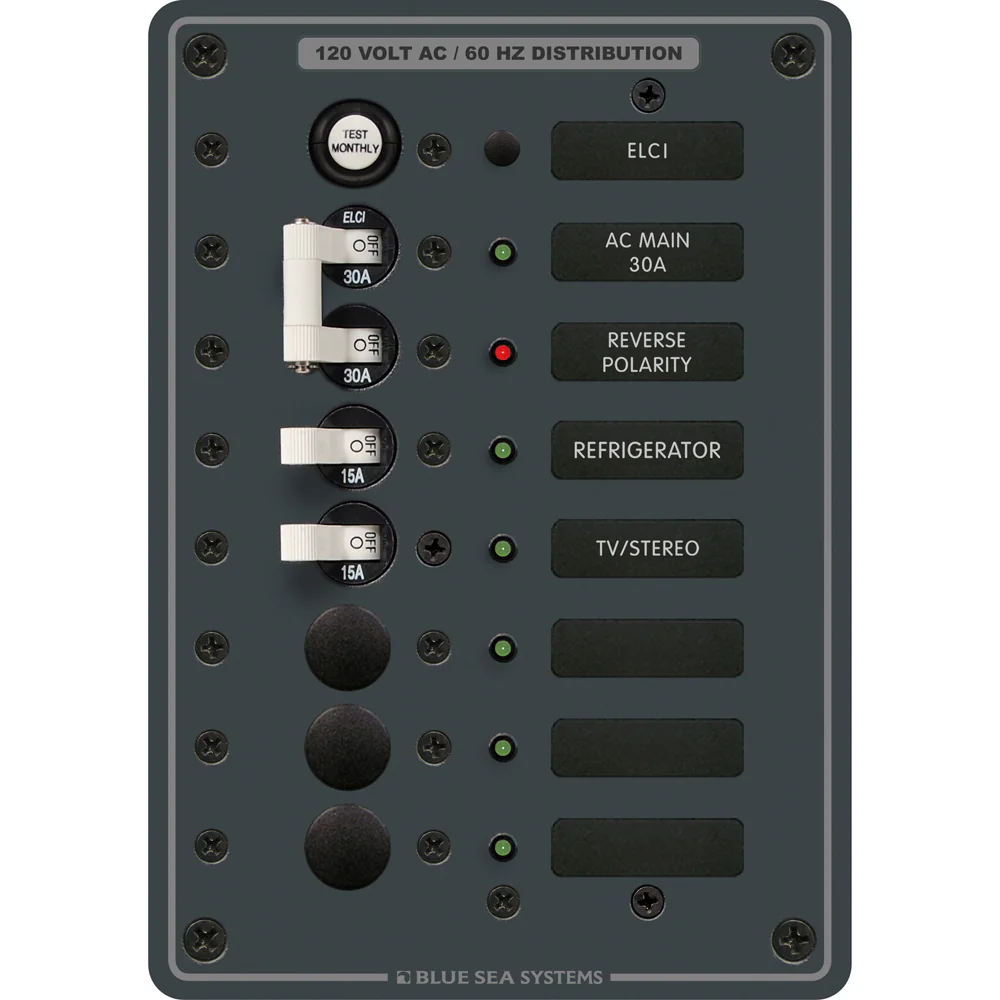

Blue Sea 8101 ELCI GFCI Panel AC 5 Position
The ELCI Main 30A Double Pole Residual Current Circuit Breaker is designed to deliver essential overcurrent and leakage protection for your boat’s shore power system. Built to comply with ABYC E-11 standards, this robust circuit breaker ensures the safety and reliability of your marine electrical setup.
Key Features
- 30A AC Residual Current Circuit Breaker with a leakage trip amperage of 30 mA
- Provides comprehensive overcurrent and leakage protection as per ABYC E-11 standards
- Red LED indicator alerts for Reverse Polarity conditions
- Backlit circuit label positions for easy identification in low-light environments
- "ON" status indicated by LED lights for clear operational monitoring
Specifications
| Positions | 5 |
|---|---|
| Nominal Voltage | 120V AC |
| Leakage Trip Amps | 30 mA |
| Height | 5.25" (133.35mm) |
| Width | 7.50" (190.5mm) |
| Depth | 3.50" (88.9mm) |
| Weight | 2.25 lb (1.02 kg) |
| AC/DC | AC |
| Max Breaker Quantity | 5 |
| Voltage | 120V |
| Box Dimensions | 5"H x 9"W x 12"L |
| Package Weight | 2.55 lb |
| UPC | 632085081010 |
Safety Information
WARNING: This product contains di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Documentation
The ELCI Main 30A Double Pole Residual Current Circuit Breaker is designed to deliver essential overcurrent and leakage protection for your boat’s shore power system. Built to comply with ABYC E-11 standards, this robust circuit breaker ensures the safety and reliability of your marine electrical setup.
Key Features
- 30A AC Residual Current Circuit Breaker with a leakage trip amperage of 30 mA
- Provides comprehensive overcurrent and leakage protection as per ABYC E-11 standards
- Red LED indicator alerts for Reverse Polarity conditions
- Backlit circuit label positions for easy identification in low-light environments
- "ON" status indicated by LED lights for clear operational monitoring
Specifications
| Positions | 5 |
|---|---|
| Nominal Voltage | 120V AC |
| Leakage Trip Amps | 30 mA |
| Height | 5.25" (133.35mm) |
| Width | 7.50" (190.5mm) |
| Depth | 3.50" (88.9mm) |
| Weight | 2.25 lb (1.02 kg) |
| AC/DC | AC |
| Max Breaker Quantity | 5 |
| Voltage | 120V |
| Box Dimensions | 5"H x 9"W x 12"L |
| Package Weight | 2.55 lb |
| UPC | 632085081010 |
Safety Information
WARNING: This product contains di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Documentation
Original: $629.99
-70%$629.99
$189.00Description
The ELCI Main 30A Double Pole Residual Current Circuit Breaker is designed to deliver essential overcurrent and leakage protection for your boat’s shore power system. Built to comply with ABYC E-11 standards, this robust circuit breaker ensures the safety and reliability of your marine electrical setup.
Key Features
- 30A AC Residual Current Circuit Breaker with a leakage trip amperage of 30 mA
- Provides comprehensive overcurrent and leakage protection as per ABYC E-11 standards
- Red LED indicator alerts for Reverse Polarity conditions
- Backlit circuit label positions for easy identification in low-light environments
- "ON" status indicated by LED lights for clear operational monitoring
Specifications
| Positions | 5 |
|---|---|
| Nominal Voltage | 120V AC |
| Leakage Trip Amps | 30 mA |
| Height | 5.25" (133.35mm) |
| Width | 7.50" (190.5mm) |
| Depth | 3.50" (88.9mm) |
| Weight | 2.25 lb (1.02 kg) |
| AC/DC | AC |
| Max Breaker Quantity | 5 |
| Voltage | 120V |
| Box Dimensions | 5"H x 9"W x 12"L |
| Package Weight | 2.55 lb |
| UPC | 632085081010 |
Safety Information
WARNING: This product contains di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
