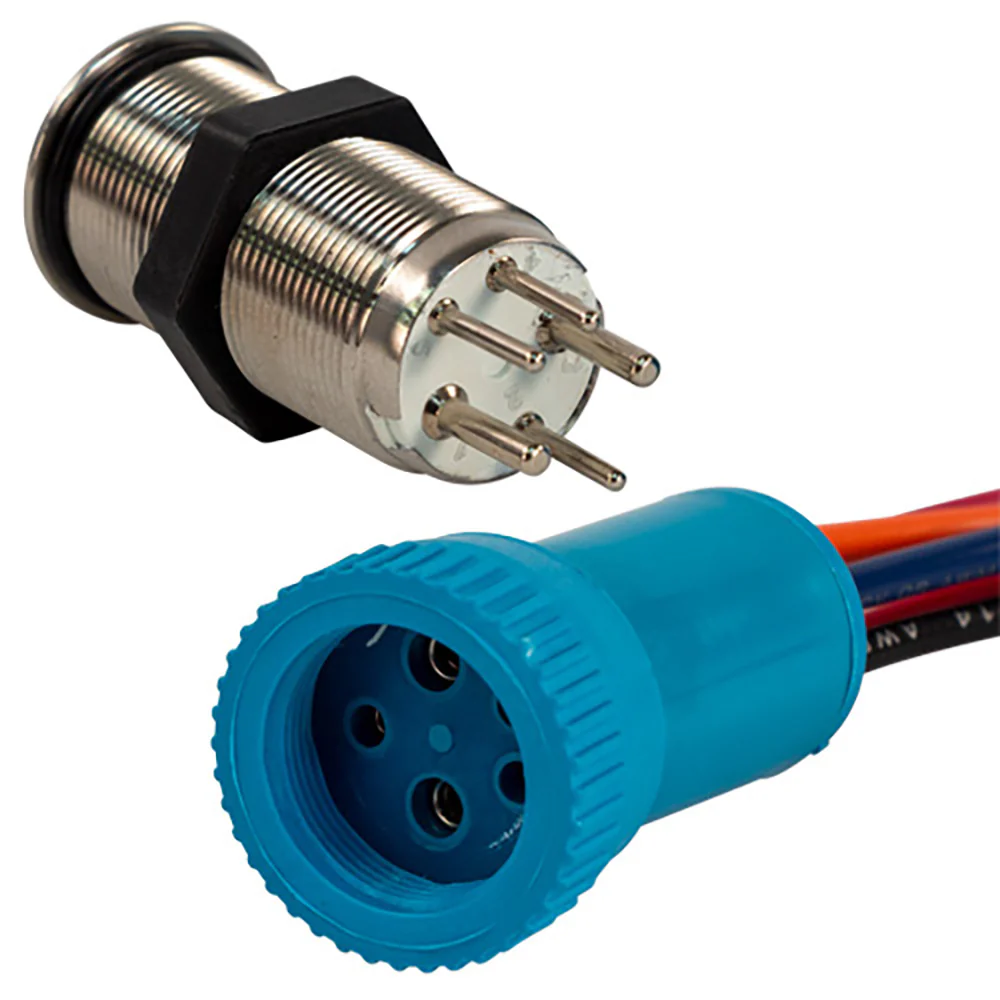

This robust 19mm Push Button Switch is expertly designed for marine and boating applications, offering reliable performance and sleek aesthetics to enhance your vessel's dashboard. Crafted with stainless-steel plating, this switch withstands the harsh marine environment while providing intuitive control for your boat’s essential systems.

Enhanced Visibility and Durability

Equipped with blue and red LED indicators, this push button switch ensures clear visibility in low-light conditions, allowing for effortless operation during nighttime voyages. The blue light signifies the switch is off, while the red light confirms activation, providing immediate visual feedback for safe and efficient control.

Waterproof and Marine-Grade Construction

Designed to endure the demanding conditions of marine environments, the switch boasts an IP69K waterproof rating. The combination of the stainless-steel plated body and the included gasket ensures complete protection against water ingress, making it ideal for use in wet and humid conditions commonly found on boats.

Key Features

• 19mm Stainless-Steel Plated Metal Button
• IP69K Waterproof Rating
• Blue/Red LED Indicators for Clear Visibility
• 4-Foot Lead for Flexible Installation
• Standard Off-On Contact

Technical Specifications

Function	Off-On (Standard Contact)
LED Indicators	Blue/Red
Rear Mark Page	Red Dot
Switch Rating	15A / 12 – 24VDC
Material	Stainless Steel
Mechanical Life	50,000 Cycles
Electrical Life	10,000 Cycles

Easy Installation for Marine Applications

Installing the 19mm Push Button Switch on your boat is straightforward:

1. Drill a 19mm hole into a suitable location on any material up to 6mm thick, ensuring accessibility and visibility on your dashboard.
2. Connect the three main contacts of the button, which are color-coded for safety and ease of use, ensuring a secure and reliable electrical connection.
3. Attach the two LED contacts to power the indicator lights, providing immediate visual status of the switch’s function.

Refer to the Quick Guide (PDF) for detailed installation instructions.

Why Choose Our Push Button Switch for Your Boat

Optimized for marine environments, this push button switch combines durability, visibility, and ease of use, making it an essential component for any boating dashboard. Whether controlling navigation lights, bilge pumps, or other critical systems, its reliable performance ensures your boat operates smoothly and safely.
