Enhance your vessel's control interface with our 19mm Push Button Switch, specifically engineered for marine and boating applications. Constructed with durable stainless-steel plating, this switch withstands the corrosive marine environment while maintaining a sleek, modern appearance. Its IP69K waterproof rating ensures maximum protection against water ingress, making it ideal for use in wet conditions. The switch features a reliable Off/(On) momentary contact mechanism, providing precise control for various onboard systems. The integrated dual-color LED backlighting, with blue indicating standby and red confirming active status, offers excellent visibility both day and night, enhancing safety and ease of use.

Features:

• Marine-Grade Construction: Stainless-steel plated for resistance against saltwater corrosion.
• Waterproof Protection: IP69K rating ensures durability in harsh marine environments.
• Dual-Color LED: Blue LED for standby mode and red LED for active status, improving visibility.
• Reliable Operation: Off/(On) momentary contact for precise control of marine electronics.

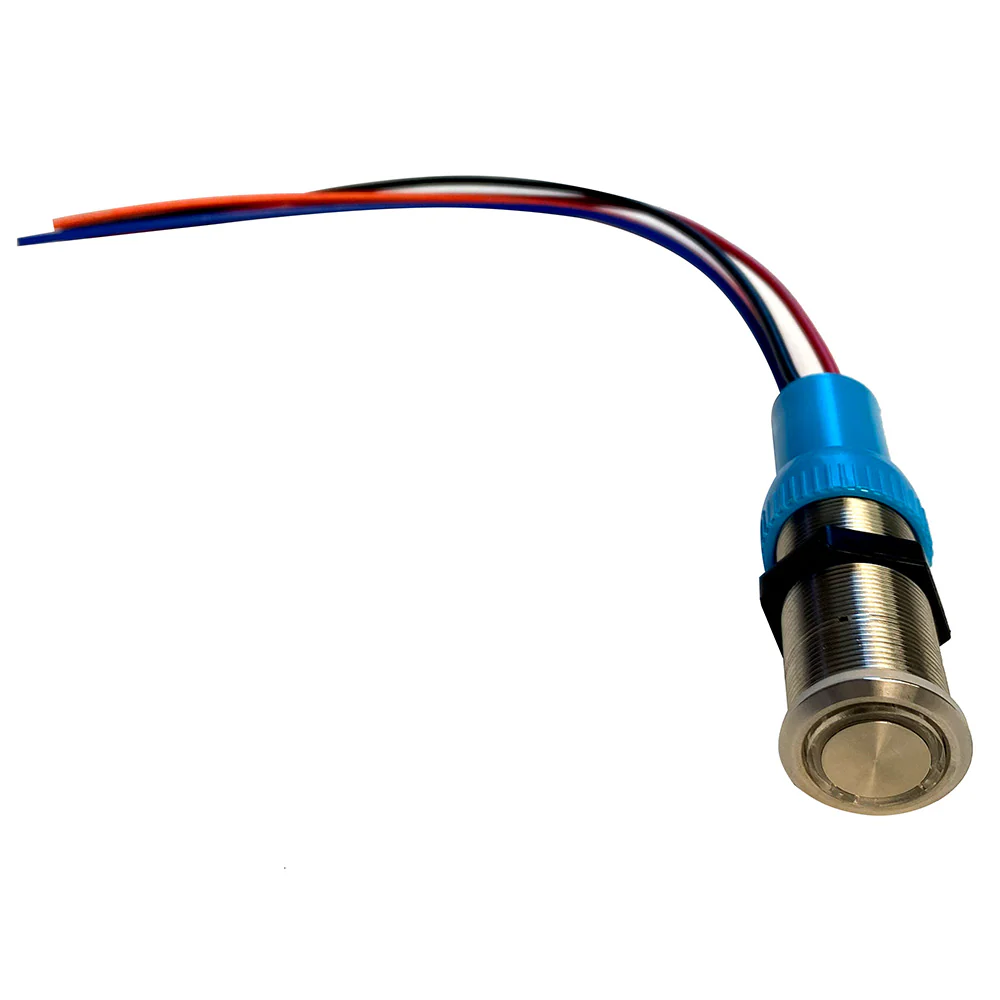

• Flexible Installation: 1-foot lead allows for easy wiring and placement on your dashboard or control panel.

Specifications:

Function	Off/(On) Momentary Contact
LED Colors	Blue/Red
Rear Mark Page	Green dot
Switch Rating	15A / 12 – 24 VDC
Material	Stainless Steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles

Installation:

1. Drill a 19mm hole into any material up to 6mm thick, suitable for your marine dashboard or console.

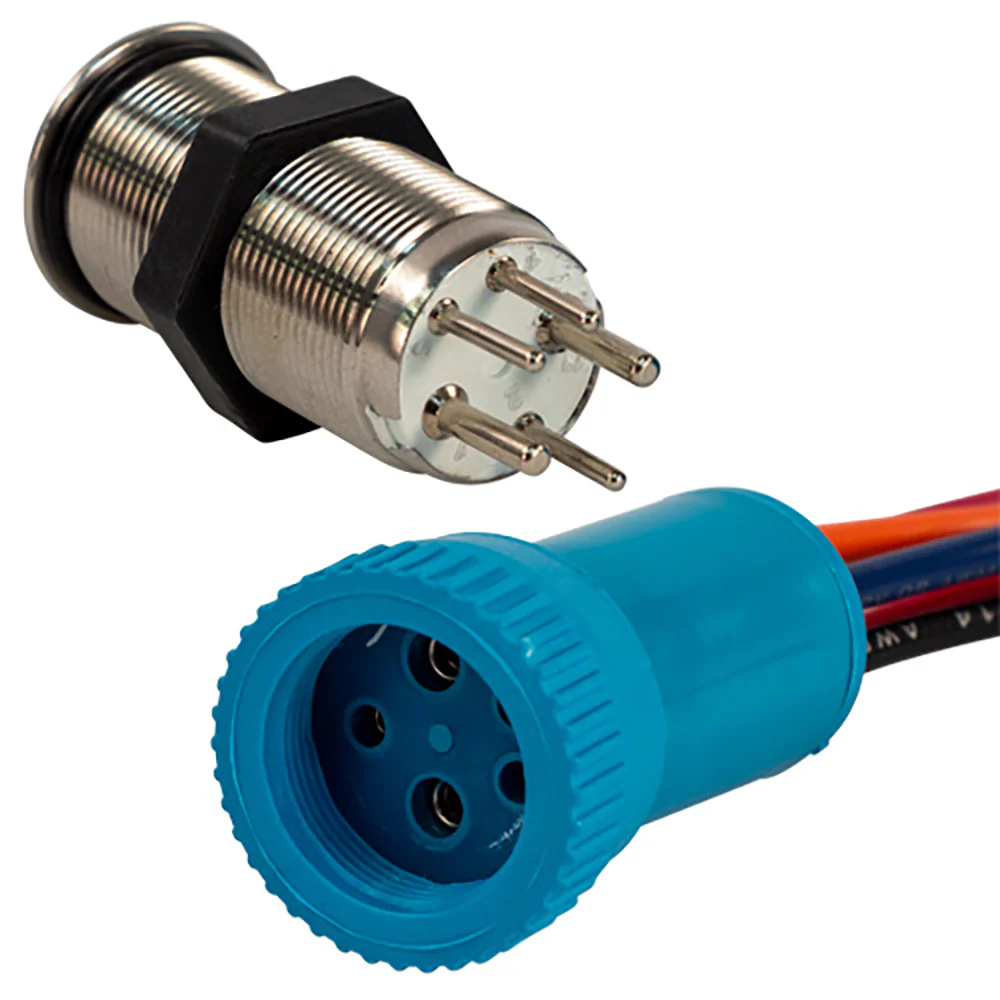

2. Connect the 3 color-coded contacts for the button to ensure correct and safe wiring of your marine systems.
3. Attach the 2 LED contacts to enable the dual-color backlighting for enhanced visibility.

Quick Guide (pdf)
