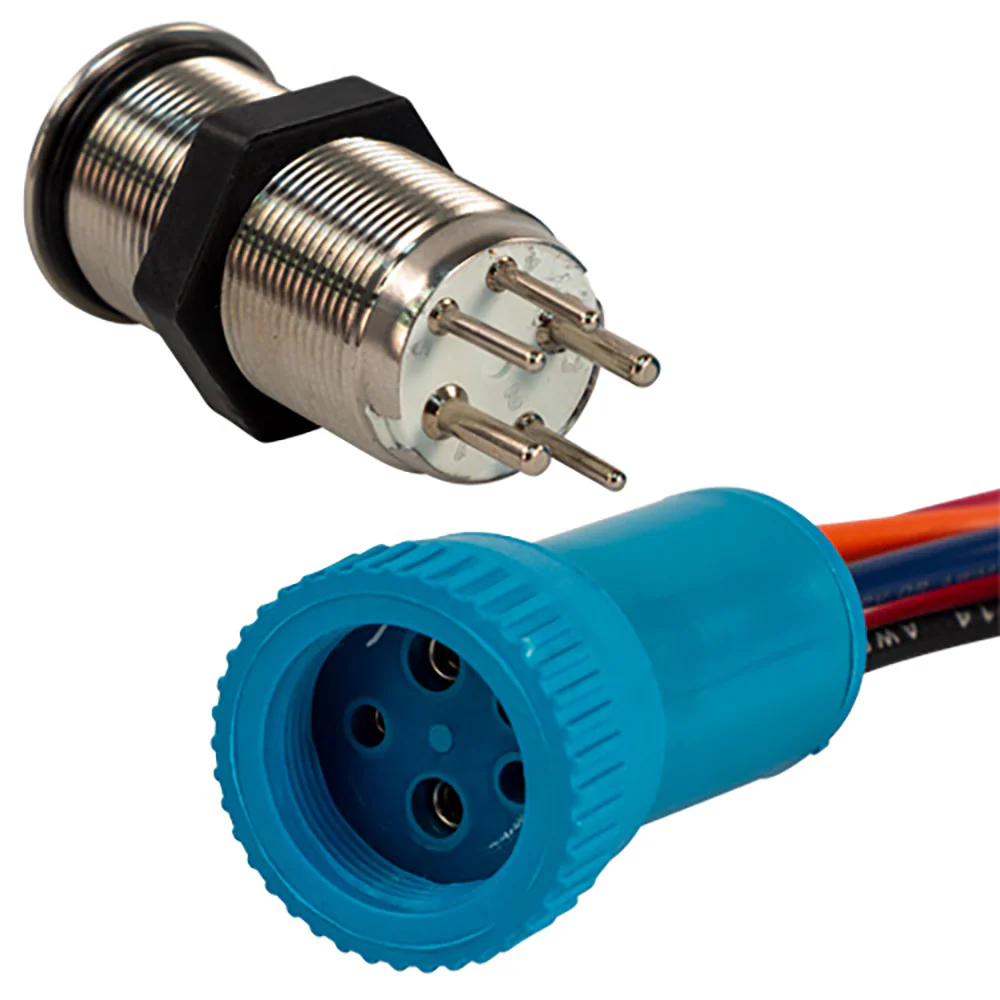

A high-quality stainless-steel push button switch designed specifically for marine and boating applications, providing reliable performance and enhanced visibility in harsh marine environments. Featuring a double momentary contact system with customizable LED indicators and a robust waterproof rating, this switch is the ideal addition to any boat's dashboard.

Features

• Double Momentary Contact: Off/(On)/(On) configuration for versatile control
• LED Indicators: Blue, Green, and Red LEDs for clear status indication
• Waterproof Design: IP69K rated to ensure durability in wet conditions
• Stainless-Steel Construction: Corrosion-resistant plating suitable for marine environments

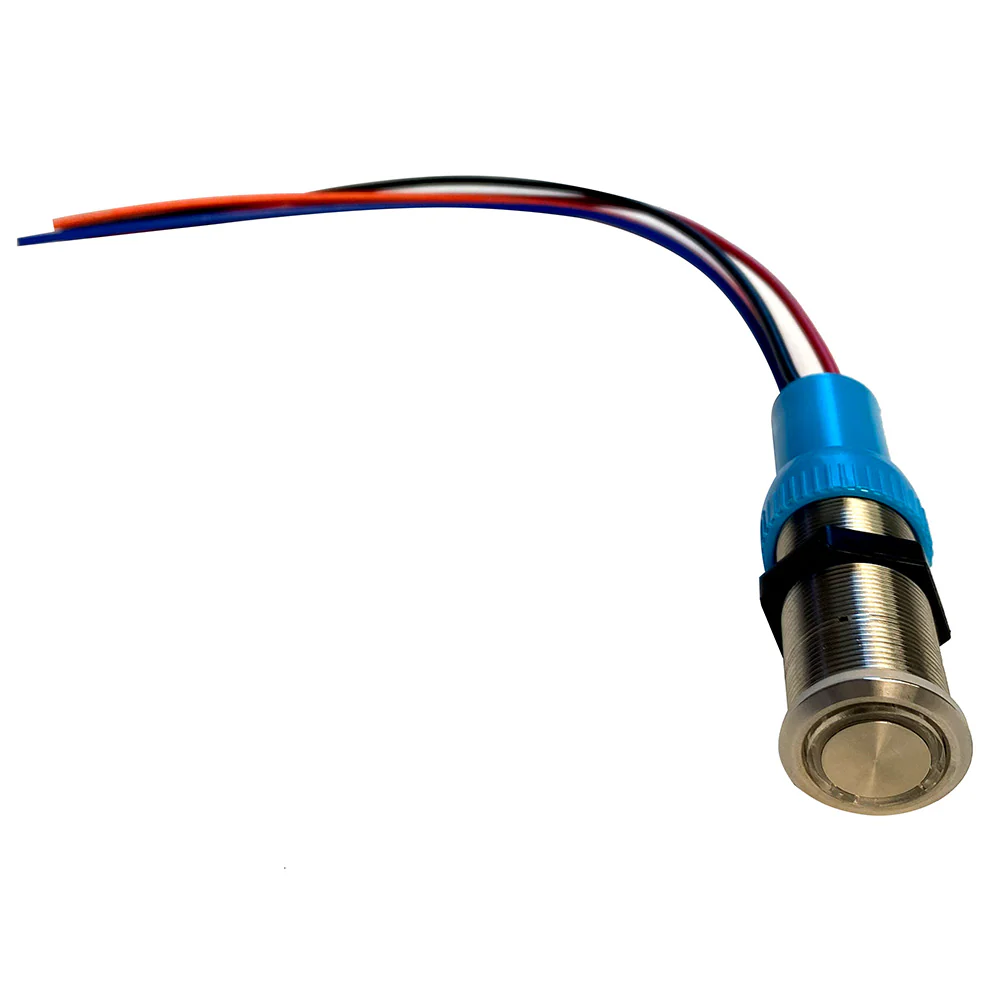

• 1-Foot Lead: Convenient length for flexible installation
• Backlit LEDs: Enhanced visibility during nighttime operations

Specifications

Function	Off/(On)/(On) Double Momentary Contact
LED Colors	Off/On: Blue/Green; 2nd On: Red
Rear Mark Page	Green dot with a line
Switch Rating	15A / 12 – 24VDC
Material	Stainless Steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles

Installation

1. Drill a 19mm hole into any material up to 6mm thick where you want to mount the switch.
2. Insert the switch and secure it in place using the provided gasket to ensure a waterproof seal.
3. Connect the three button contacts, which are color-coded for safety and ease of installation.
4. Attach the two LED contacts to provide clear illumination and status indication.

Download the Quick Guide (PDF)
