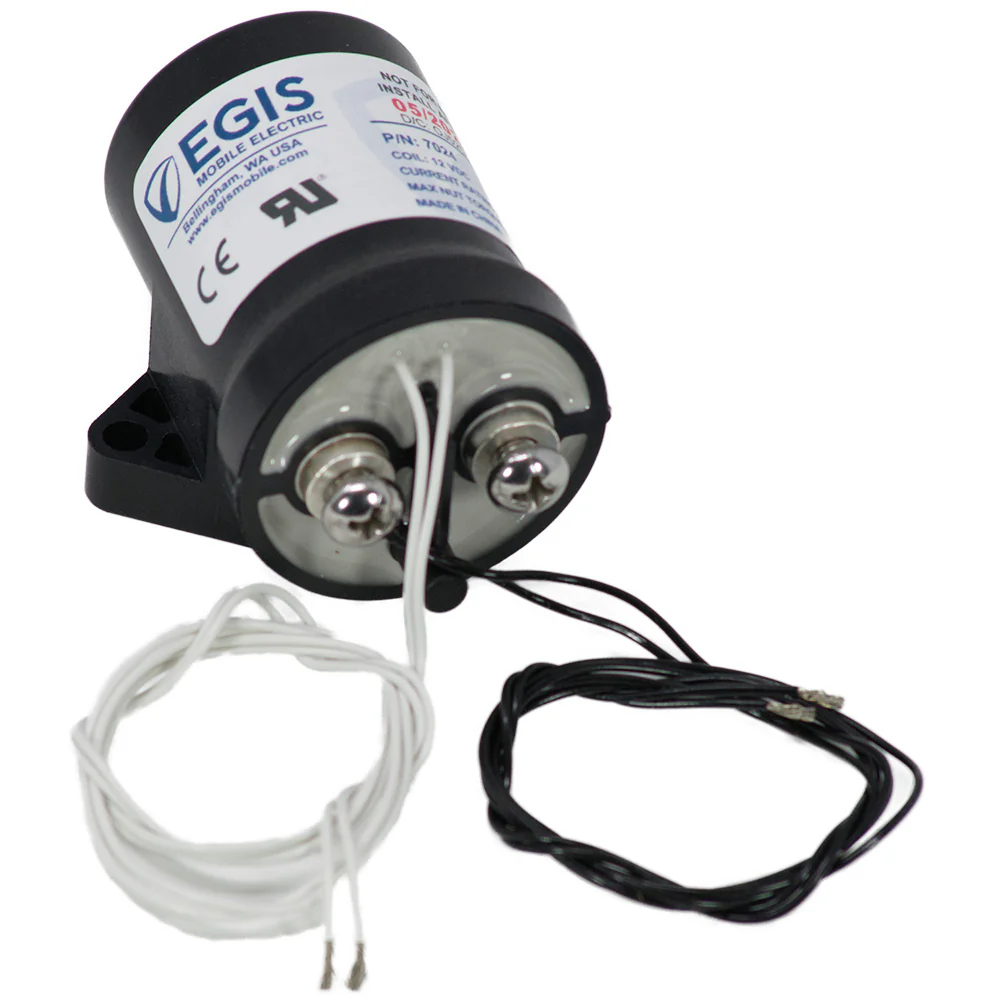

Egis Contactor 100A, 12V w/Aux Contacts
The Egis 100A, 12V Contactor with Auxiliary Contacts is an essential component for marine and boating electrical systems. Designed to optimize installation efficiency, this robust contactor minimizes cable runs and supports remote switching of high-ampere engines and auxiliary loads, making it ideal for both recreational and commercial vessels.
Applications
- Reliable performance throughout the vessel's lifespan with a hermetically sealed design that resists dust and moisture intrusion.
- Versatile voltage support, accommodating 12V or 24V DC control systems and handling higher switching voltages up to 48V and beyond.
- Enhanced operational monitoring with optional auxiliary contacts for remote status indication, ensuring you always know the relay's on/off state.
Features
- Explosion-Proof Ignition Protection: Safely install in closed compartments where explosive gases may be present.
- High Electrical Switching Endurance: Achieves up to 6,000 cycles at 100A / 350V and 100,000 cycles at 100A / 14V, ensuring long-term reliability.
- Exceptional Interrupt Current Capability: Capable of safely opening in locked starter situations, handling up to 1,250 A @ 14 Vdc.
- Durable Construction: Features a sealed enclosure, high-temperature materials suitable for engine compartments, and stainless steel self-locking hardware for added longevity.
- Industry-Leading Warranty: Comes with a 4-year warranty, reflecting confidence in its performance and durability.
Specifications
| Parameter | Specification |
|---|---|
| Continuous Current | 100 Amps |
| Operation Control Voltage | 8-16 VDC |
| Ingress Protection | IP67/IP69K |
| Ignition Protection | ISO-8846 / UL 1500 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
Focal Features
Sealed Enclosure
Provides complete protection against dust and moisture, ensuring reliable operation in the harsh marine environment. The high-temperature rating makes it suitable for all installation locations on your vessel.
18-8 Stainless Steel Self-Locking Hardware
Constructed from corrosion-resistant stainless steel, the self-locking hardware guarantees a secure and long-lasting connection, even in the demanding conditions of marine applications.
Easy Mounting
Equipped with reinforced mounting holes, this contactor allows for quick and secure installation, simplifying the setup process for marine electricians.
Remote Status Support
Optional auxiliary contacts enable remote monitoring of the contactor's status, providing convenience and added safety by allowing you to verify the on/off state from a distance.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
