Humminbird XM 9 HW MDI T Transom Mount Transducer
The XM 9 HW MDI T Transom Mount Transducer is a top-tier sonar device crafted for marine enthusiasts who demand superior underwater imaging and dependable performance. Featuring advanced MEGA Down Imaging+ and Dual Spectrum CHIRP technologies, this transducer delivers crystal-clear sonar views, enhancing your boating adventures with precision and reliability.
Key Features
- Advanced Sonar Capabilities: Supports MEGA Imaging+, Dual Spectrum CHIRP 2D Sonar, operating at 455kHz and 800kHz frequencies with a CHIRP range of 150-220kHz.
- Durable Construction: Built with a rugged composite design to withstand harsh marine environments.
- Integrated Temperature Sensor: Provides accurate water temperature readings for better fish finding and navigation.

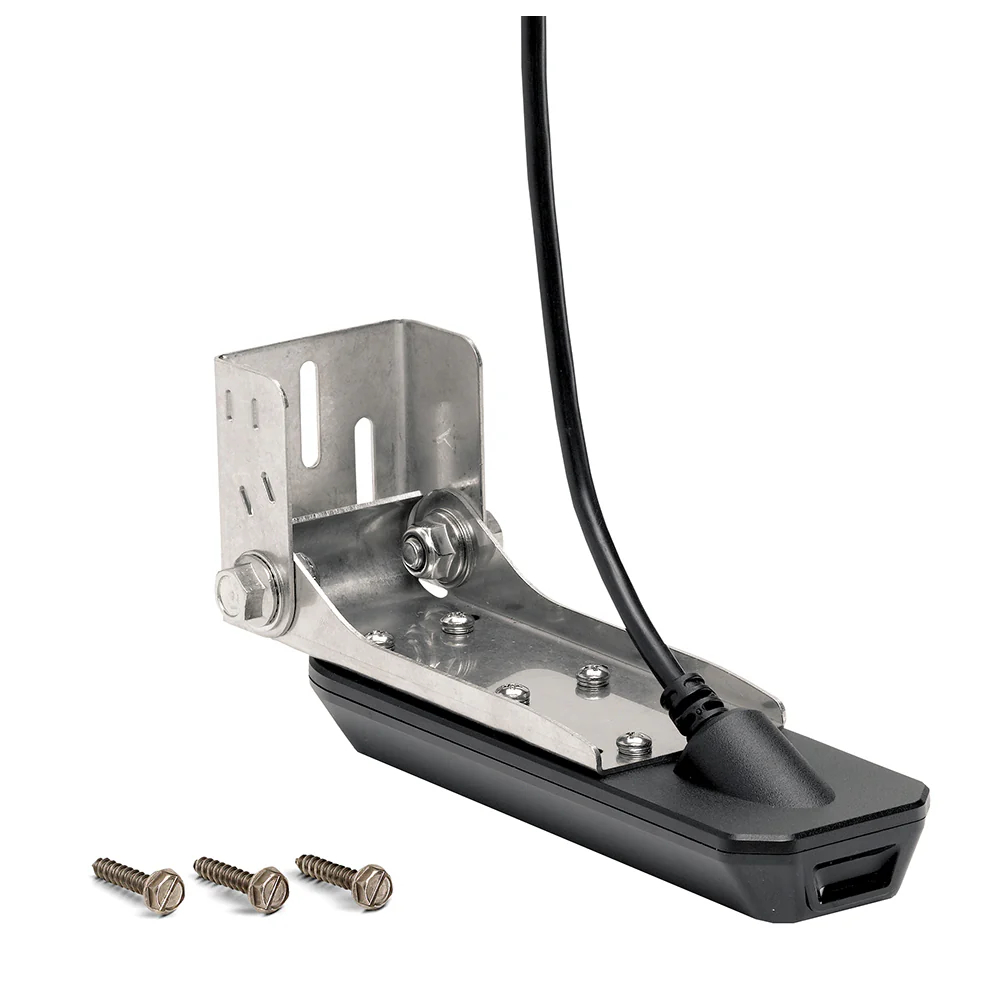

- Impact-Release Mounting Bracket: Ensures secure attachment while allowing the transducer to release upon impact, preventing damage.

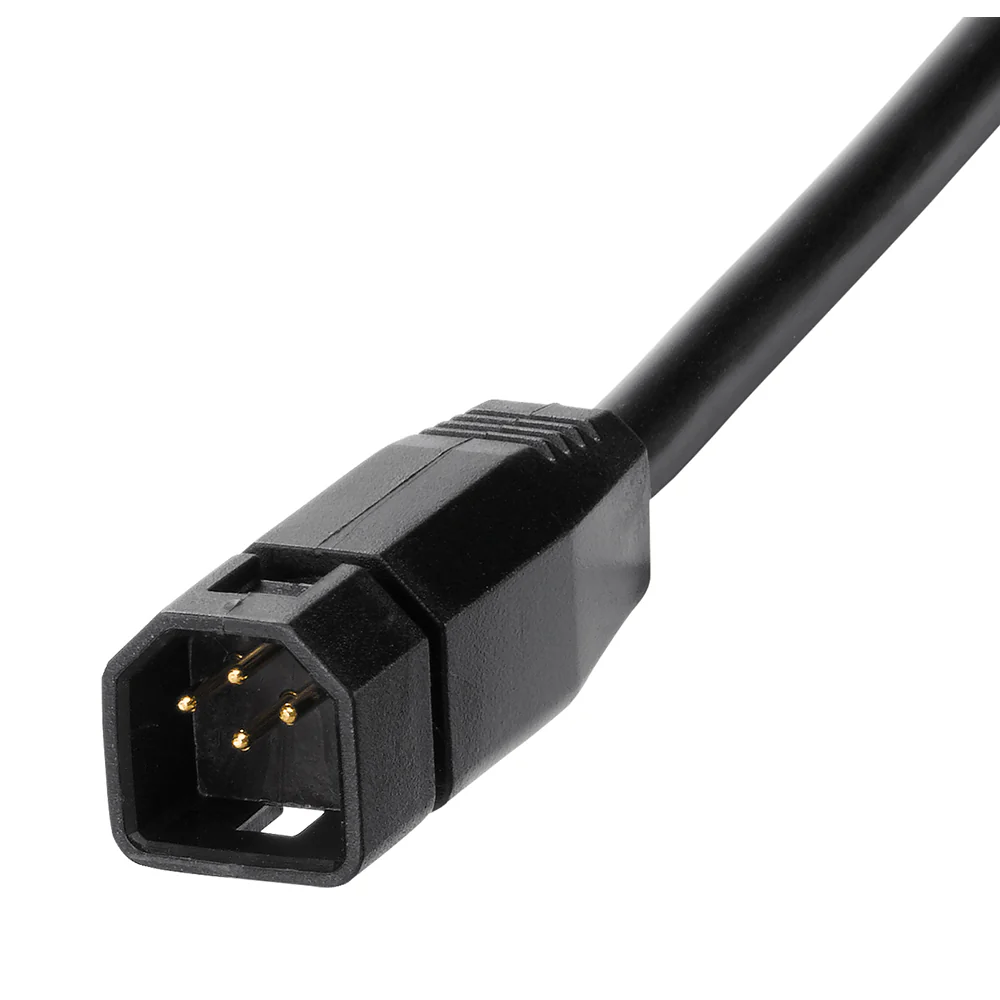

- Generous Cable Length: Equipped with a 20-foot high-quality cable for flexible installation options.
Compatibility
The XM 9 HW MDI T Transom Mount Transducer is fully compatible with the following Humminbird products:
- HELIX 8 G3N Series MEGA DI+ and MEGA SI+
- HELIX 9 G3N Series MEGA DI+ and MEGA SI+
- HELIX 10 G3N Series MEGA DI+ and MEGA SI+
- HELIX 12 G3N Series MEGA DI+ and MEGA SI+
Sonar Specifications
Dual Spectrum CHIRP
| Mode | Frequency Range |
|---|---|
| Full | 150-220 kHz |
| Narrow | 180-240 kHz |
| Wide | 140-200 kHz |
Maximum Depth: 1200ft (365m)
Down Imaging
| Frequency | Range | Max Depth |
|---|---|---|
| 455kHz | 440-500 kHz | 400ft (122m) |
| 800kHz | 790-850 kHz | 125ft (38m) |
| MEGA DI+ | 1075-1150 kHz | 200ft (61m) |
Technical Specifications
| Temperature Sensor | Yes |
| Speed Included | No |
| Pins | 7 |
| Mounting Style | Transom |
| Imaging | Standard/Down |
| CHIRP | High Wide |
| Cable Length | 20' |
| Box Dimensions | 7"H x 8"W x 10"L |
| Weight | 2.25 lbs |
| UPC | 082324053207 |
Warranty
We stand behind the quality of our products. The XM 9 HW MDI T Transom Mount Transducer comes with a 1-Year Limited Warranty, ensuring your investment is protected.
Safety Information
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Resources
You can access the Owner's Manual (PDF) for detailed installation instructions and product information.
