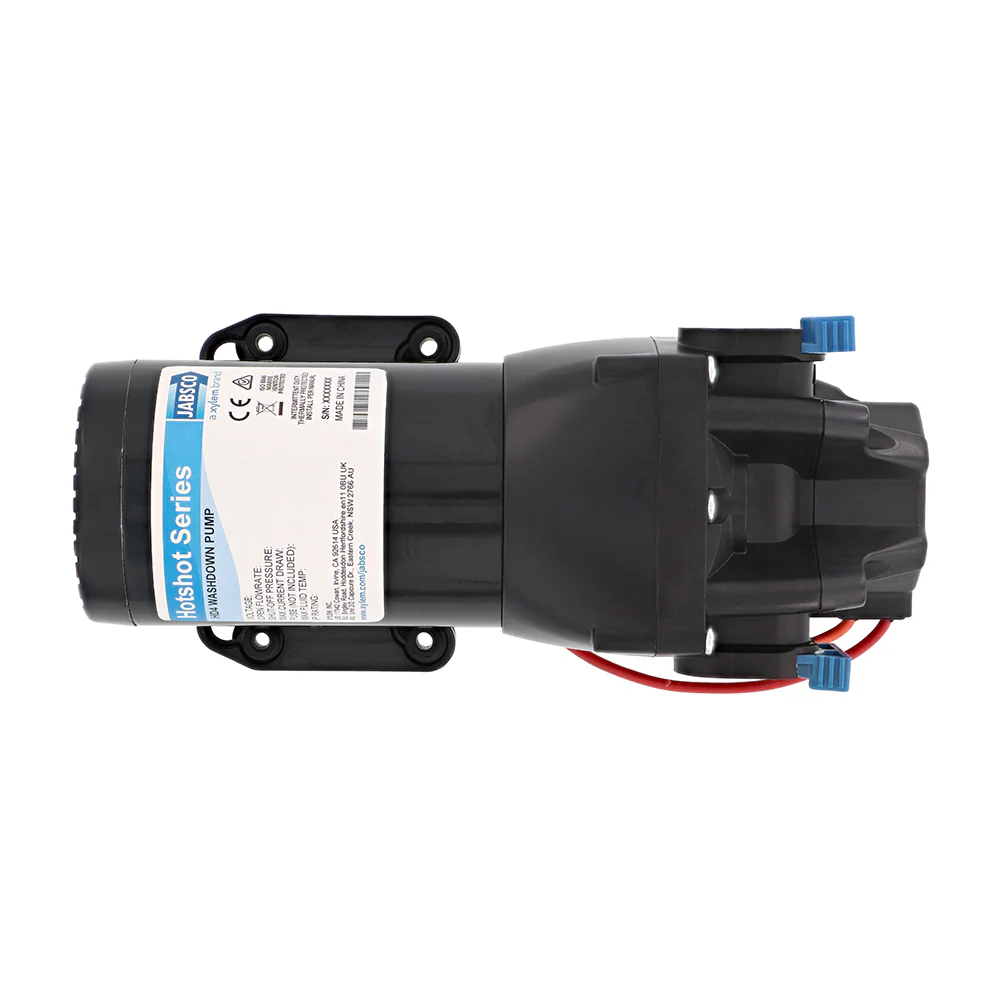

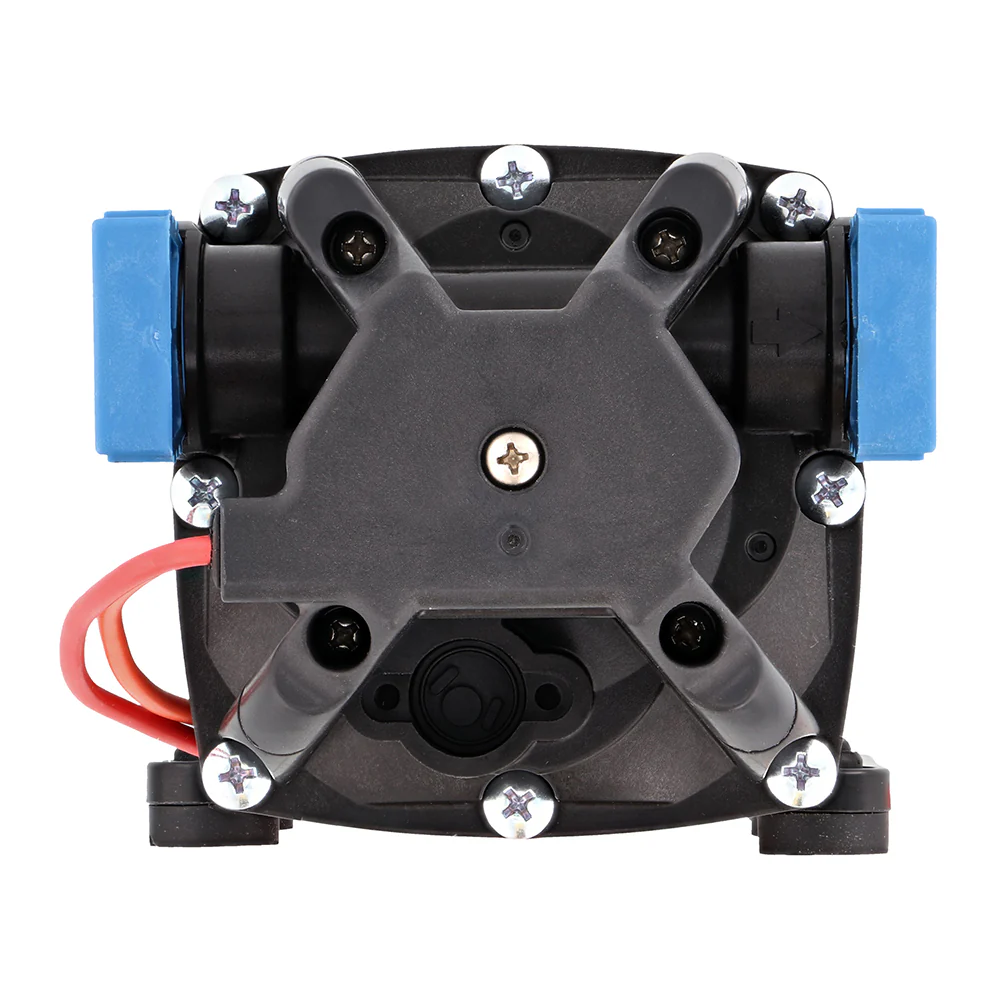

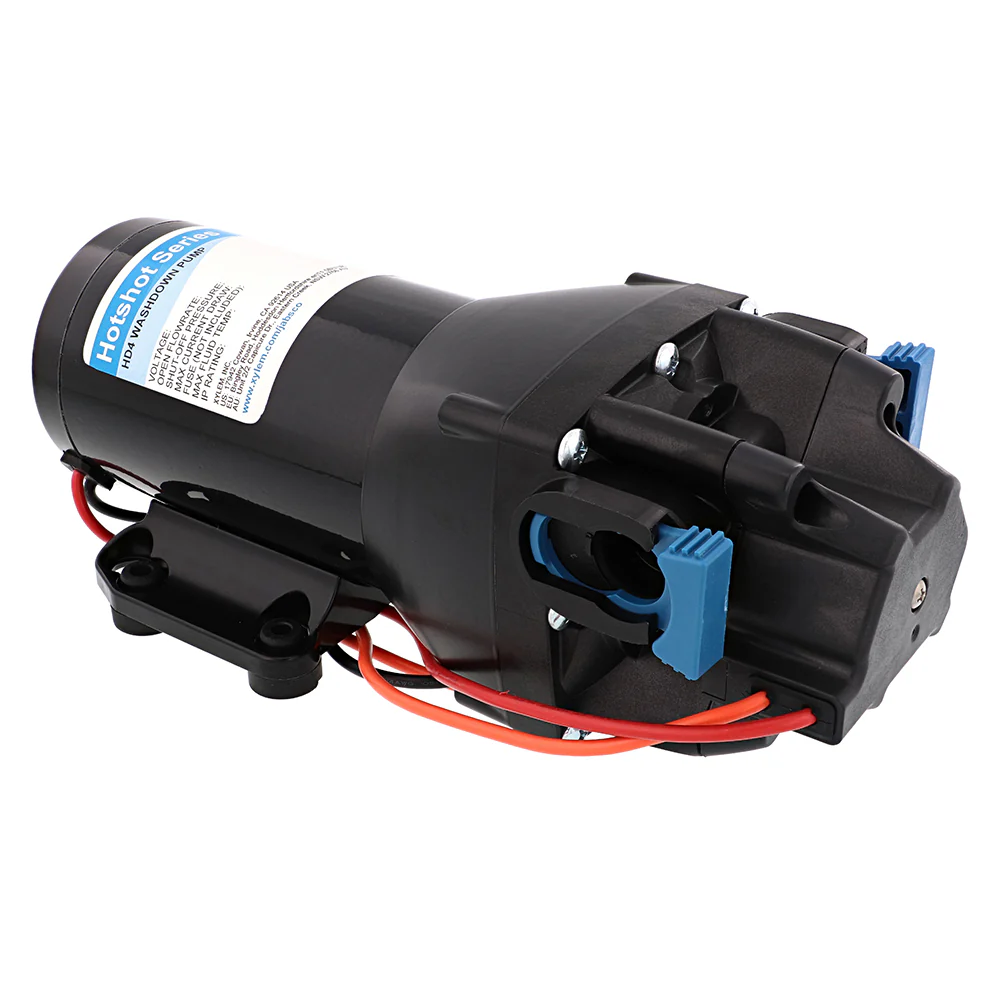

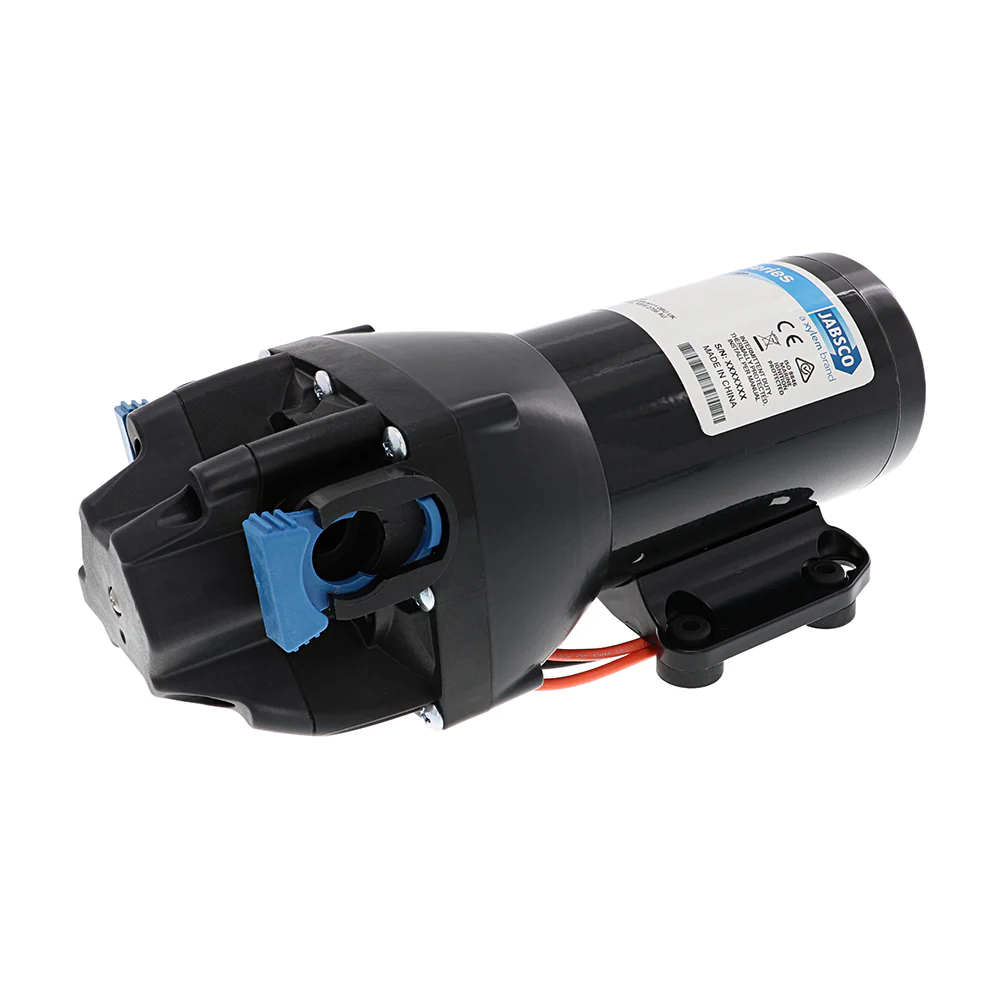

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 24V - 4 GPM - 60 PSI
Experience unparalleled performance and reliability on the water with the HotShot HD4 Heavy Duty Washdown Pump. Engineered specifically for marine applications, this 24V pump delivers 4 GPM at 60 PSI, ensuring your boat's deck remains spotless even in the toughest conditions.
Product Features
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy-duty motors and cast aluminum lower housings for extended life, even under high pressure
- Efficient and quiet operation minimizes noise on board
- Integrated, sealed pressure switch enables on-demand operation
- Self-priming capability allows for versatile installation options
- Can run dry without sustaining damage, adding to its reliability
- Quick connect ports facilitate easy installation, servicing, and maintenance
- Vibration-dampening mounting feet reduce operational noise and wear
- Full kit versions available include a 25' (7.6m) hose coil for immediate use
Technical Specifications
| Parameter | Details |
|---|---|
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7ft min (2.1m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Volts | 24V |
| Max PSI | 60 |
| Gallons Per Minute | 4 GPM |
| Box Dimensions | 6"H x 9"W x 18"L |
| Weight | 8.85 lbs |
| UPC | 671880841931 |

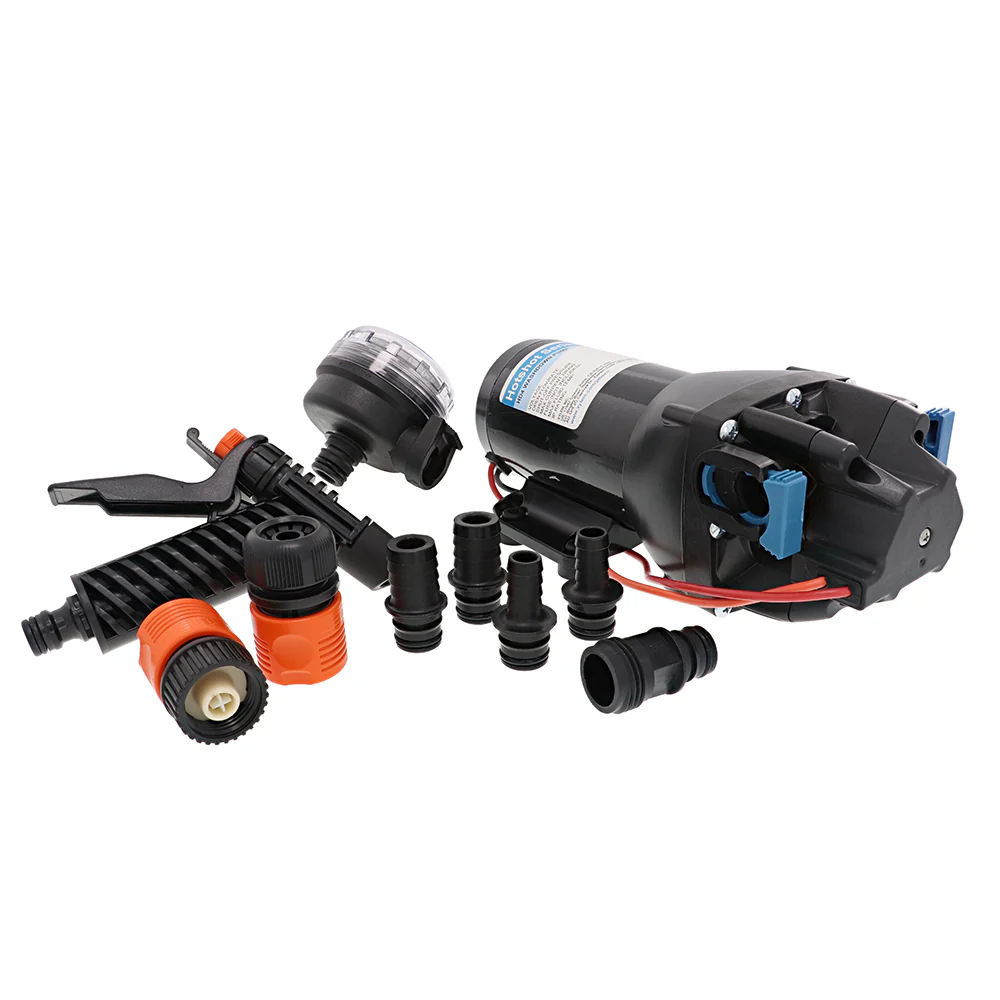

Fittings & Accessories
- Quick Connect straight hosebarb and GHT fittings (size varies by model)
- 90° 20 mesh Quick Connect strainer
- Trigger nozzle & Quick Connect hose adapters
- Kit version includes a 25' HoseCoil
Safety Warning
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Additional Information
Experience unparalleled performance and reliability on the water with the HotShot HD4 Heavy Duty Washdown Pump. Engineered specifically for marine applications, this 24V pump delivers 4 GPM at 60 PSI, ensuring your boat's deck remains spotless even in the toughest conditions.
Product Features
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy-duty motors and cast aluminum lower housings for extended life, even under high pressure
- Efficient and quiet operation minimizes noise on board
- Integrated, sealed pressure switch enables on-demand operation
- Self-priming capability allows for versatile installation options
- Can run dry without sustaining damage, adding to its reliability
- Quick connect ports facilitate easy installation, servicing, and maintenance
- Vibration-dampening mounting feet reduce operational noise and wear
- Full kit versions available include a 25' (7.6m) hose coil for immediate use
Technical Specifications
| Parameter | Details |
|---|---|
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7ft min (2.1m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Volts | 24V |
| Max PSI | 60 |
| Gallons Per Minute | 4 GPM |
| Box Dimensions | 6"H x 9"W x 18"L |
| Weight | 8.85 lbs |
| UPC | 671880841931 |
Fittings & Accessories
- Quick Connect straight hosebarb and GHT fittings (size varies by model)
- 90° 20 mesh Quick Connect strainer
- Trigger nozzle & Quick Connect hose adapters
- Kit version includes a 25' HoseCoil
Safety Warning
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Additional Information
Original: $282.99
-70%$282.99
$84.90Description
Experience unparalleled performance and reliability on the water with the HotShot HD4 Heavy Duty Washdown Pump. Engineered specifically for marine applications, this 24V pump delivers 4 GPM at 60 PSI, ensuring your boat's deck remains spotless even in the toughest conditions.
Product Features
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy-duty motors and cast aluminum lower housings for extended life, even under high pressure
- Efficient and quiet operation minimizes noise on board
- Integrated, sealed pressure switch enables on-demand operation
- Self-priming capability allows for versatile installation options
- Can run dry without sustaining damage, adding to its reliability
- Quick connect ports facilitate easy installation, servicing, and maintenance
- Vibration-dampening mounting feet reduce operational noise and wear
- Full kit versions available include a 25' (7.6m) hose coil for immediate use
Technical Specifications
| Parameter | Details |
|---|---|
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7ft min (2.1m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Volts | 24V |
| Max PSI | 60 |
| Gallons Per Minute | 4 GPM |
| Box Dimensions | 6"H x 9"W x 18"L |
| Weight | 8.85 lbs |
| UPC | 671880841931 |
Fittings & Accessories
- Quick Connect straight hosebarb and GHT fittings (size varies by model)
- 90° 20 mesh Quick Connect strainer
- Trigger nozzle & Quick Connect hose adapters
- Kit version includes a 25' HoseCoil
Safety Warning
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
