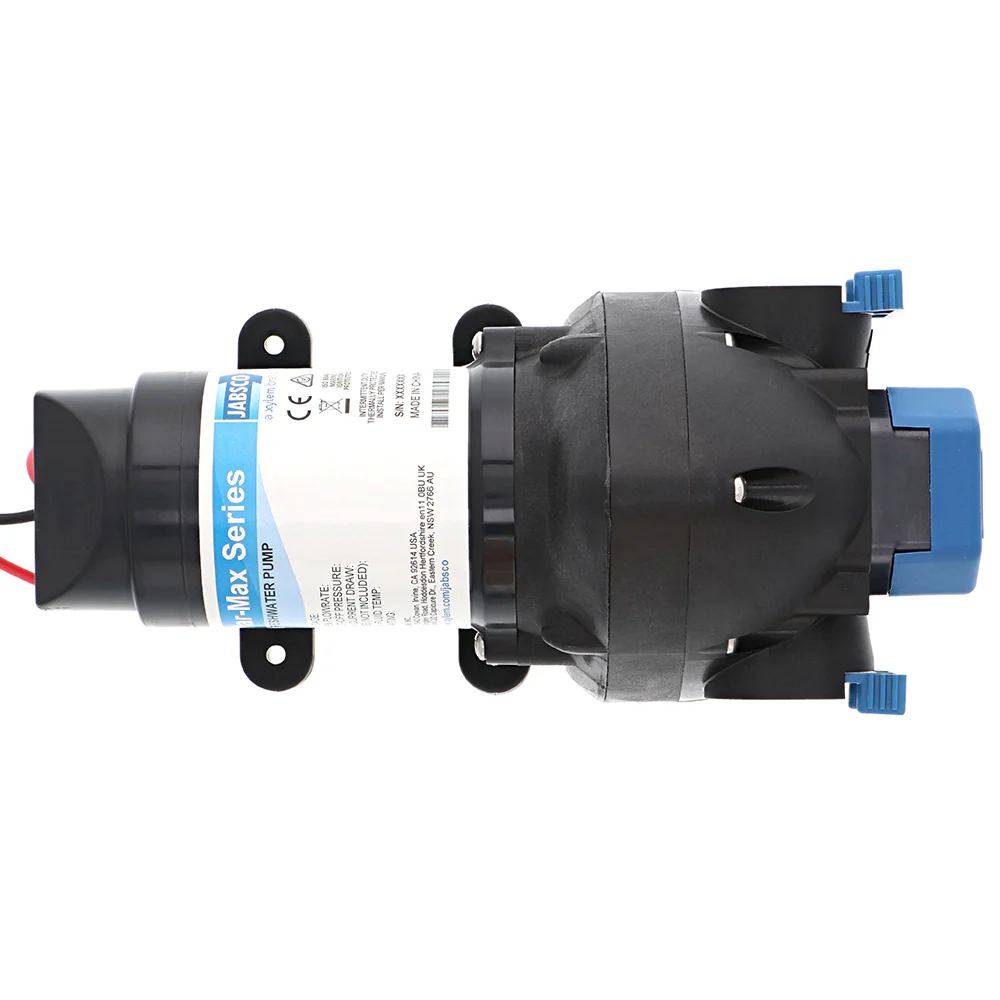

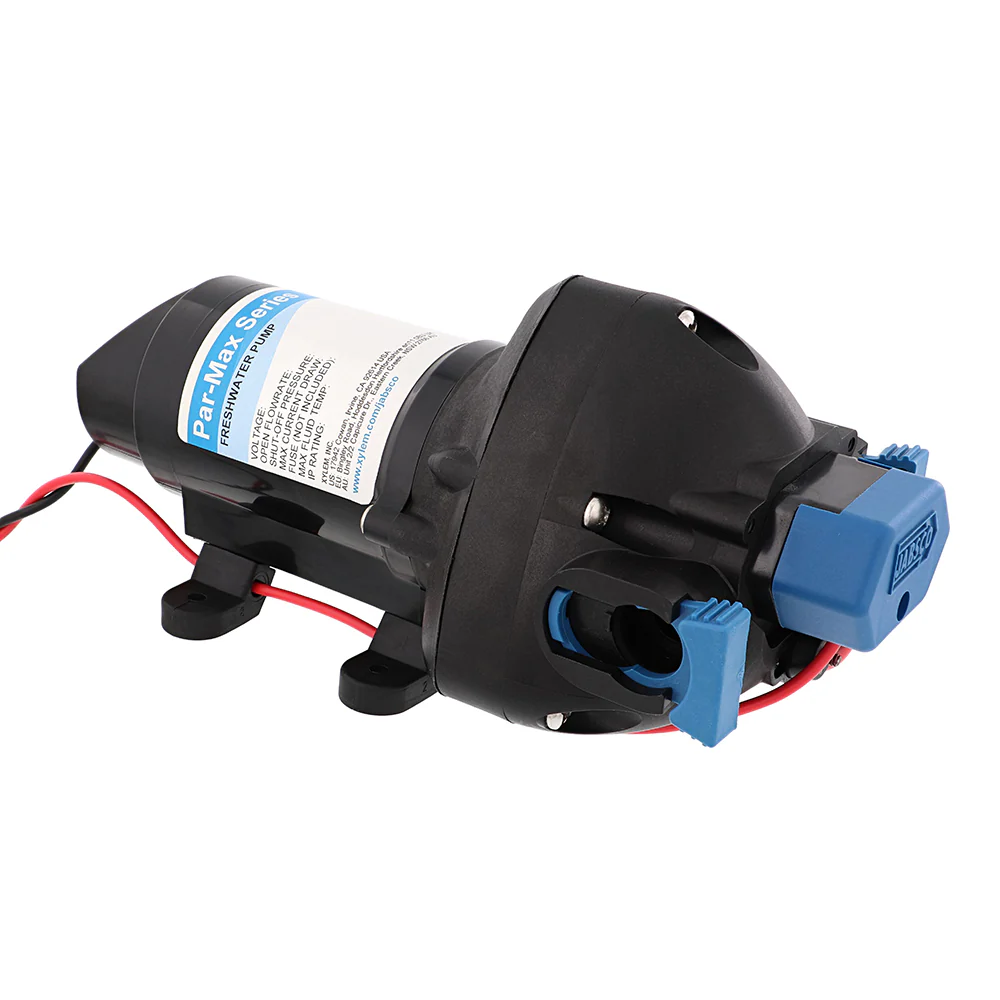

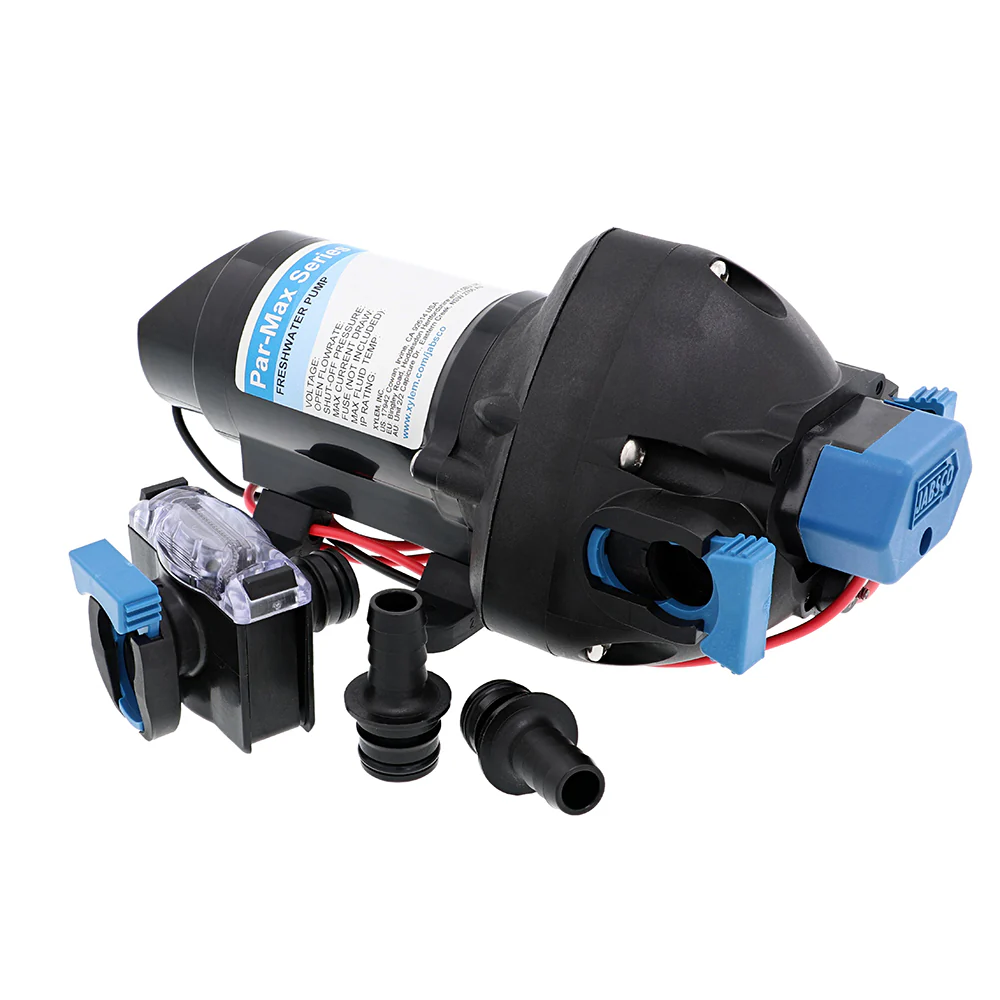

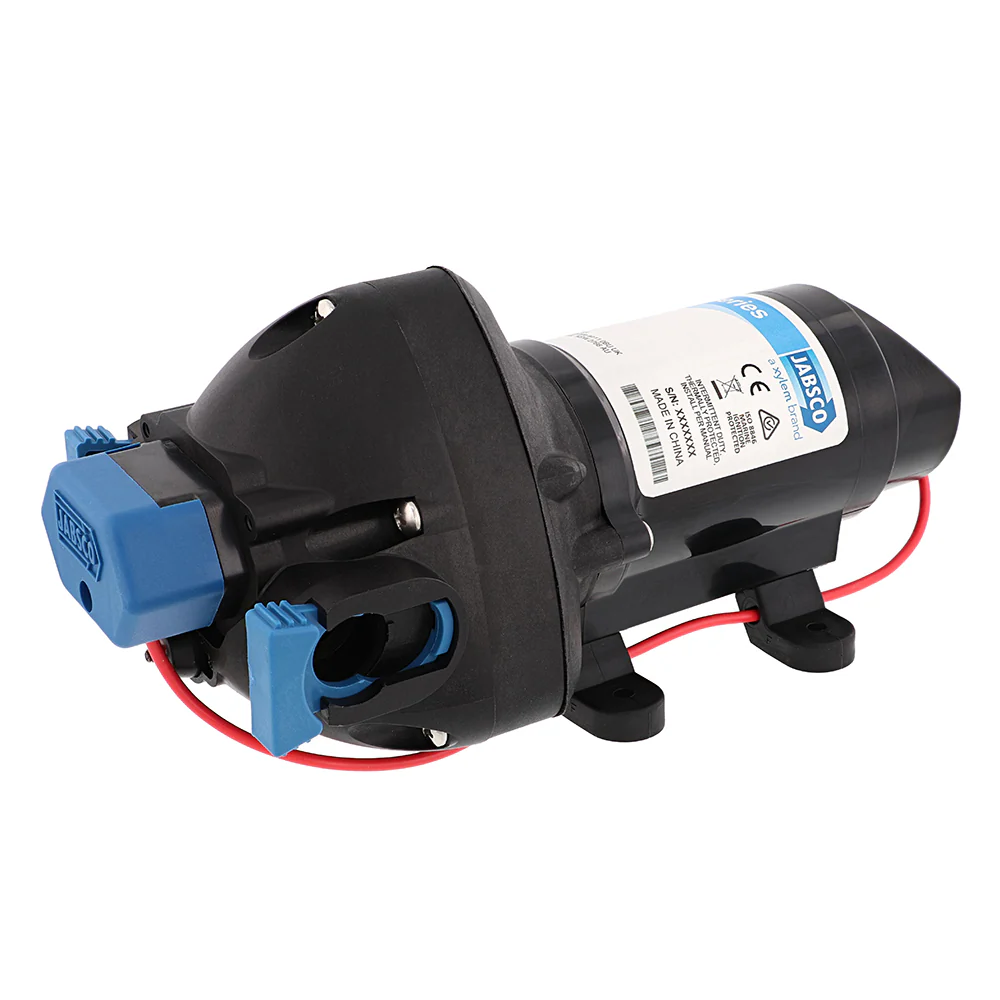

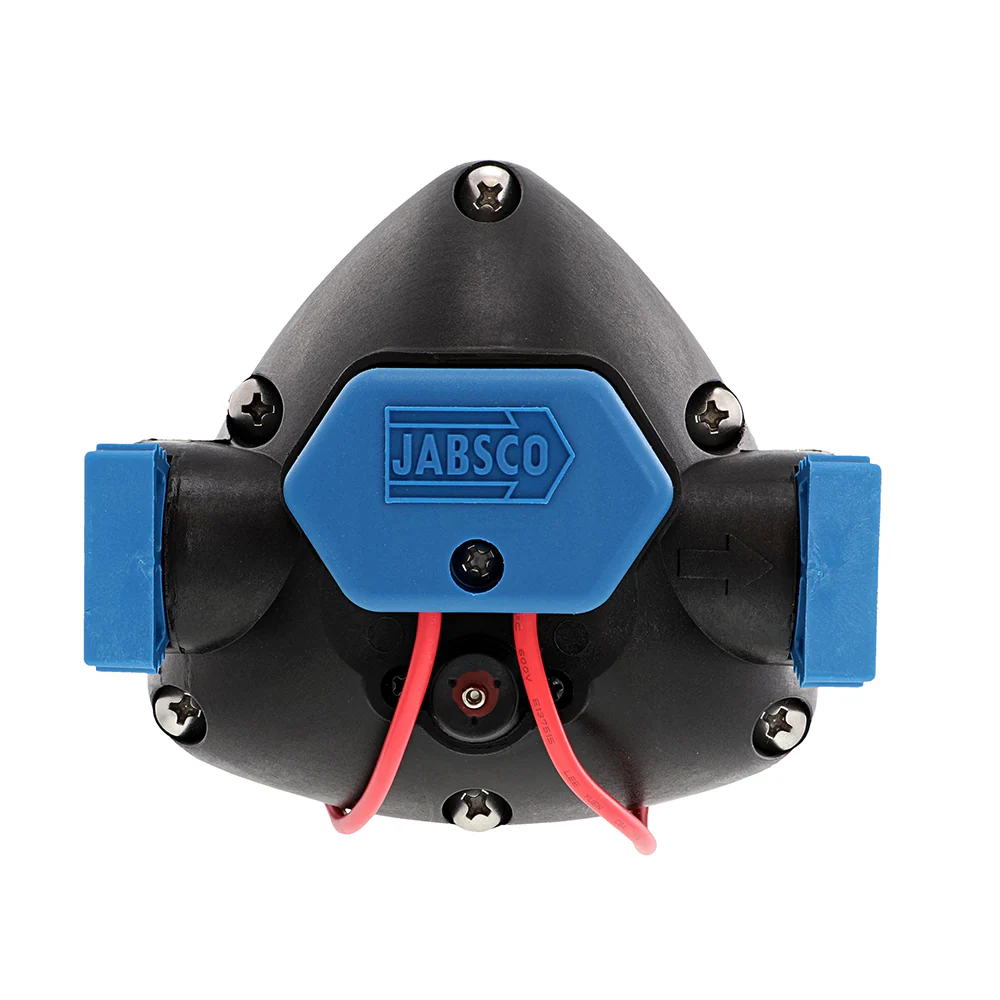

Jabsco Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 40 PSI
The Par-Max 3 Water Pressure Pump is a reliable and high-performance solution designed specifically for marine and boating applications. Operating at 12V, this pump delivers a steady flow of 3 GPM with a maximum pressure of 40 PSI, ensuring your vessel's water systems perform efficiently under various conditions.
Enhanced Durability and Performance
Engineered for longevity, the Par-Max 3 Water Pressure Pump features a robust motor with a powder-coated shell and cast aluminum endbells. The heavy-duty (HD) models boast a wider diameter motor and a reinforced lower housing, enhancing both pressure capability and overall lifespan. Whether you choose the standard or HD model, you can expect exceptional performance tailored to your vessel's specific needs.
Key Features
- Co-Molded Diaphragm Technology: Ensures long life and superior durability for consistent performance.
- Heavy-Duty Construction: HD models include robust motors and cast aluminum lower housings, allowing for sustained high-pressure operation.
- Efficient and Quiet Operation: Minimizes noise, providing a peaceful onboard environment.
- Integrated Sealed Pressure Switch: Enables on-demand operation, optimizing water usage.
- Self-Priming Capability: Offers installation versatility across different vessel configurations.
- Dry Running Protection: Can operate without water without sustaining damage.
- Quick Connect Ports: Facilitates easy installation, servicing, and maintenance.
- Vibration Dampening Mounting Feet: Reduces operational vibrations for enhanced stability.
- Integrated Bypass Module: Minimizes cycling and provides a smoother flow of water.
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7 ft min (2.13 m/min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
| Volts | 12V |
| Max PSI | 40 |
| Gallons Per Minute | 3 GPM |
| Box Dimensions | 6" H x 6" W x 16" L |
| Weight | 4.9 lbs |
| UPC | 671880841801 |
