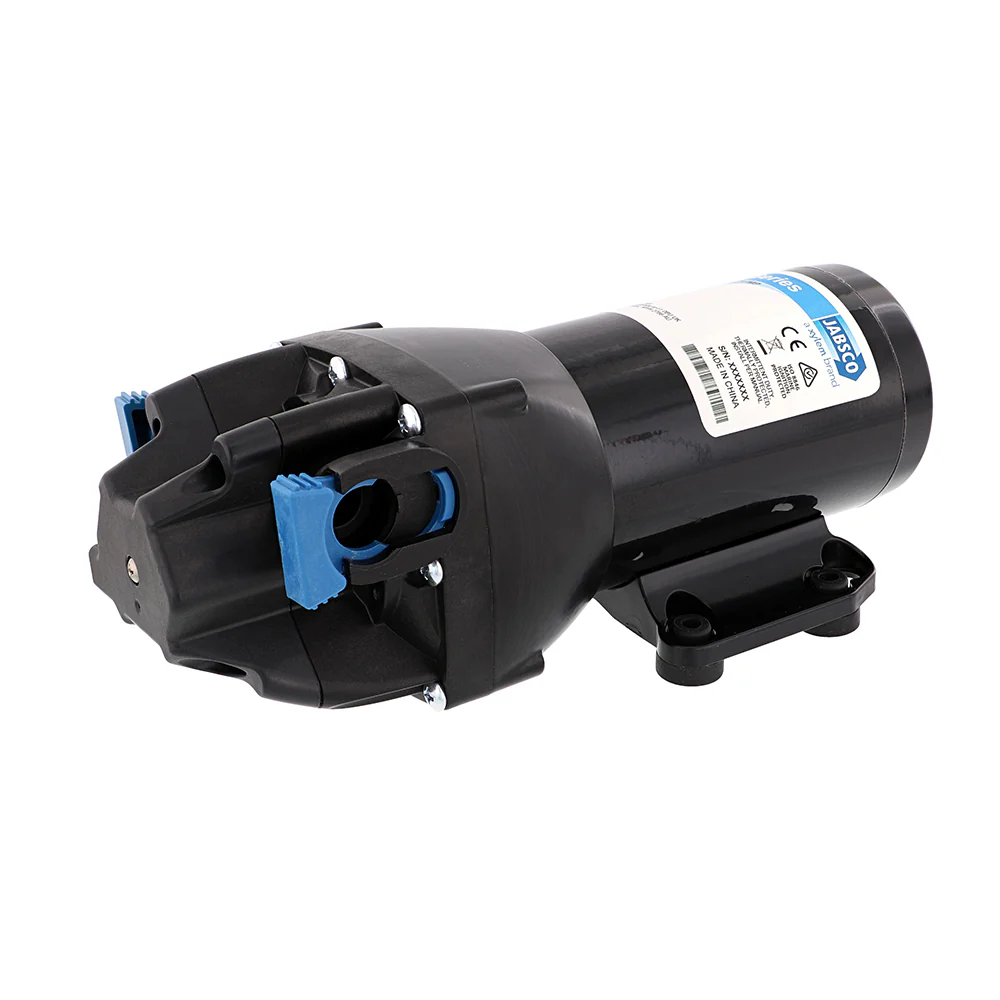

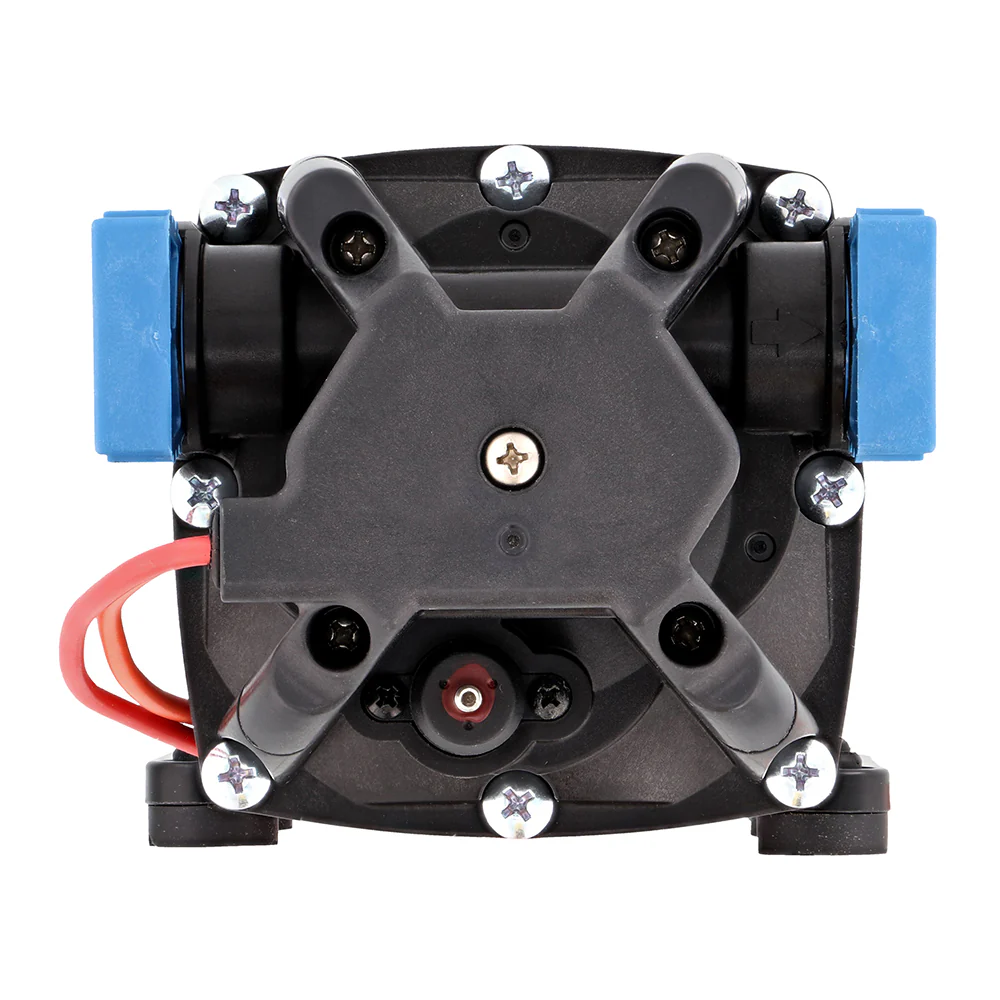

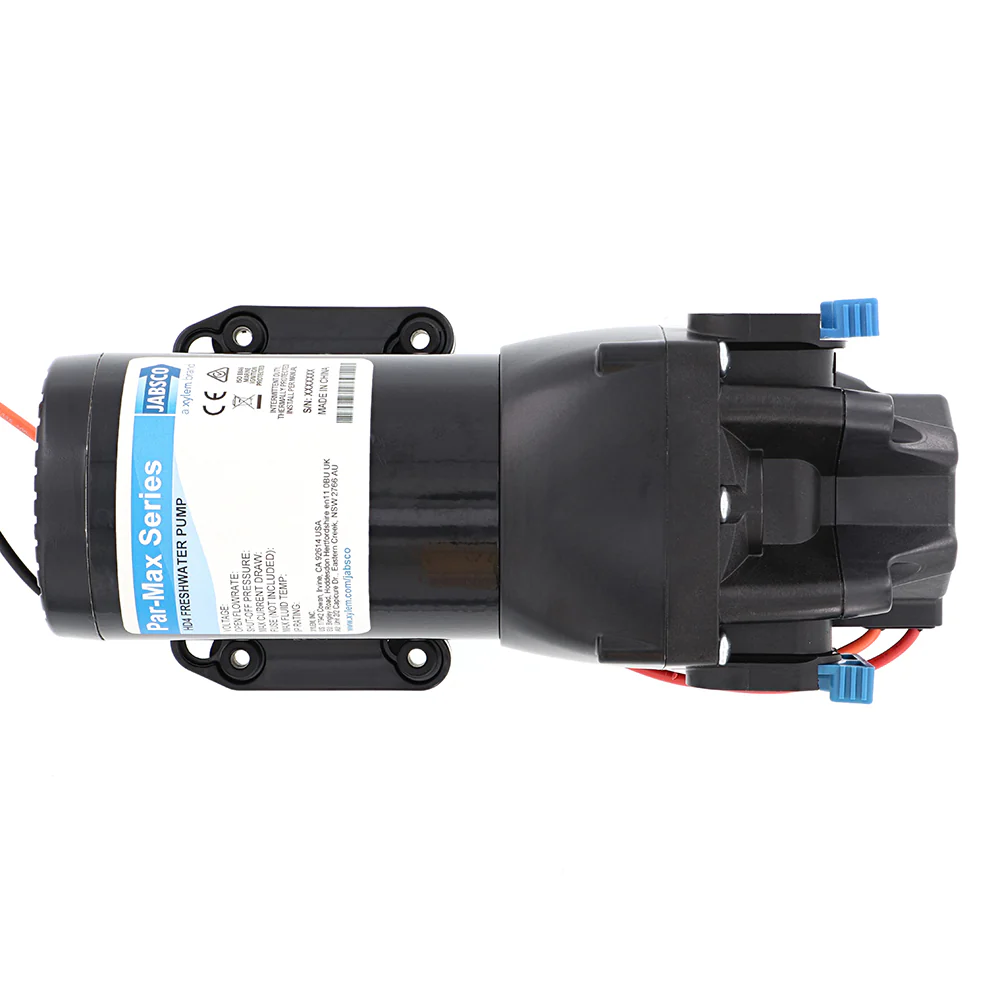

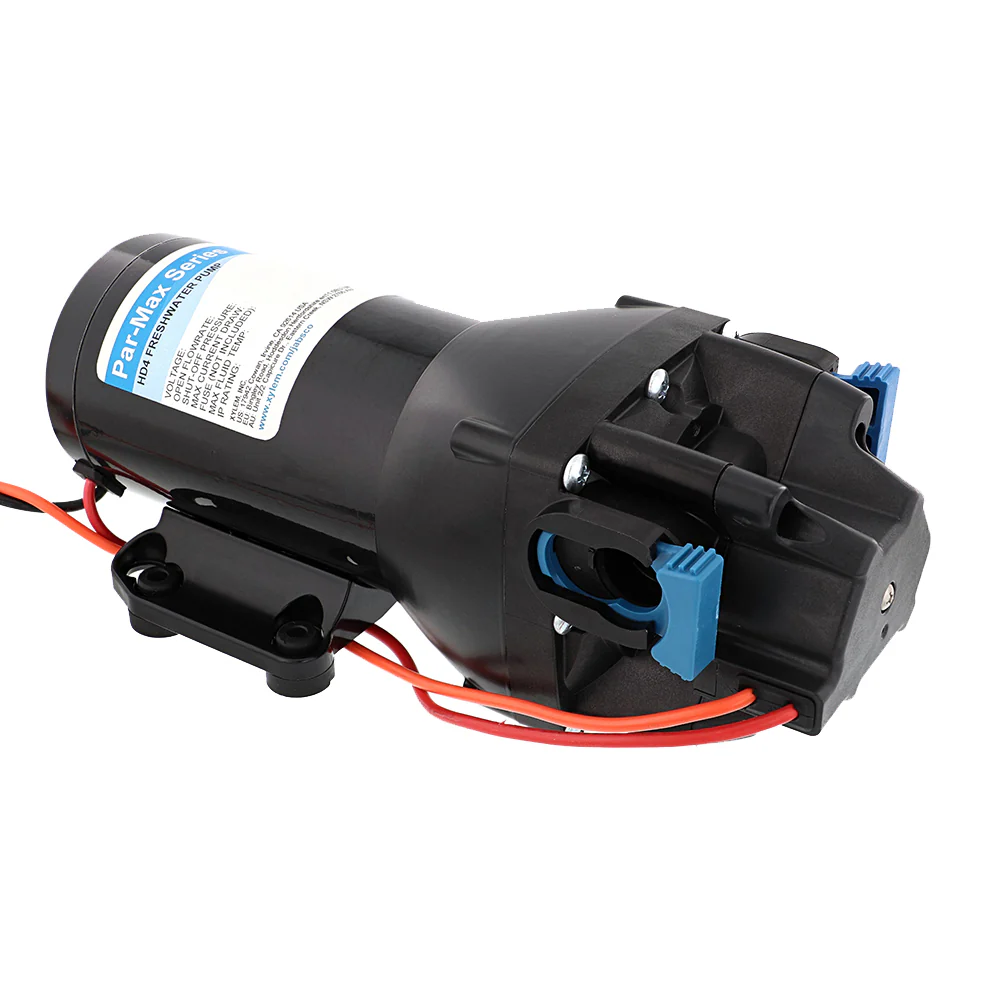

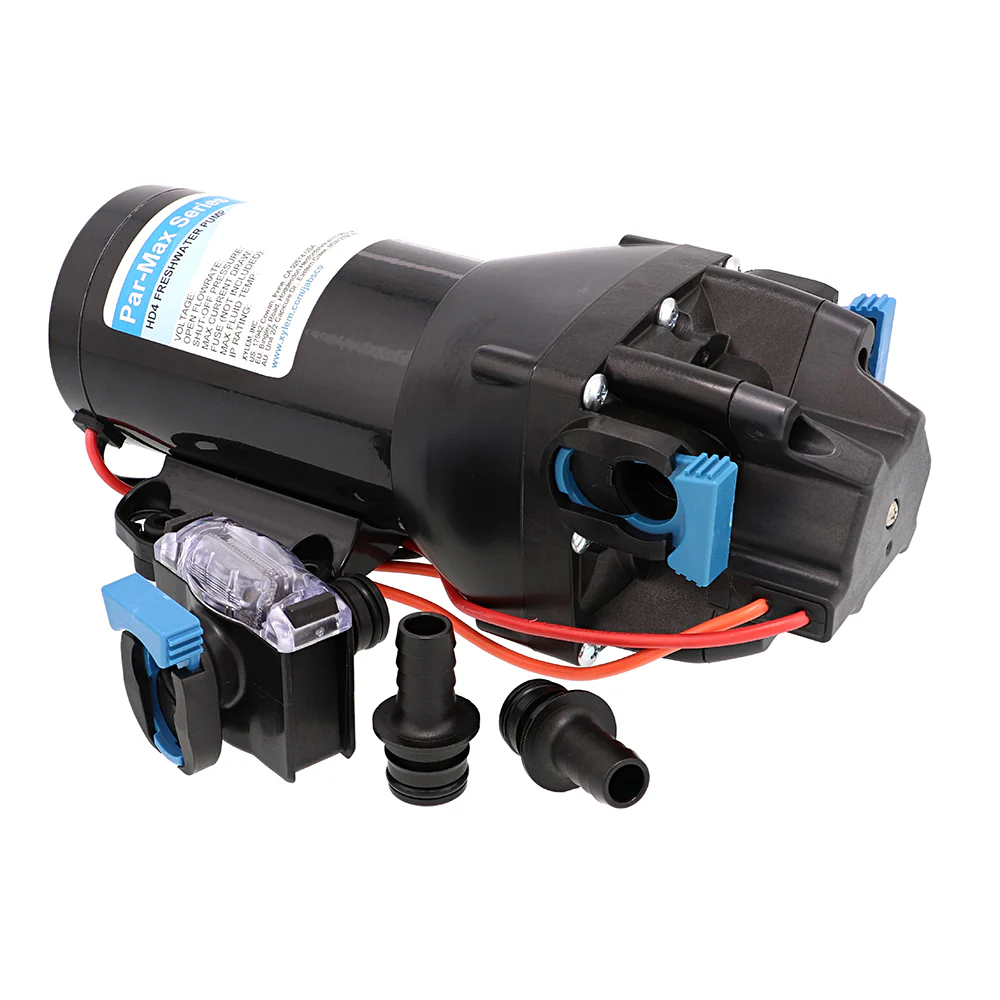

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 40 PSI
Enhance your marine vessel's water system with the Par-Max HD4 Heavy Duty Water Pressure Pump. Designed specifically for demanding boating applications, this 24V pump delivers a robust 4 GPM at 40 PSI, ensuring reliable water pressure for showers, faucets, and other onboard amenities.
Superior Performance for Marine Applications
The HD4 model stands out with its heavy-duty construction, featuring a wider diameter motor and a powder-coated shell to withstand the harsh marine environment. Cast aluminum end bells and a reinforced lower housing extend the pump's lifespan and enhance pressure capabilities, making it ideal for boats requiring up to 6 GPM and 60 PSI.
Versatile Standard Models
For vessels with moderate water demands, our standard models offer excellent performance within a compact, economical footprint. Available in 1-3 GPM configurations, these pumps are perfect for boats with multiple outlets. The durable plastic housing protects the motor from corrosion, ensuring dependable operation season after season.
Key Features
- Co-molded diaphragm technology ensures long life and durability
- Heavy-duty motors and cast aluminum lower housings for extended lifespan even under high pressure
- Efficient and quiet operation minimizes onboard noise
- Integrated, sealed pressure switch allows for on-demand water flow
- Self-priming capability offers flexible installation options
- Can safely run dry without sustaining damage
- Quick connect ports simplify installation, servicing, and maintenance
- Vibration dampening mounting feet reduce operational noise and wear
- Integrated bypass module minimizes cycling and ensures smooth water flow
Technical Specifications
| Attribute | Details |
|---|---|
| Motor Design | Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temperature Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability | 7ft min (2.13m/min) |
| Certifications | CE, ISO8846, RCM |
| Ingress Protection | IPX6 |
Additional Specifications
- Voltage: 24V
- Maximum PSI: 40
- Flow Rate: 4 GPM
- Dimensions: 6"H x 6"W x 15"L
- Weight: 7.9 lbs
- UPC: 671880841894
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
