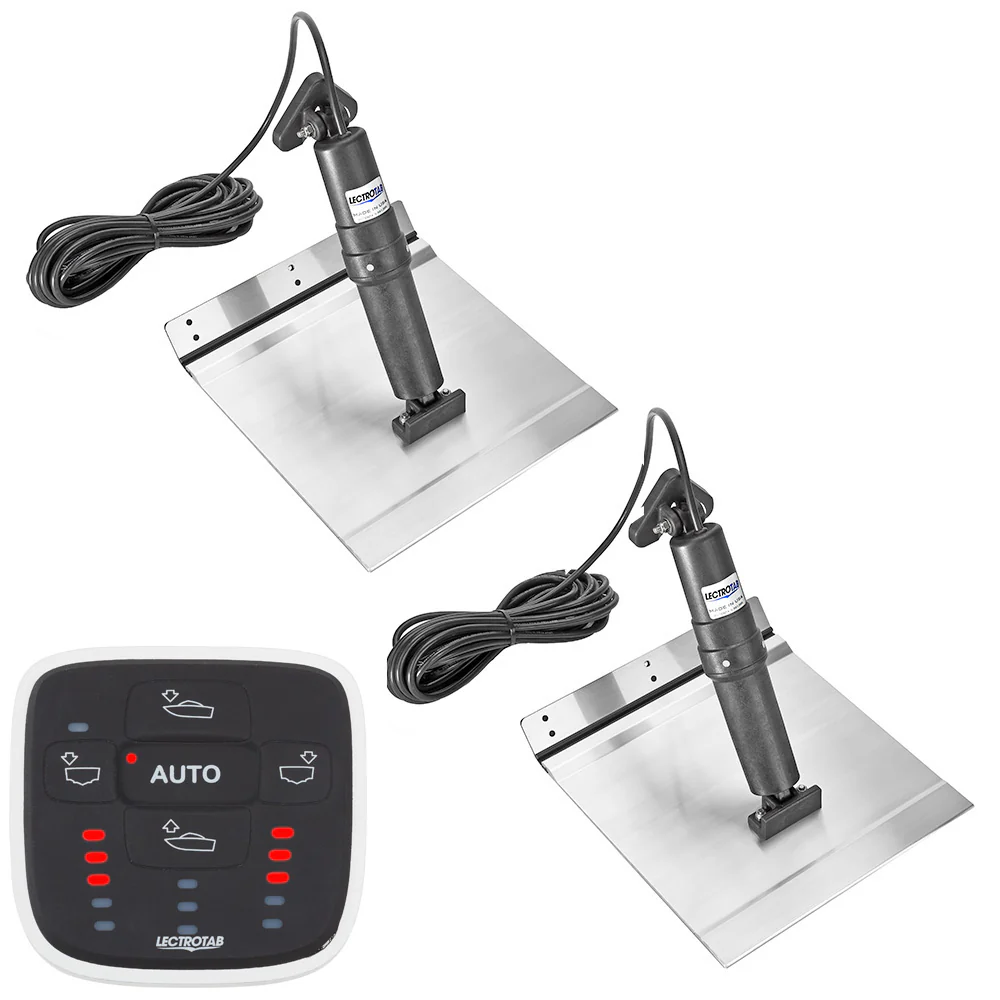

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/ALC-1 Control - 12 x 9
Enhance your boating experience with the XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control. Specifically designed for aluminum-hulled boats, this kit offers superior durability, precision, and effortless maintenance, ensuring your vessel remains level and responsive in various conditions.
Key Features
- Corrosion Resistant: All trim tabs are sealed with a high-quality epoxy coating to prevent corrosion, ensuring longevity even in harsh marine environments.
- Exceptional Strength: Manufactured from marine-grade 6005-T5 Aluminum Alloy, these trim tabs offer strength equivalent to 10-gauge stainless steel.
- Durable Hinges: Equipped with "no-break" polypropylene hinges tested over 300,000 cycles to a 90° bend without failure.
- Secure Actuation: The precision-engineered actuator provides maximum lift force with quiet, non-hydraulic, maintenance-free operation.
- Corrosion-Free Actuators: Packaged in non-metallic, permanently sealed housings, preventing any internal corrosion and eliminating the risk of oil leaks.
- Automatic Leveling Control (ALC): Automatically adjusts trim tabs to maintain a level boat, correcting roll and pitch to enhance ride comfort and fuel efficiency.
- Internal Pressure Equalization: Utilizes an internal system to maintain consistent performance without external pressure issues.
- Brake System: Prevents unwanted tab movement when underway or reversing, ensuring stability and safety.
- Easy Installation: No components need to be installed inside the boat, simplifying the setup process.
Technical Specifications
| Specification | Details |
|---|---|
| Trim Tab Size (L x W) | 12" x 9" (30 x 23 cm) |
| Suitable Boat Length | 18' to 29' (5.5 to 8.5 m) |
| Material | Marine grade 6005-T5 Aluminum Alloy |
| Actuator Type | Electro-Mechanical |
| Actuator DC Voltage | 12 V |
| Actuator Stroke Length | 2.25" (57 mm) |
| Actuator Cable Length | 23' (7 m) |
| Actuator Vertical Height | 11.875" (302 mm) |
| Control Dimensions (W x H) | 3.15" x 3.07" (80 x 77 mm) |
| Control Mounting Hole Cutout | 2" (50 mm) |
| Control Operating Voltage | 12 or 24 V |
| Construction | Aluminum Alloy |
| Box Dimensions | 2"H x 4"W x 6"L |
| Weight | 14.35 lbs |
What’s Included
- One (1) Automatic Leveling Control
- Two (2) Aluminum Alloy Trim Tabs
- Two (2) Actuators with 23' (7 m) Cables
- Comprehensive Instruction Manual
Sold as a Kit
Additional Specifications
- Actuator Type: Electro-Mechanical
- Construction: Aluminum Alloy
- Box Dimensions: 2"H x 4"W x 6"L
- Weight: 14.35 lbs
Resources
