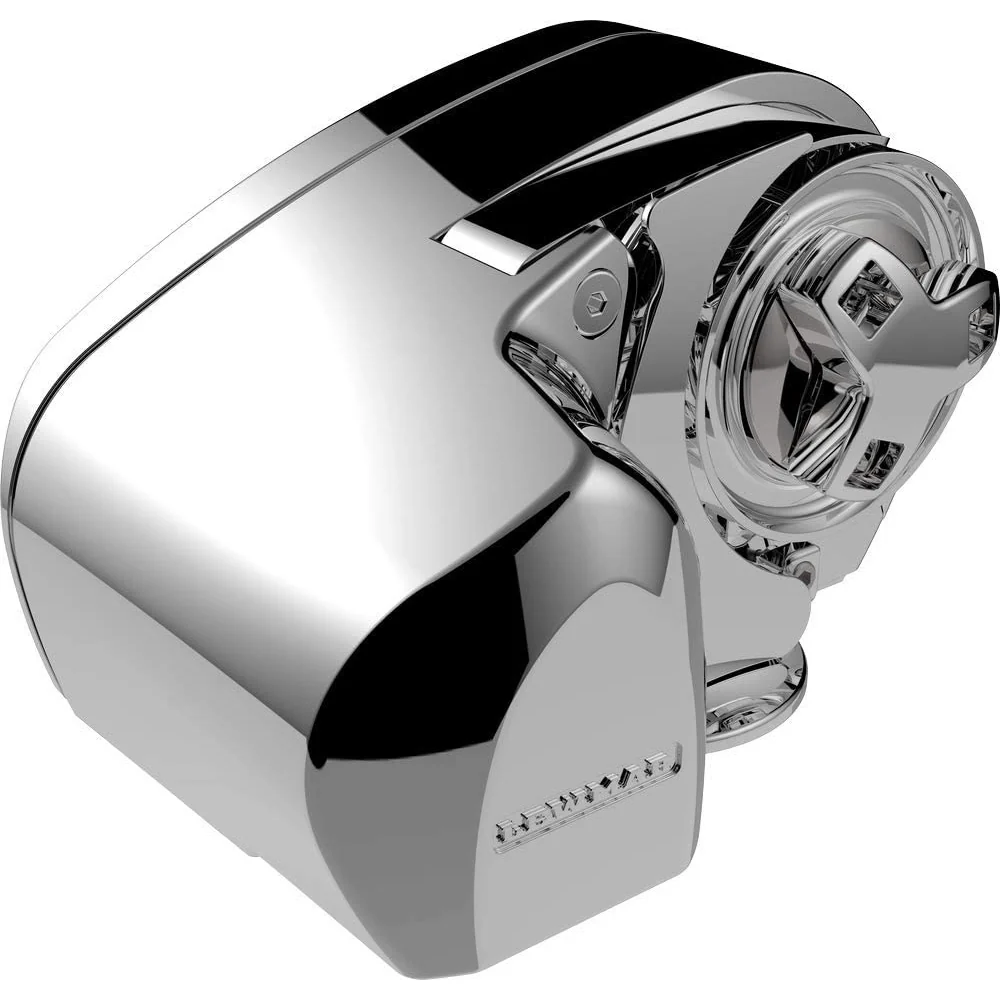

Lewmar Pro-Series Horizontal 1000H Windlass Kit - 12V
The Pro-Series Horizontal 1000H Windlass Kit - 12V is engineered for marine enthusiasts seeking reliability and performance. Crafted from 100% 316 stainless steel, this windlass ensures durability and protection in harsh marine environments. Designed for easy DIY installation above deck, it features a powerful motor for swift line handling and incorporates push-button controls alongside a built-in manual emergency recovery system, making anchoring seamless and stress-free.
Features
- Powerful motor for rapid line speed
- Integrated manual emergency recovery system
- Convenient above-deck horizontal installation
Technical Specifications
| Specification | Details |
|---|---|
| Material | Stainless Steel |
| Maximum Pull | 1,000 lbs |
| Maximum Line Speed | 88 ft/min |
| Maximum Chain Size | 5/16" |
| Maximum Rope Size | 5/8" |
| Power | 12 V |
| Maximum Boat Length | 38 ft |
| Mounting Position | Horizontal |
What's in the Box
- Windlass unit
- Control switch
- Circuit breaker
- Dual direction contactor/solenoid
- Instruction manual
*Sold as an Individual
Additional Specifications
| Specification | Details |
|---|---|
| Chain Diameter | 0.45" |
| Freefall | Yes |
| Rope Diameter | 0.65" |
| Orientation | Horizontal |
| Box Dimensions | 10" H x 10" W x 18" L |
| Weight | 20 lbs |
| UPC | 743683319891 |
