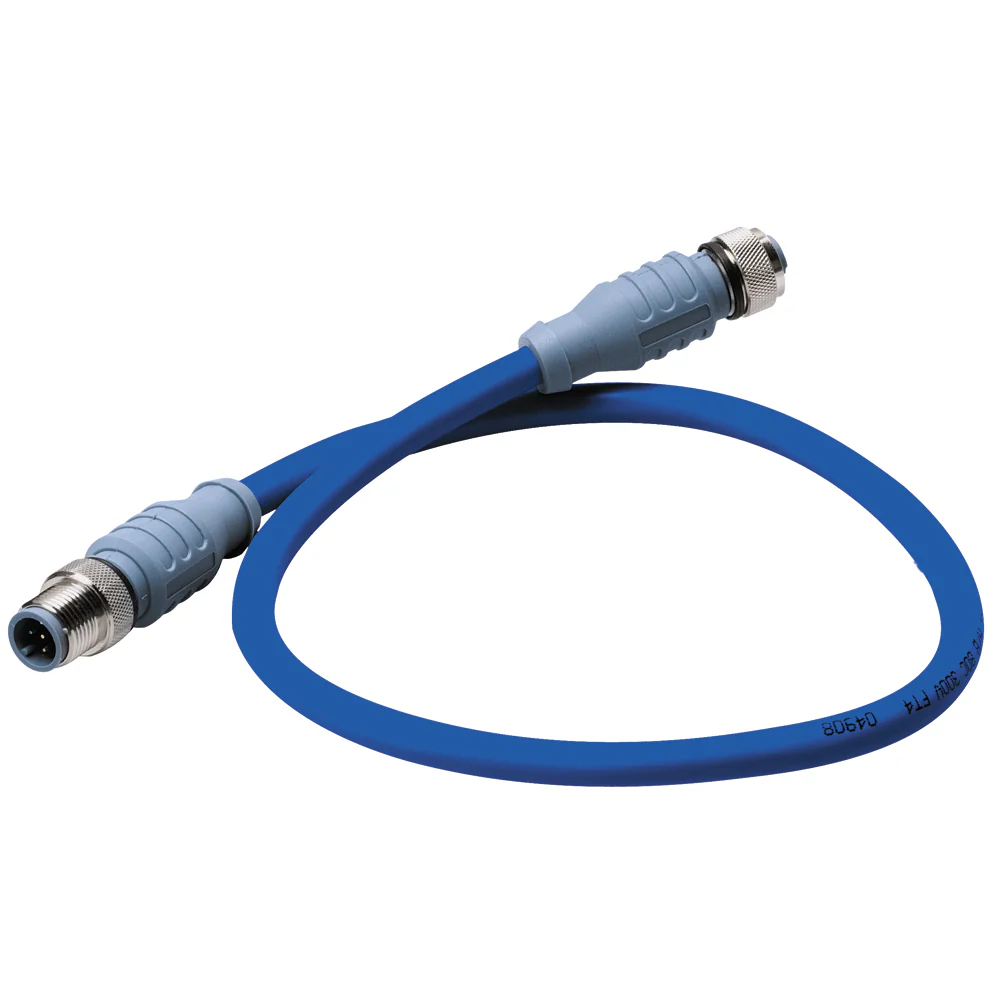

The Maretron Mid Double-Ended Cordset - 10 M Blue is a premium marine-grade connector designed for reliable and secure connections in demanding boating environments. Engineered with high-quality materials and robust specifications, this cordset ensures optimal performance and longevity for your marine electrical systems.

Mechanical Specifications

Component	Material	Color/Plating
Contact Carrier Mat	Thermoplastic PUR	Blue-Gray
Molded Body Mat	Thermoplastic PUR	Blue-Gray
Contact Mat/Plating	Brass	Gold
Coupling Nut Mat/Plating	Brass	Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Parameter	Rating
Current Rating	4.0 Amps
Voltage Rating	250 V

Cable Specifications

Feature	Description
Outer Jacket Material/Color	PVC/Gray
Conductor Insulation	PE (data pair), PVC (power pair)
Number of Conductors	2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding	Foil (Overall), Foil (Power Pair), Foil (Data Pair)

Environmental Specifications

Parameter	Specification
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)

Approvals

• Cable UL Certifications:
  • PLTC 75°C Sunlight Resistant E90625
  • AWM 80°C 300V
• Cable CSA Certifications:
  • CMX-OUTDOOR-CMG LL54185 75°C
  • AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3 Compliant

Specifications

Attribute	Details
Cable Length	10 M (33')
Box Dimensions	2"H x 8"W x 8"L
Weight	2.3 lbs
UPC	873804001999
