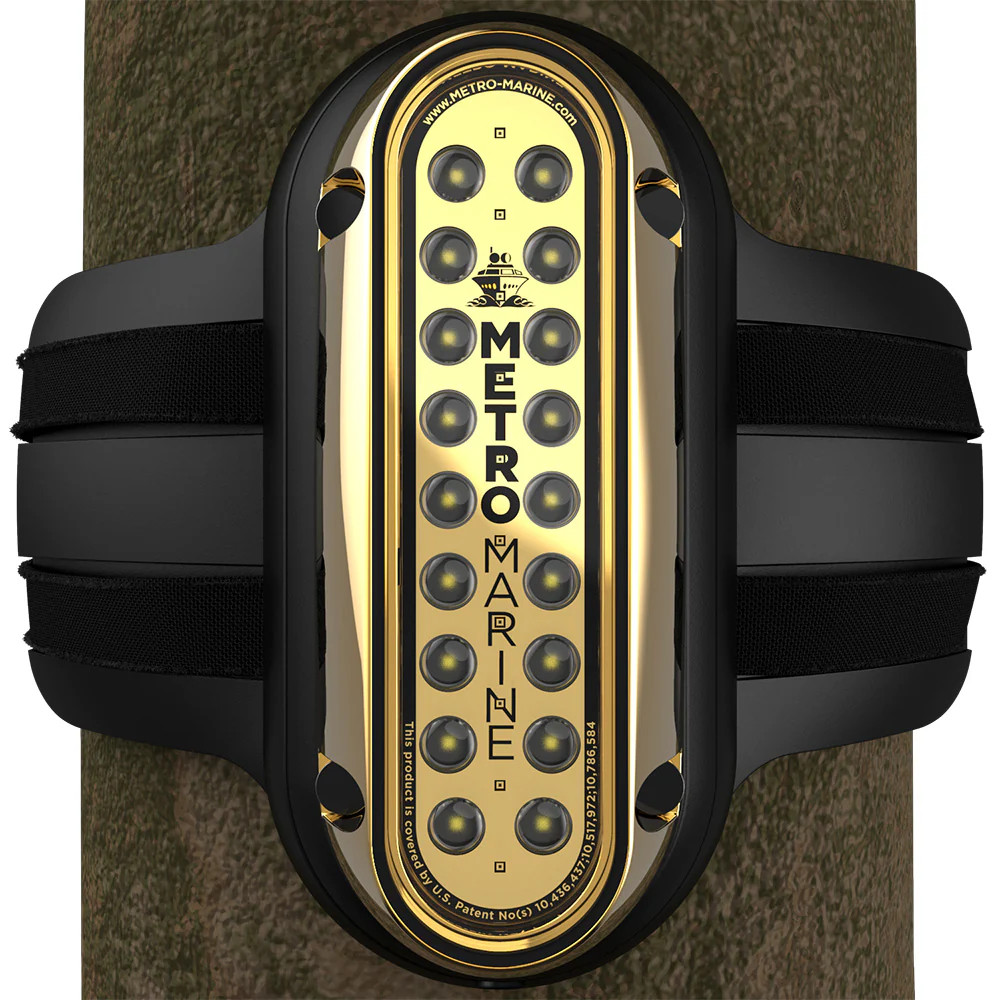

Illuminate your marine environment with the F-PME1-V-W3-90 High-Output Vertical Piling Mount Light. Designed for superior performance and durability, this underwater LED luminaire delivers vibrant white light with a precise 90° beam, making it perfect for yachts, docks, seawalls, fountains, and theme park installations.

Exceptional Lighting Performance

The F-Series underwater marine lighting fixtures are engineered to operate at depths of up to 4.6 meters (15 feet) below the water’s surface. Constructed with watertight aluminum bronze housings and silicon bronze hardware, these luminaires ensure longevity and reliability in harsh marine environments. The innovative LED array features 18 high-output LEDs per fixture, allowing for close adjacent placement and delivering a fully-mixed, uniform light that enhances the visual appeal of any marine structure.

Advanced Clear Lens Technology

Biofouling can significantly reduce the efficiency of underwater lighting by blocking light and causing overheating. The F-PME1-V-W3-90 overcomes this challenge with Metro Marine’s patented Clear Lens Technology. By integrating UVC LEDs, the system continuously keeps the lenses crystal clear, preventing biofouling growth and ensuring consistent light output without maintenance.

Innovative Anti-Condensation Assembly

Condensation is a common issue in underwater lighting fixtures, leading to internal corrosion and potential failure. Metro Marine addresses this with a patent-pending assembly methodology developed in a Class 1000 Clean Room environment. This scientific approach completely eliminates condensation formation, safeguarding the integrity of the luminaire and extending its operational life.

Technical Specifications

Feature	Details
Beam Angle	90°
Input Voltage	10VDC - 30VDC
Power Consumption	45.5W
Dimensions	8.5" (W) x 10" (H) x 2.59" (D)
Weight	2.42 lbs
Lens Material	Clear Quartz
Operating Temperature	-40° to 122°

Product Specifications

Attribute	Specification
Color	White
Material	AB2 Aluminum Bronze
Mounting Style	Piling
Voltage - Input Range	10-30V
Watts	45.5W

Why Choose Metro Marine’s F-Series?

• Durability: Crafted from high-quality aluminum bronze and silicon bronze, ensuring resistance to corrosion and longevity in underwater conditions.
• High Efficiency: Low power consumption with high-output LEDs provides bright illumination while conserving energy.
• Uniform Light Distribution: The 90° beam angle and closely placed LED array ensure consistent and uniform lighting across large areas.
• Maintenance-Free: Clear Lens Technology and Anti-Condensation Assembly eliminate common maintenance issues, reducing downtime and upkeep costs.
• Versatile Applications: Ideal for a wide range of marine and water-based installations, enhancing both functionality and aesthetic appeal.

Installation and Usage

Installing the F-PME1-V-W3-90 is straightforward, thanks to its piling mounting style. Whether you’re outfitting a yacht, dock, or seawall, the robust construction ensures a secure fit. The clear quartz lens ensures maximum light transmission, while the wide operating temperature range makes it suitable for various climates and water conditions.

Enhance Your Marine Lighting Today

Upgrade your marine lighting with Metro Marine’s F-PME1-V-W3-90 High-Output Vertical Piling Mount Light. Experience the perfect blend of durability, efficiency, and superior lighting performance designed specifically for demanding underwater environments. Order now to illuminate your marine projects with confidence.
