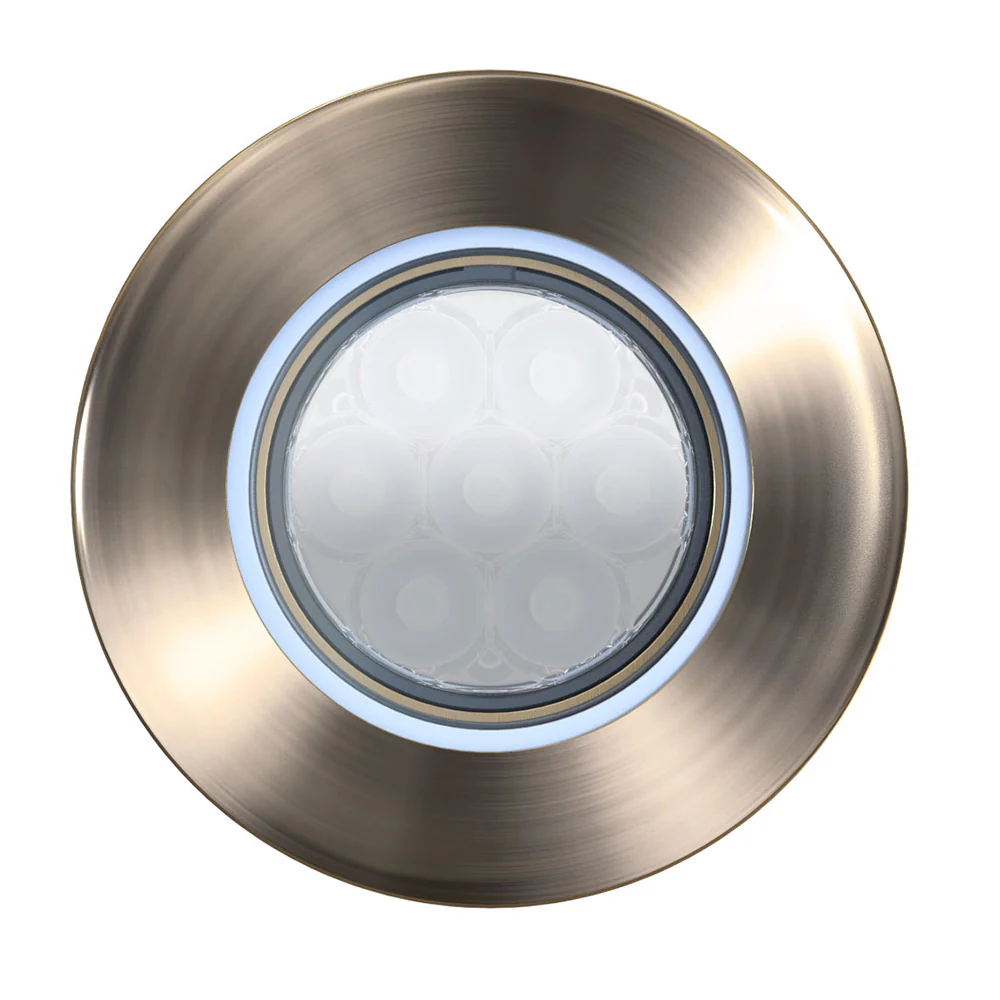

OceanLED Explore E2 Wide Beam - Ultra White
The Explore E2 Wide Beam - Ultra White is the latest addition to our premium Explore range, engineered specifically for marine enthusiasts seeking high-performance lighting solutions. Compact and robust, the E2 is designed to fit tight installation spaces without compromising on the superior build quality and advanced features that define our larger lights.
Versatile Beam Options
Tailor your lighting to your specific needs with the Explore E2's dual beam options. Select the signature wide-angle beam (90° x 20° Elliptical) for expansive illumination or opt for the precise narrow “laser” beam (20° Circular) to achieve focused lighting effects, perfect for various marine applications.
Exceptional Water Ingress Protection
Built to withstand the toughest marine environments, the Explore E2 boasts a full IP69k Certification, ensuring maximum protection against water and dust. Additionally, the rear of the light is safeguarded against temporary in-hull submersion, providing extra durability for boats navigating rough seas and waves.
Effortless XFM Removal
The Explore E2 maintains the same XFM (Easy Removal) capabilities as our larger lights, allowing for hassle-free removal of the light body for maintenance or upgrades. This feature eliminates the need to haul the boat, saving you time and effort during service.
Seamless Control Integration
Manage your Explore E2 lights effortlessly using your preferred third-party switch or push button. This flexibility ensures smooth integration with your boat’s existing control systems, providing convenient and reliable operation.
Key Features
- Elliptical 90° / 20° Wide Beam Option
- Circular 20° Beam Option
- Up to 3000 Fixture Lumens for optimal brightness
- Compact design with a built-in driver
- Ultra-low profile outer bezel for a sleek appearance
- IP69k Certification with In-hull Temporary Submersion Protection
Technical Specifications
| Parameter | Details |
|---|---|
| Fixture Lumens* | 3000 |
| Beam Angle (Wide) | 90° / 20° Elliptical |
| Beam Angle (Narrow) | 20° Circular |
| IP Rating | IP69k |
| Operating Voltage (DC) | 10-30V DC |
| Current / Amp Draw (DC) | 3.5A @ 12V DC / 1.5A @ 24V DC |
| Driver Type | Internal |
| Correlated Color Temperature | 6500K (White) |
| Rear Temporary Submersion Protection | Yes |
| Fish Strobe | Yes |
| Anti-fouling Properties | Tritonium coated lens |
| LED Manufacturer | CREE |
Mounting Recommendations
- Suitable for boats up to 20m (65’)
- Transom / Hull Spacing: 1 - 1.5m (3-5’)
- Installation Depth Below Waterline: 25-30cm (10-12”)
- Maximum Hull Thickness: 60mm (2.4”)
Physical Dimensions
| Parameter | Details |
|---|---|
| Total Weight | 0.8kg (1.76lbs) |
| Total Diameter (Including Bezel) | 80mm (3.15”) |
| Diameter Of Body | 59mm (2.32”) |
| Profile Of Fixture | 3.5mm (0.14”) |
| Overall Length | 101.5mm (4”) |
| Minimum Space Required Inside The Hull | 172mm (6.78”) |
| Hole Cut-Out | 60mm (2.37”) |
| Material (Mounting Tube / Bezel) | AB2 Aluminium Bronze |
| Material (Light Body) | AB2 |
| Lens | Glass |
| Optics (Wide Beam Option) | Hybrid Collimated |
| Optics (Narrow Beam Option) | Collimated |
| CE Approved | Yes |
Additional Resources:
