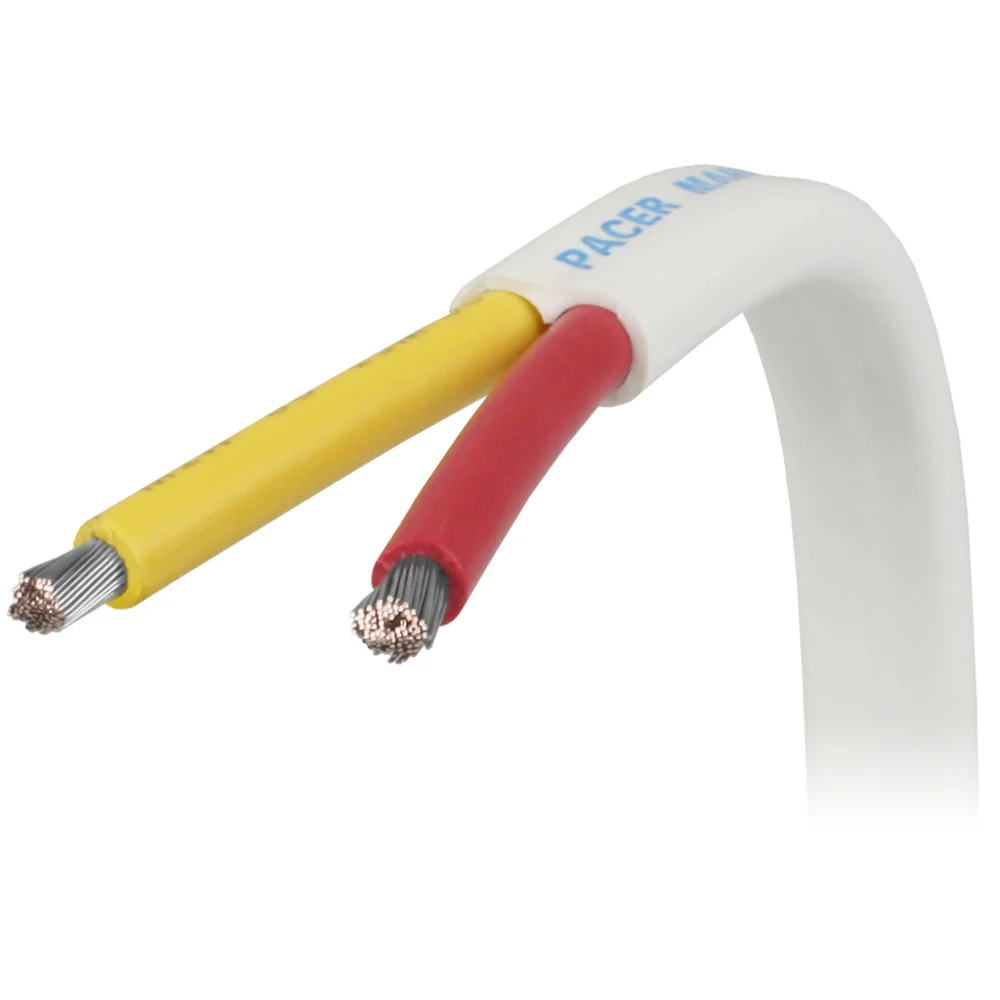

Pacer 10/2 AWG Safety Duplex Cable - Flat Cable - Red/Yellow - 100'
Pacer's 10/2 AWG Safety Duplex Boat Cable in striking Red/Yellow is meticulously crafted in the USA to deliver exceptional performance and longevity in marine applications. This 100-foot cable is ideal for both low voltage AC and DC circuits, providing the flexibility and resistance needed for the harsh marine environment.
Superior Construction
Our duplex boat cable is constructed with finely stranded, Type III tinned copper conductors. This design not only offers remarkable flexibility but also significantly inhibits corrosion, ensuring reliable performance over time.
Enhanced Protection
The PVC jacket of the 10 AWG Duplex Boat Cable is specifically designed to be both flexible and moisture-resistant. During the extrusion process, all spaces between the wires are filled, eliminating any areas where moisture or air could accumulate. Additionally, a talcum powder coating is applied to the interior wires, facilitating easy removal of the outer jacket when necessary—making it an ideal choice for marine applications.
Compliance and Standards
Pacer's marine wire meets and exceeds the stringent requirements set by UL, ABYC, and NMMA, ensuring safety and reliability for all your marine electrical systems.
Features
- Extruded exterior cable insulation with seamless coverage
- Highly flexible, color-coded wire insulation for easy identification
- Stranded, tinned copper conductors for enhanced durability
- Annealed finely stranded tinned copper ASTM B172 Class K
- Resistant to acids, alkalis, abrasion, flames, gasoline, oil, and moisture
Compliance Standards
- UL Standard: 1426
- U.S.C.G: 33 CFR part 183
- ABYC: E-11.14
Technical Specifications
| Conductor | Type III annealed finely stranded tinned copper ASTM B172 Class K |
|---|---|
| Insulation | Flexible, color-coded PVC (-20 °C to 105 °C) |
| Voltage Rating | 600-V |
| Resistance | Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture |
| Number of Conductors | 2 |
| Type of Cable | Duplex |
Product Specifications
| Color | Red/Yellow |
|---|---|
| Gauge | 10/2 AWG |
| Length | 100' |
| Box Dimensions | 7"H x 7"W x 7"L |
| Weight | 12.3 lbs |
| UPC | 840248200448 |
*Sold as an Individual
Download the Brochure: Brochure (pdf)
