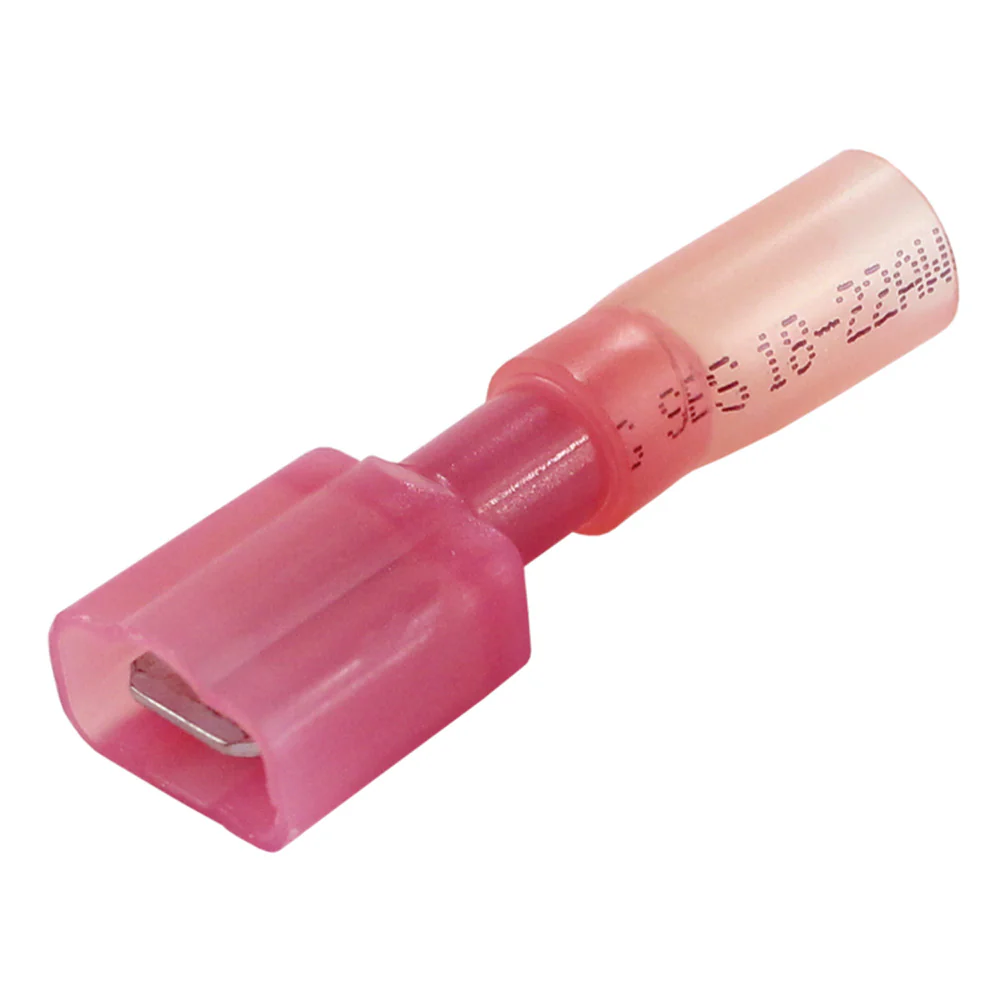

Pacer 22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 25 Pack
The 22-18 AWG Fully-Insulated Male Disconnect Terminal in vibrant red is designed to deliver secure and reliable electrical connections tailored for marine and boating applications. This 25-pack ensures you have the necessary terminals to maintain and manage your vessel’s wiring system with ease and confidence.
Superior Protection for Marine Environments
Maintaining solid electrical connections is critical in the harsh conditions encountered on the water. Pacer’s heat-shrink fully insulated disconnect terminals provide exceptional protection against moisture, salt spray, and corrosion, making them ideal for marine and boating use. The built-in heat-activated adhesive liner ensures a rugged, environmentally sealed connection that withstands the demanding marine environment.
Easy Maintenance and Flexibility
The ability to disconnect and reconnect wires simplifies maintenance and repairs on your boat. Whether you're removing equipment or performing field service, these disconnect terminals allow for quick and hassle-free adjustments. Their robust construction also offers protection against physical abuse and abrasion, ensuring long-lasting performance.
Color-Coded for Simple Identification
Efficiently manage your wiring with our color-coded insulation system:
| Insulation Color | Wire Gauge |
|---|---|
| Red | 22-18 AWG |
| Blue | 16-14 AWG |
| Yellow | 12-10 AWG |
Choosing the correct terminal is crucial for optimal performance. If you have any questions, our Pacer experts are available to assist you in selecting the right disconnect terminal for your specific marine needs.
Key Features
- Protects terminations from water, condensation, salt spray, and corrosion
- Enhanced vibration protection for rugged marine environments
- Provides effective strain relief
Technical Specifications
| Specification | Details |
|---|---|
| Shrink Ratio | Approx. 3:1 at 135 °C |
| Operating Temperature | -55 °C to 125 °C |
| Volume Resistivity | 1015 Ohm-cm³ |
| Dielectric Strength | 900 V/mil |
| Voltage Rating | 600 V |
| AWG Range | 22-18 AWG |
| Disc./Bullet Size | 0.250 in. |
| Insulation Color | Red |
| Package Size | 25 Pack |
| Box Dimensions | 1" H x 3" W x 5" L |
| Weight | 0.1 lbs |
| UPC | 840248207652 |
Compliance and Certifications
- UL Certified
- CSA Certified
- RoHS Compliant
Additional Resources
Brochure: Download PDF
