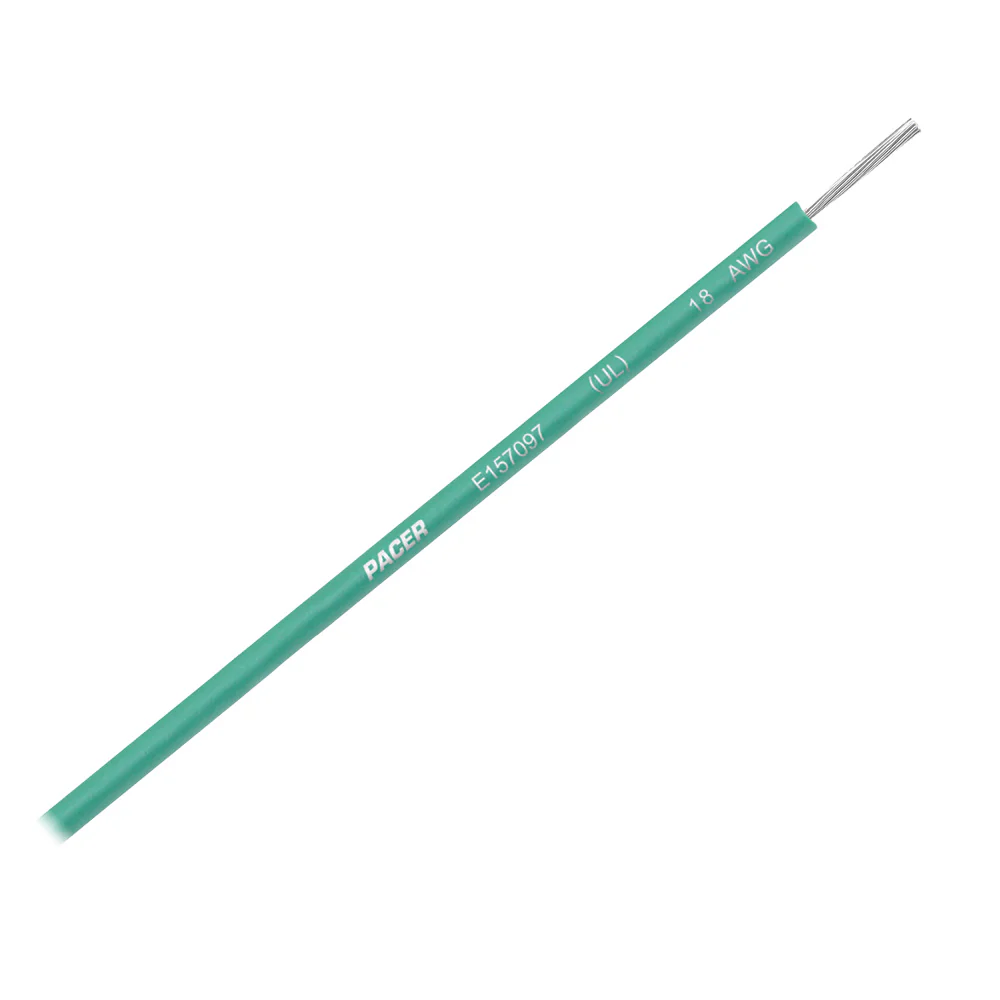

Pacer Green 18 AWG UL Marine Wire - 35'
Pacer's Green 18 AWG UL Marine Wire is engineered to endure the most demanding marine environments, ensuring reliable performance for all your boating and marine electrical needs. Manufactured in Sarasota, FL, USA, this high-quality wire combines superior corrosion resistance with exceptional flexibility, making it the ideal choice for both professional and recreational boaters.
Exceptional Durability and Flexibility
Constructed from Type III Class K tinned copper, Pacer marine wire offers outstanding corrosion resistance, allowing it to withstand harsh saltwater conditions without compromising performance. The flexible, color-coded PVC insulation not only enhances durability but also simplifies installation and maintenance, ensuring your wiring stays intact and functional even in the toughest conditions.
Key Features
- Stranded, tinned copper conductors for enhanced durability
- Highly flexible, color-coded PVC insulation for easy identification and installation
- Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
Compliance and Certifications
Pacer's marine wire meets and exceeds industry standards, ensuring top-notch safety and reliability for your marine applications.
- UL Listed
- ABYC Certified
- NMMA Compliant
- AWM 1015/1230
- CSA: TEW
Temperature Ratings:
- 105°C Dry
- 60°C Wet
Technical Specifications
| Attribute | Details |
|---|---|
| Conductor | Type III Annealed Finely Stranded Tinned Copper ASTM B172 Class K |
| Insulation | Flexible, color-coded PVC (-20°C to 105°C) |
| Voltage Rating | 600 V |
| Resistance To | Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture |
| AWG | 18 |
| Length | 35 ft. |
| Color | Green |
| Conductor Stranding | 16/0.0100 |
| Insulation Thickness | 0.030 inches |
| Outer Diameter | 0.114 inches |
| Circular Mils | 1600 |
| Approximate LB/M | 10.3 |
| Box Dimensions | 2"H x 4"W x 4"L |
| Weight | 0.5 lbs |
| UPC | 0840248214858 |
Ideal Applications
- Point-to-point wiring in marine electrical systems
- Internal wiring of marine panels and motors
- General boat wiring applications requiring high durability and flexibility
Comprehensive Specifications
- Color: Green
- Gauge: 18 AWG
- Length: 35'
- Box Dimensions: 2"H x 4"W x 4"L
- Weight: 0.5 lbs
- UPC: 0840248214858
