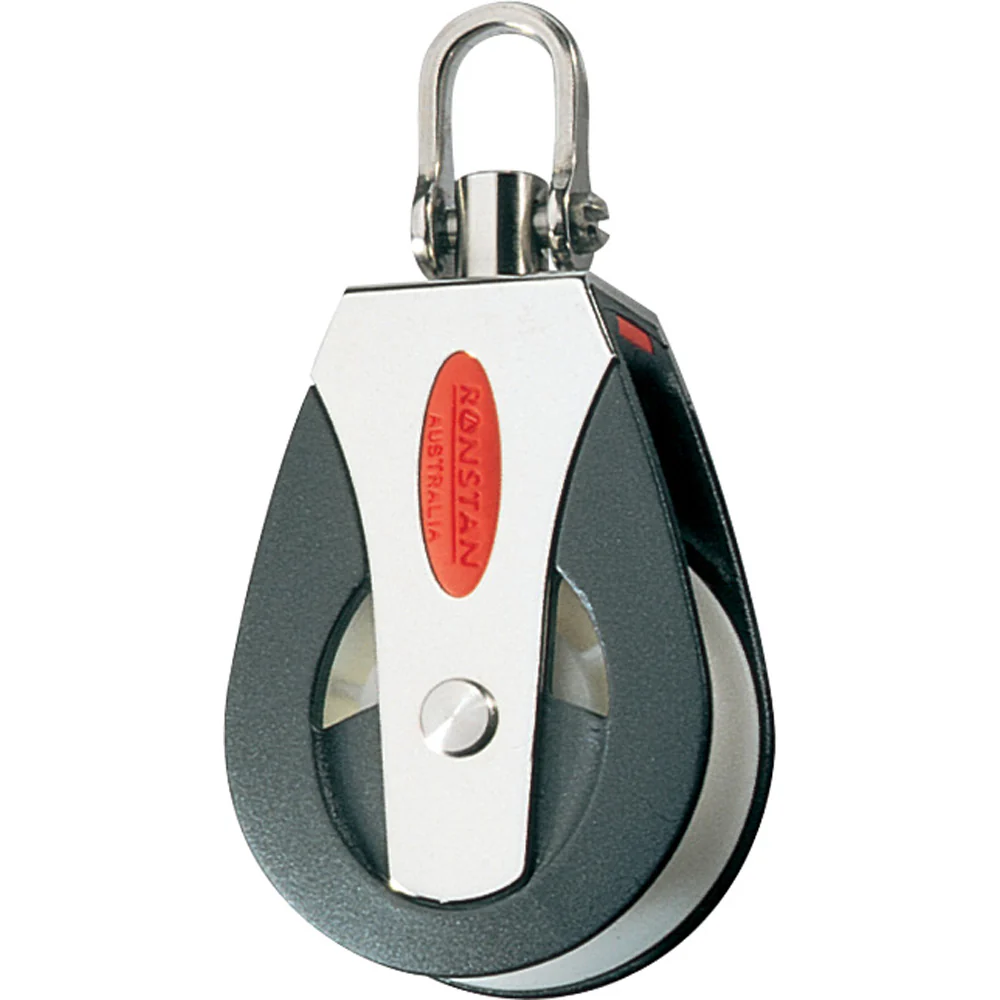

Ronstan Series 50 All Purpose Block - Single - Universal Head
The Series 50 All Purpose Block - Single - Universal Head is an essential component for any marine enthusiast seeking reliable and versatile hardware for their vessel. Designed to handle a wide range of applications, this all-purpose block ensures smooth operation and enduring performance in both cruising and racing environments.
Features
- High Load Capacity: Capable of handling exceptionally high working loads, ensuring safety and reliability.
- Low Maintenance: Constructed for long service life with minimal upkeep, reducing the need for frequent replacements.
- Self-Lubricating Sheave: Acetal polymer sheaves are self-lubricating, providing smooth operation and reducing friction.
- Captive Lockâ„¢ Universal Head: Allows for versatile mounting options, either fixed in two planes or free to swivel as needed.
- Slotted Pin Shackle: Eliminates the risk of fouling lines, enhancing safety and ease of use.
Applications
This versatile block is ideal for a variety of applications on boats up to 10 meters (33 feet) in length, including:
- Mainsheet and halyard systems
- Vang control lines
- Spinnaker deployment and control
Materials
- Nylatron® Sheave: Provides excellent resistance to wear and smooth operation under load.
- Grade 316 Stainless Steel: Used for the load strap and head fitting, offering superior corrosion resistance in marine environments.
- Fiber Reinforced Nylon Cheeks: Impact and UV resistant, ensuring durability and longevity.
Specifications
| Specification | Details |
|---|---|
| Sheave Diameter: | 50mm (2") |
| Maximum Rope Diameter: | 12mm (1/2") |
| Maximum Pin Diameter: | 5mm (3/16") |
| Minimum Working Load (MWL): | 750kg (1,650lbs) |
| Breaking Load (B.L.): | 1,500kg (3,310lbs) |
| Weight: | 118g (4.1oz) |
The Series 50 All Purpose Block - Single - Universal Head is an essential component for any marine enthusiast seeking reliable and versatile hardware for their vessel. Designed to handle a wide range of applications, this all-purpose block ensures smooth operation and enduring performance in both cruising and racing environments.
Features
- High Load Capacity: Capable of handling exceptionally high working loads, ensuring safety and reliability.
- Low Maintenance: Constructed for long service life with minimal upkeep, reducing the need for frequent replacements.
- Self-Lubricating Sheave: Acetal polymer sheaves are self-lubricating, providing smooth operation and reducing friction.
- Captive Lockâ„¢ Universal Head: Allows for versatile mounting options, either fixed in two planes or free to swivel as needed.
- Slotted Pin Shackle: Eliminates the risk of fouling lines, enhancing safety and ease of use.
Applications
This versatile block is ideal for a variety of applications on boats up to 10 meters (33 feet) in length, including:
- Mainsheet and halyard systems
- Vang control lines
- Spinnaker deployment and control
Materials
- Nylatron® Sheave: Provides excellent resistance to wear and smooth operation under load.
- Grade 316 Stainless Steel: Used for the load strap and head fitting, offering superior corrosion resistance in marine environments.
- Fiber Reinforced Nylon Cheeks: Impact and UV resistant, ensuring durability and longevity.
Specifications
| Specification | Details |
|---|---|
| Sheave Diameter: | 50mm (2") |
| Maximum Rope Diameter: | 12mm (1/2") |
| Maximum Pin Diameter: | 5mm (3/16") |
| Minimum Working Load (MWL): | 750kg (1,650lbs) |
| Breaking Load (B.L.): | 1,500kg (3,310lbs) |
| Weight: | 118g (4.1oz) |
