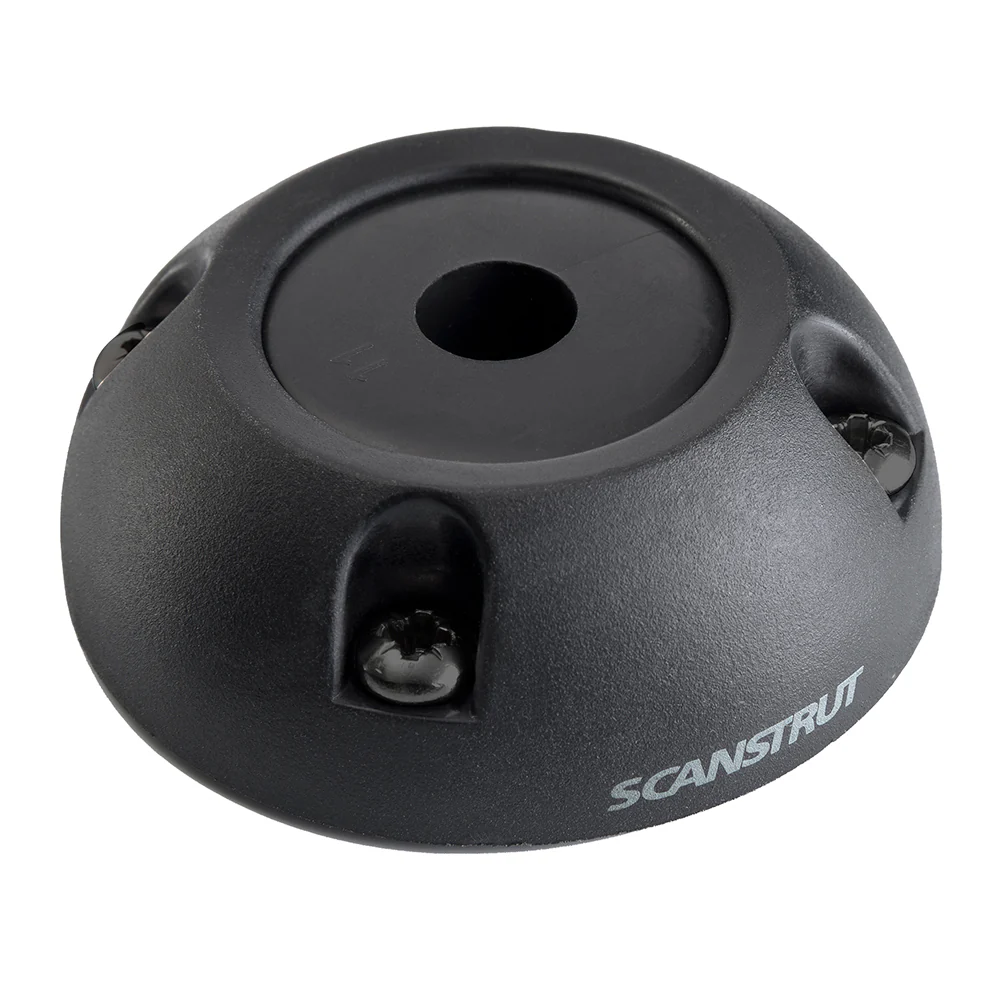

Ensure your marine equipment stays protected from water ingress with the DS30-P-BLK Vertical Cable Seal. Specifically designed for boating applications, this premium IP68 waterproof seal guarantees a secure and watertight installation for your antenna and navigation light cables, reducing installation time and enhancing the reliability of your vessel's electrical systems.

Key Features

• 100% Waterproof Installation: Achieves an IP68 rating, ensuring complete protection against water and moisture.
• Effortless Installation: Comes with both pre-drilled and blank inner seals, simplifying the installation process.
• No Connector Removal Needed: The split-seal design allows installation without the need to remove cable connectors, saving time and effort.
• Durable Dome Shape: The multi-functional dome-shaped profile offers a strong, impact-resistant design with an additional water shield for enhanced protection.

Technical Specifications

Specification	Details
Cable Size (Diameter)	0.35" to 0.55" (9 - 14 mm)
Connector Size	Up to 1.18" (30 mm) in diameter
Height	0.81" (20.5 mm)
Color	Black
Orientation	Vertical
Material	ASA Plastic

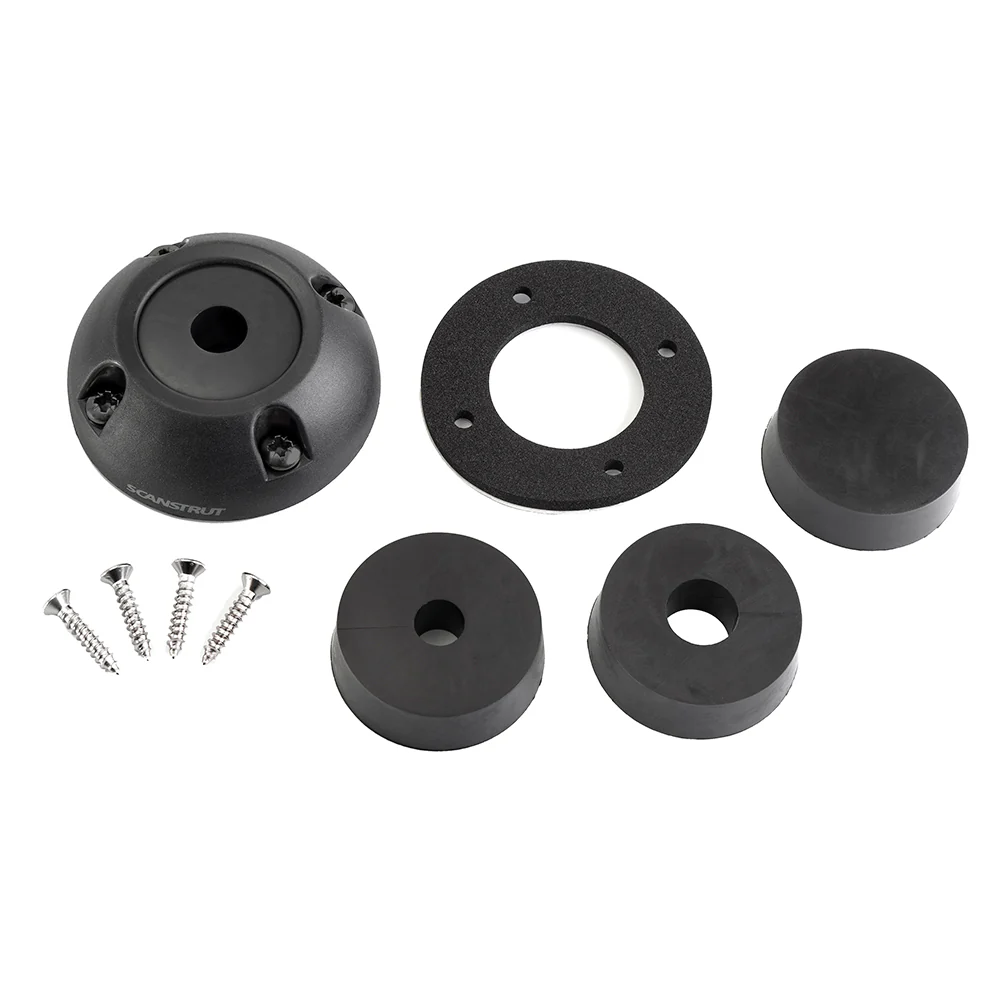

Included in the Package

• Cable Seal
• Mounting Hardware
• Installation Manual

Sold individually.

Additional Specifications

• Type: Deck Seal
• Box Dimensions: 2"H x 4"W x 9"L
• Weight: 0.35 lbs
• UPC: 5060114797376
