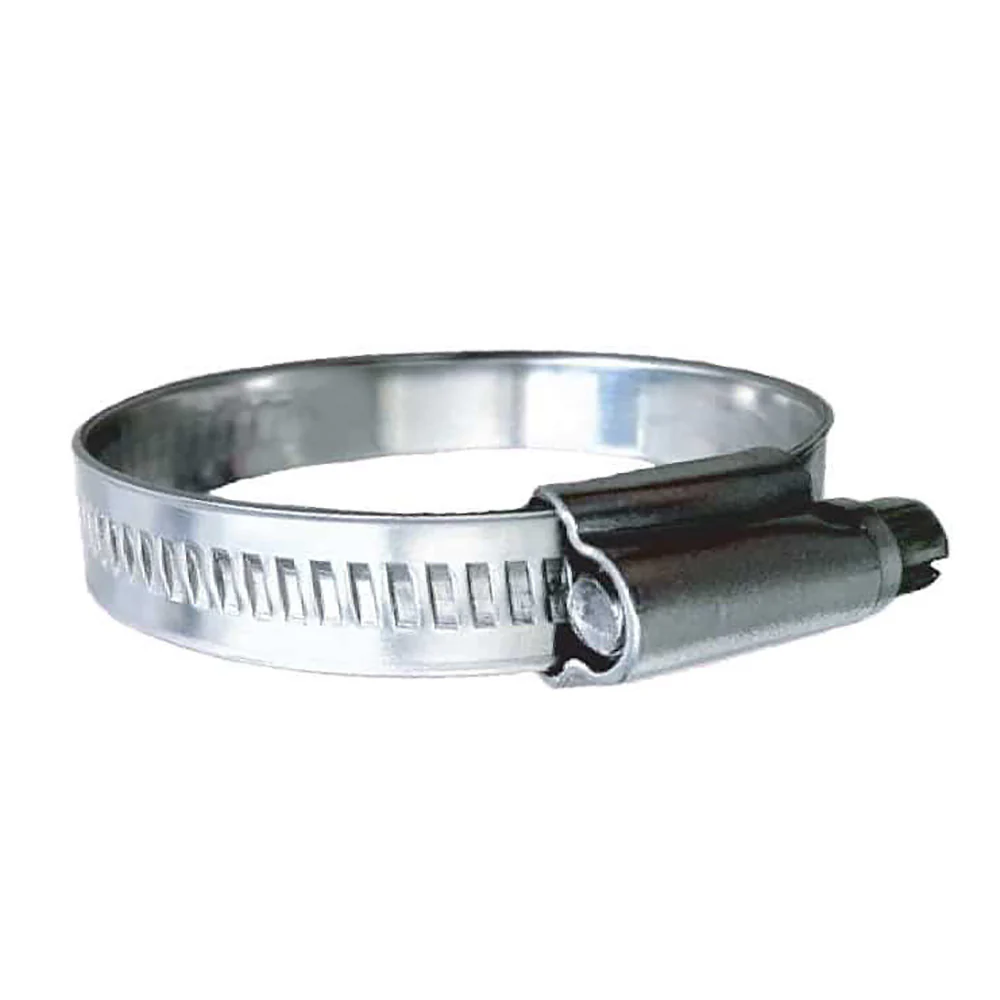

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" 2-1/4") Clamping Range - 10-Pack - SAE Size 28
Ensure reliable and secure hose connections on your vessel with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for marine and boating applications, these clamps offer exceptional durability and clamping force, making them ideal for a variety of hose connections on your boat.
Why Choose Our 316 SS Non-Perforated Worm Gear Hose Clamps?
Crafted from high-quality AISI 316 stainless steel, these marine-grade clamps are built to withstand corrosive marine environments. The non-perforated, smooth interior and rolled edges prevent hose damage while providing a strong, consistent clamping force. The compact, one-piece housing enhances durability and ensures one of the highest clamping force ratings among worm gear clamps.
Key Features
- High-Strength Material: Made from AISI 316 stainless steel for superior corrosion resistance and longevity in marine settings.
- Non-Perforated Band: 11.7 mm (0.46”) wide band with a smooth interior to prevent hose abrasion and ensure a secure fit.
- Robust Clamping Force: 16mm (0.63”) wide housing provides maximum clamping force, ideal for critical hose connections.
- Screw Specifications: Features a 7mm stainless steel screw head for precise tightening.
Product Specifications
| Attribute | Details |
|---|---|
| SAE Size | 28 |
| Hose Inner Diameter | 1-1/2" - 1-5/8" |
| Clamping Range | 1-3/4" – 2-1/4" (44-56 mm) |
| Recommended Torque | 45-60 inch lbs |
| Band Width | 11.7 mm (0.46") |
| Band Thickness | 0.9 mm |
| Screw Head Diameter | 7.0 mm |
| Pack Quantity | 10-Pack |
Recommendations for Marine Use
- Accurate Sizing: Measure the hose outer diameter (O.D.) before selecting the clamp size to ensure a proper fit.
- Enhanced Security: Use double clamps on each hose end for critical applications to prevent leaks and maintain integrity.
- Alternative Options: Consider our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses, such as exhaust hoses.
Durable Construction for Marine Environments
- Band & Housing: Constructed from 316 stainless steel, the 11.7 mm wide band is 0.9mm thick, providing strength and resistance to corrosion.
- Screw Drive: Features a 7.0 mm 316 stainless steel screw head for reliable and corrosion-resistant tightening mechanisms.
Ensure reliable and secure hose connections on your vessel with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for marine and boating applications, these clamps offer exceptional durability and clamping force, making them ideal for a variety of hose connections on your boat.
Why Choose Our 316 SS Non-Perforated Worm Gear Hose Clamps?
Crafted from high-quality AISI 316 stainless steel, these marine-grade clamps are built to withstand corrosive marine environments. The non-perforated, smooth interior and rolled edges prevent hose damage while providing a strong, consistent clamping force. The compact, one-piece housing enhances durability and ensures one of the highest clamping force ratings among worm gear clamps.
Key Features
- High-Strength Material: Made from AISI 316 stainless steel for superior corrosion resistance and longevity in marine settings.
- Non-Perforated Band: 11.7 mm (0.46”) wide band with a smooth interior to prevent hose abrasion and ensure a secure fit.
- Robust Clamping Force: 16mm (0.63”) wide housing provides maximum clamping force, ideal for critical hose connections.
- Screw Specifications: Features a 7mm stainless steel screw head for precise tightening.
Product Specifications
| Attribute | Details |
|---|---|
| SAE Size | 28 |
| Hose Inner Diameter | 1-1/2" - 1-5/8" |
| Clamping Range | 1-3/4" – 2-1/4" (44-56 mm) |
| Recommended Torque | 45-60 inch lbs |
| Band Width | 11.7 mm (0.46") |
| Band Thickness | 0.9 mm |
| Screw Head Diameter | 7.0 mm |
| Pack Quantity | 10-Pack |
Recommendations for Marine Use
- Accurate Sizing: Measure the hose outer diameter (O.D.) before selecting the clamp size to ensure a proper fit.
- Enhanced Security: Use double clamps on each hose end for critical applications to prevent leaks and maintain integrity.
- Alternative Options: Consider our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses, such as exhaust hoses.
Durable Construction for Marine Environments
- Band & Housing: Constructed from 316 stainless steel, the 11.7 mm wide band is 0.9mm thick, providing strength and resistance to corrosion.
- Screw Drive: Features a 7.0 mm 316 stainless steel screw head for reliable and corrosion-resistant tightening mechanisms.
Original: $41.99
-70%$41.99
$12.60Description
Ensure reliable and secure hose connections on your vessel with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for marine and boating applications, these clamps offer exceptional durability and clamping force, making them ideal for a variety of hose connections on your boat.
Why Choose Our 316 SS Non-Perforated Worm Gear Hose Clamps?
Crafted from high-quality AISI 316 stainless steel, these marine-grade clamps are built to withstand corrosive marine environments. The non-perforated, smooth interior and rolled edges prevent hose damage while providing a strong, consistent clamping force. The compact, one-piece housing enhances durability and ensures one of the highest clamping force ratings among worm gear clamps.
Key Features
- High-Strength Material: Made from AISI 316 stainless steel for superior corrosion resistance and longevity in marine settings.
- Non-Perforated Band: 11.7 mm (0.46”) wide band with a smooth interior to prevent hose abrasion and ensure a secure fit.
- Robust Clamping Force: 16mm (0.63”) wide housing provides maximum clamping force, ideal for critical hose connections.
- Screw Specifications: Features a 7mm stainless steel screw head for precise tightening.
Product Specifications
| Attribute | Details |
|---|---|
| SAE Size | 28 |
| Hose Inner Diameter | 1-1/2" - 1-5/8" |
| Clamping Range | 1-3/4" – 2-1/4" (44-56 mm) |
| Recommended Torque | 45-60 inch lbs |
| Band Width | 11.7 mm (0.46") |
| Band Thickness | 0.9 mm |
| Screw Head Diameter | 7.0 mm |
| Pack Quantity | 10-Pack |
Recommendations for Marine Use
- Accurate Sizing: Measure the hose outer diameter (O.D.) before selecting the clamp size to ensure a proper fit.
- Enhanced Security: Use double clamps on each hose end for critical applications to prevent leaks and maintain integrity.
- Alternative Options: Consider our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses, such as exhaust hoses.
Durable Construction for Marine Environments
- Band & Housing: Constructed from 316 stainless steel, the 11.7 mm wide band is 0.9mm thick, providing strength and resistance to corrosion.
- Screw Drive: Features a 7.0 mm 316 stainless steel screw head for reliable and corrosion-resistant tightening mechanisms.
