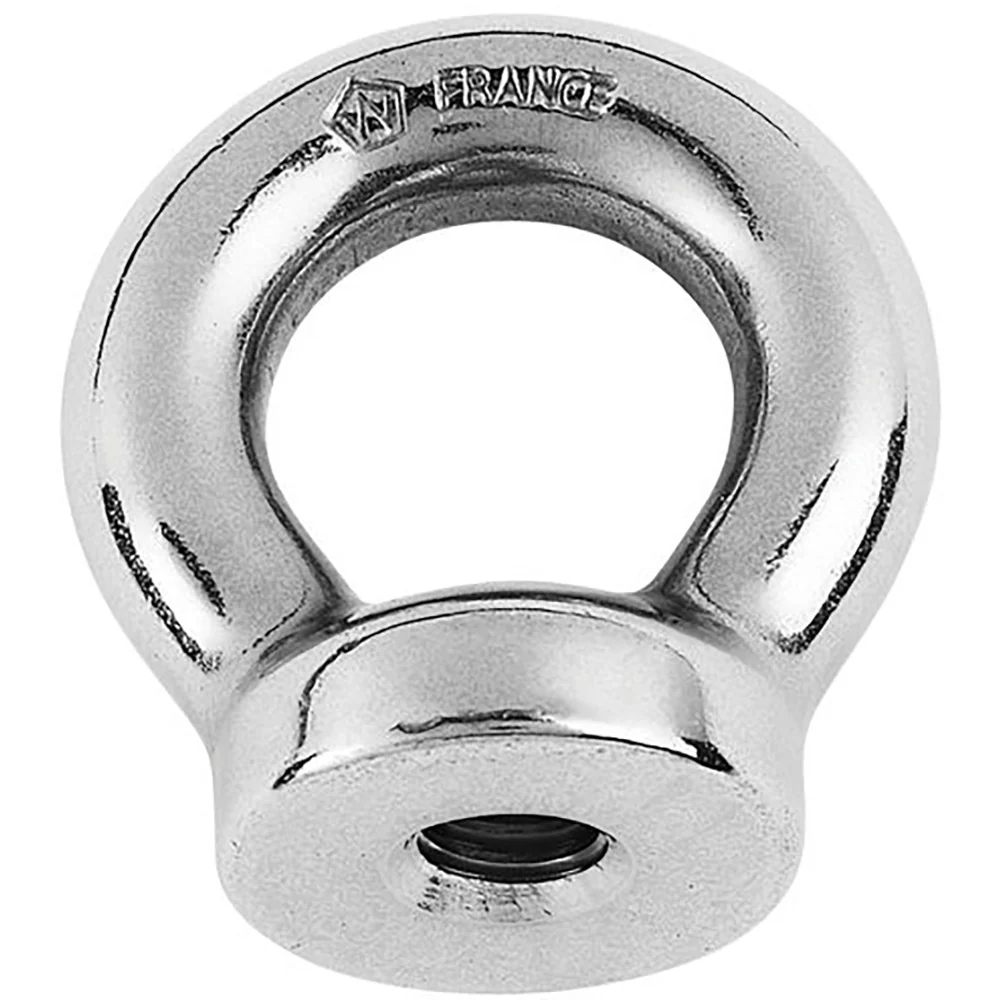

The 12mm Eye Nut (Thread M12 x 175mm) is an indispensable fastening component tailored for marine and boating enthusiasts. Whether you're securing deck fittings, attaching towing hooks, or setting up waterskiing lines, this eye nut offers unmatched strength and resilience. Manufactured from top-grade 316L stainless steel, it boasts superior corrosion resistance, ensuring long-lasting performance even in the most challenging marine environments.

Features

• Durable single-piece forged construction ensures reliable performance in all fastening applications
• High breaking load capacity provides maximum safety and security
• Available in a variety of sizes to meet diverse marine installation needs
• Corrosion-resistant 316L stainless steel ensures longevity in saltwater and humid conditions

Applications

• Mounting and securing deck fittings and railings on boats and yachts
• Attaching towing points for watercraft and safety lines
• Setting up waterskiing lines and anchoring equipment
• General fastening needs in marine vessels, including boats, ships, and marine equipment

Specifications

Material	316L Stainless Steel
Thread Size	M12 x 175mm
Breaking Load	15,430 lbs / 7,000 kg
Weight	0.386 lbs / 175 g

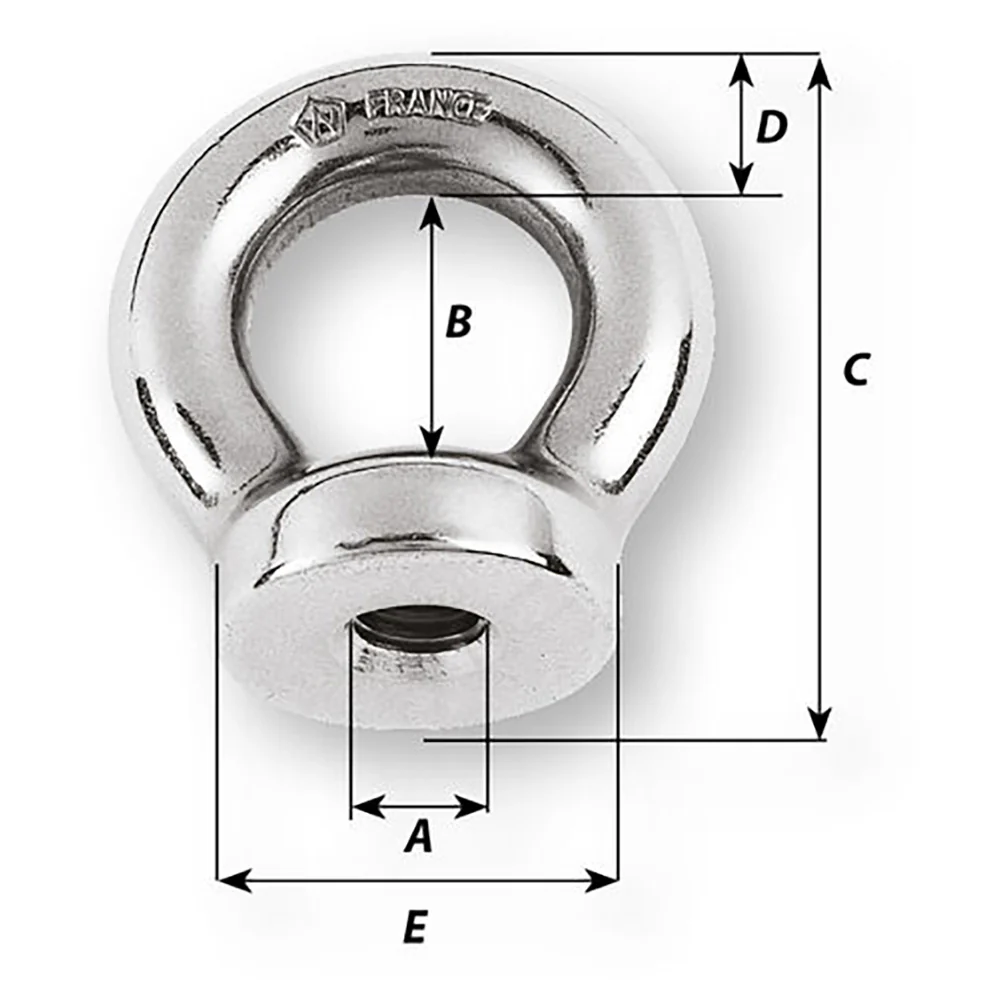

Dimensions

Dimension	Measurement
Thread Length (A)	M12 x 175mm
Diameter (B)	1 1/16" / 27mm
Overall Height (C)	2 13/64" / 56mm
Width (D)	15/32" / 12mm
Eye Diameter (E)	1 11/32" / 34mm

Load Ratings

• Working Load (WL): Designed for rigorous nautical applications where high load capacity is essential
• Working Load Limit (WLL): Intended for industrial use with a safety factor of 5 times the breaking load. Calculated as WLL = Breaking load / 5

Sold individually

Download Quick Guide (PDF)
