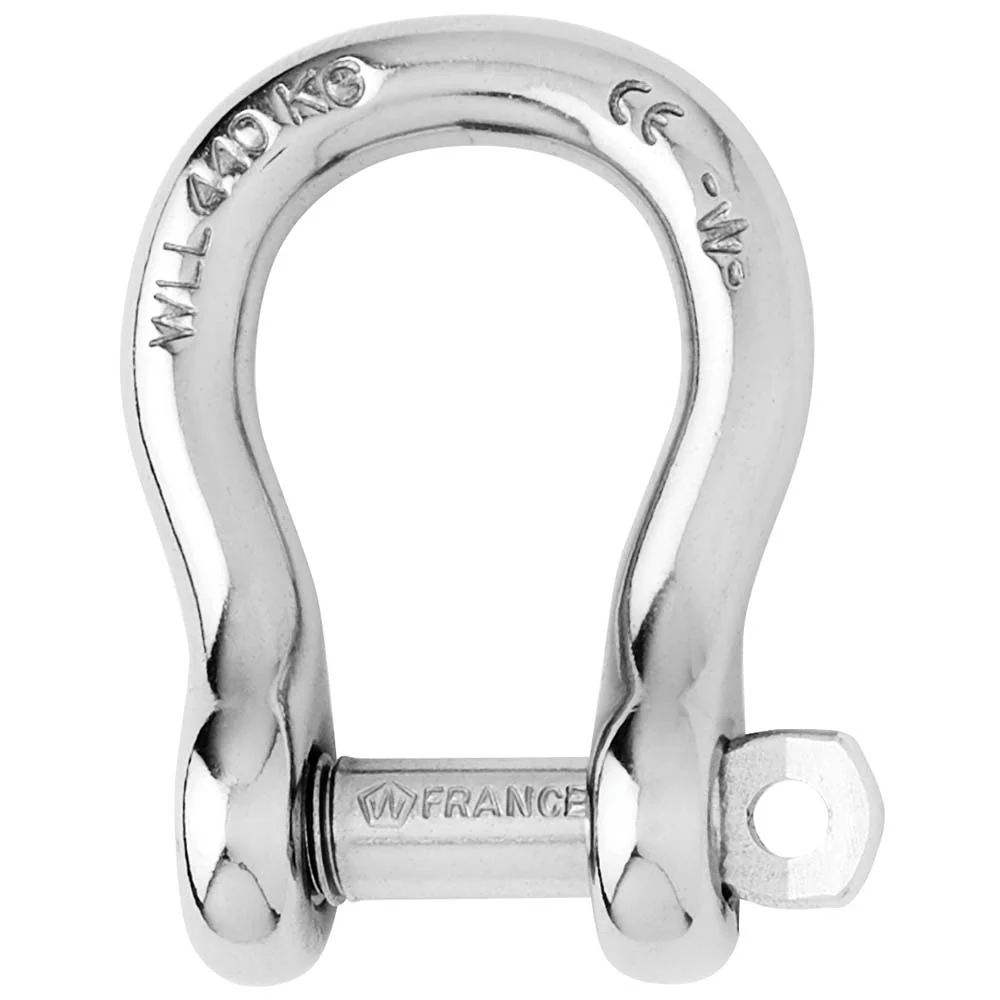

The Captive Pin Bow Shackle is an essential component for marine and boating applications, offering unmatched durability and reliability in harsh marine environments. Crafted from high-grade 316L stainless steel, this shackle ensures long-lasting performance, making it ideal for secure boat rigging and lifting tasks.

Features

• Forged from premium grade 316L stainless steel for excellent corrosion resistance
• Captive pin design ensures the pin remains connected to the shackle body at all times, even when open
• Secure locking mechanism with multiple indentations to prevent accidental opening
• Vibration-resistant construction eliminates the risk of loosening
• Exceptional working and breaking load capacities for demanding marine applications
• Single-handed operation enhances safety and ease of use
• Designed for industrial lifting applications with a Working Load Limit (WLL) suited for heavy-duty tasks
• CE marked with batch number for quality assurance and traceability

Applications

• Ideal for rigging on boats and yachts where ample space is required
• Supports multiple lines or cables for versatile marine setups

Specifications

Material	316L Stainless Steel Grade
Working Load	1,050 lbs
Working Load Limit (WLL)	660 lbs
Breaking Load	3,300 lbs
Weight	0.042 lbs

Dimensions

Dimension	Size
A	29/32 inches
B	25/64 inches
C	15/64 inches
D	7/16 inches
D Diameter	13/64 inches
E	13/64 inches
M	1-1/32 inches
