Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16"
Enhance the safety and efficiency of your marine rigging with our premium Captive Pin Bow Shackle. Expertly crafted from high-grade 316L stainless steel, this shackle is built to endure the demanding conditions of the marine environment, ensuring reliable performance for all your boating and maritime needs.
Features
- Superior Material: Forged from grade 316L stainless steel, offering exceptional corrosion resistance ideal for saltwater applications.
- Captive Pin Design: The pin remains securely attached to the shackle body at all times, even when fully opened, preventing loss overboard.
- Secure Locking Mechanism: Features multiple indentations to lock the pin in place, ensuring it stays locked during vibrations and heavy use.
- Vibration Resistant: Engineered to resist loosening caused by vibrations, maintaining consistent safety and reliability.
- High Load Capacity: Delivers outstanding working and breaking loads, suitable for heavy-duty marine lifting and towing applications.
- Single-Handed Operation: Designed for ease of use and enhanced safety, allowing for quick and efficient handling while on deck.
- Industrial Grade: Rated for industrial applications, including lifting and towing, ensuring maximum performance under demanding conditions.
- Compliance and Traceability: CE marked and includes a unique batch number for quality assurance and traceability.
Applications
- Marine Rigging: Perfect for securing sails, masts, and other rigging components where ample space is required.
- Multiple Attachments: Allows the attachment of several lines or cables simultaneously, providing versatile securing options.
- Boat Mooring: Ideal for mooring lines, dock lines, and tow points, ensuring secure connections in various marine settings.
- Heavy Lifting: Suitable for lifting engines, sails, and other heavy equipment onboard vessels.
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Working Load | 2,200 lbs |
| Working Load Limit (WLL) | 1,630 lbs |
| Breaking Load | 8,150 lbs |
| Weight | 0.165 lbs |
Dimensions

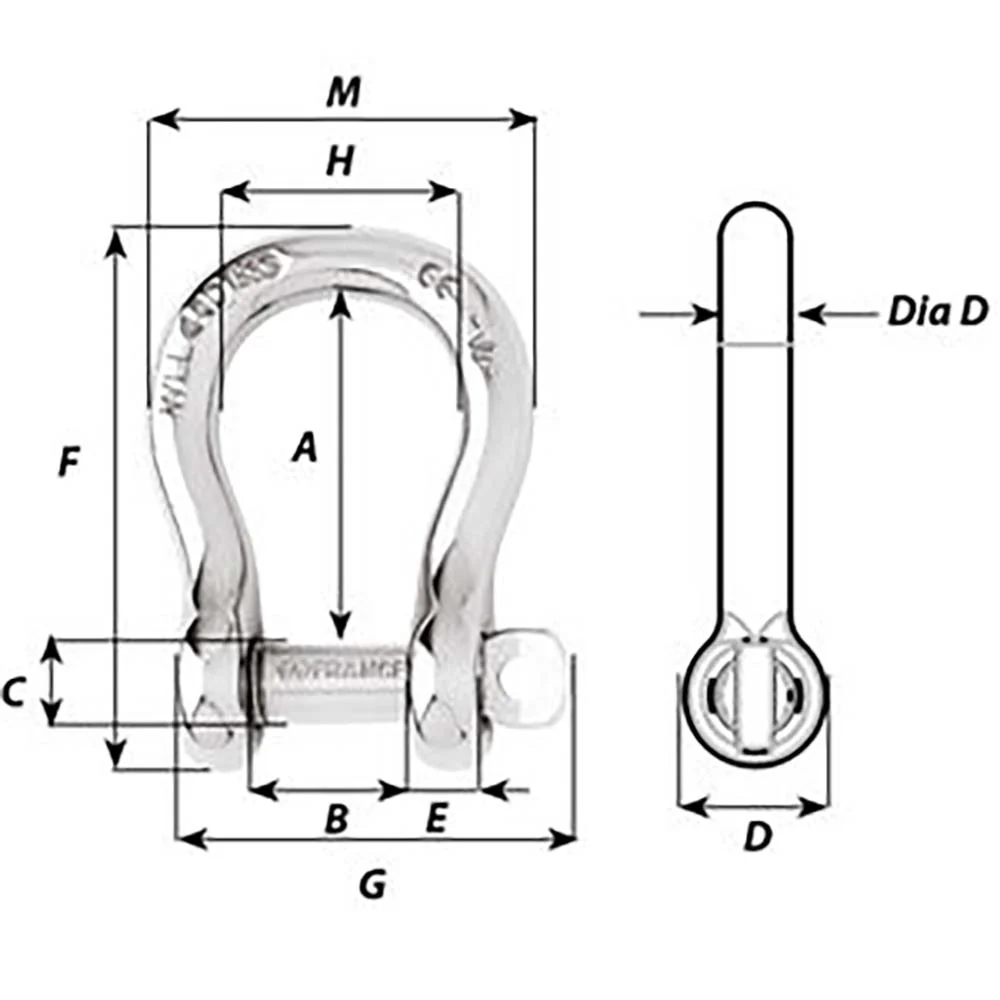

Refer to the second image for a visual representation of dimensions.
| Dimension | Size |
|---|---|
| A | 1-29/64" |
| B | 5/8" |
| C | 23/64" |
| D | 45/64" |
| D Diameter | 5/16" |
| E | 5/16" |
| M | 1-21/32" |
