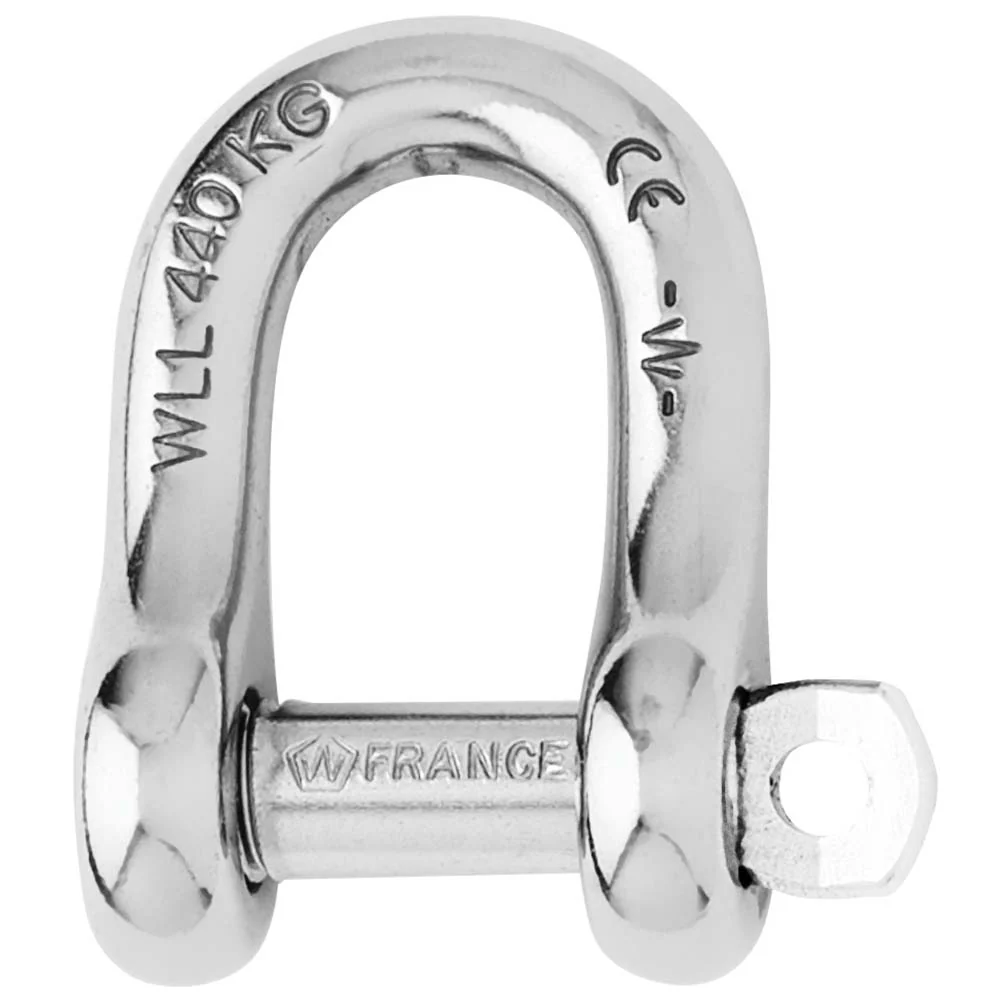

Wichard Captive Pin D Shackle - Diameter 8mm - 5/16"
Ensure the safety and reliability of your marine equipment with our premium Captive Pin D Shackle. Designed specifically for marine and boating applications, this durable shackle provides exceptional strength and longevity, making it the perfect choice for your boat, yacht, or other marine vessels.
Features
- Forged from grade 316L stainless steel, ensuring superior corrosion resistance in marine environments
- Captive pin design keeps the pin connected to the body at all times, even when open
- Secure locking mechanism with multiple indentations to prevent accidental release
- Engineered to withstand vibrations, eliminating the risk of loosening
- High working and breaking loads provide reliable performance under heavy-duty conditions
Applications
- Standard shackle applications such as securing lines and rigging on boats and yachts
- Attachment points for blocks, cleats, and other marine hardware
- Marine mooring systems, anchoring setups, and towing equipment
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load | 2200 lbs |
| WLL (Working Load Limit) | 1580 lbs |
| Breaking Load | 7930 lbs |
| Weight | 0.134 lbs |
Dimensions

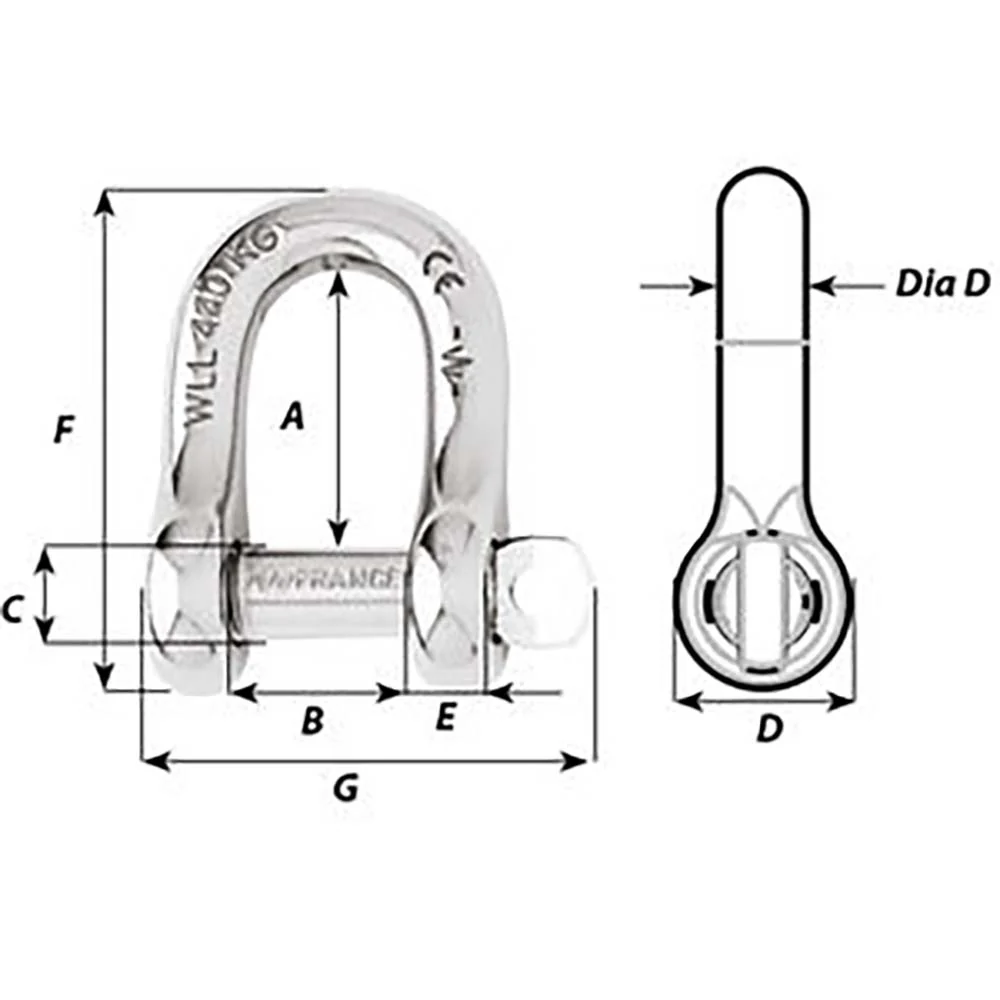

Refer to the second image for a visual representation of the dimensions.
| Dimension | Measurement (inches) |
|---|---|
| A | 1-1/32" |
| B | 5/8" |
| C | 23/64" |
| D | 45/64" |
| D Diameter | 5/16" |
| E | 5/16" |
| F | 1-27/32" |
| G | 1-21/32" |
