The Captive Pin Twisted Shackle - Diameter 6mm - 1/4" is an essential hardware component for marine and boating applications, ensuring secure and reliable connections in various rigging and anchoring systems. Crafted from high-grade stainless steel, this shackle is designed to withstand the harsh marine environment, providing durability and safety for all your boating needs.

Features

• Forged from grade 316L stainless steel for superior corrosion resistance
• Captive pin design ensures the pin remains connected to the body at all times, even when open
• Secure locking mechanism with pin locked into one of the indentations
• Prevents loosening due to vibrations, ensuring consistent performance
• High working and breaking loads for reliable strength and safety
• Single-handed operation enhances safety and ease of use

Applications

• Ideal for setups requiring a 90° angle twist, commonly used in sailboat rigging and anchoring systems
• Perfect for attaching unarticulated parts, such as securing blocks on rails or during purchases
• Versatile use in various marine equipment installations, ensuring secure and stable connections

Specifications

Material	316 Stainless Steel Grade
Working Load	1,320 lbs
Breaking Load	4,620 lbs
Weight	0.086 lbs

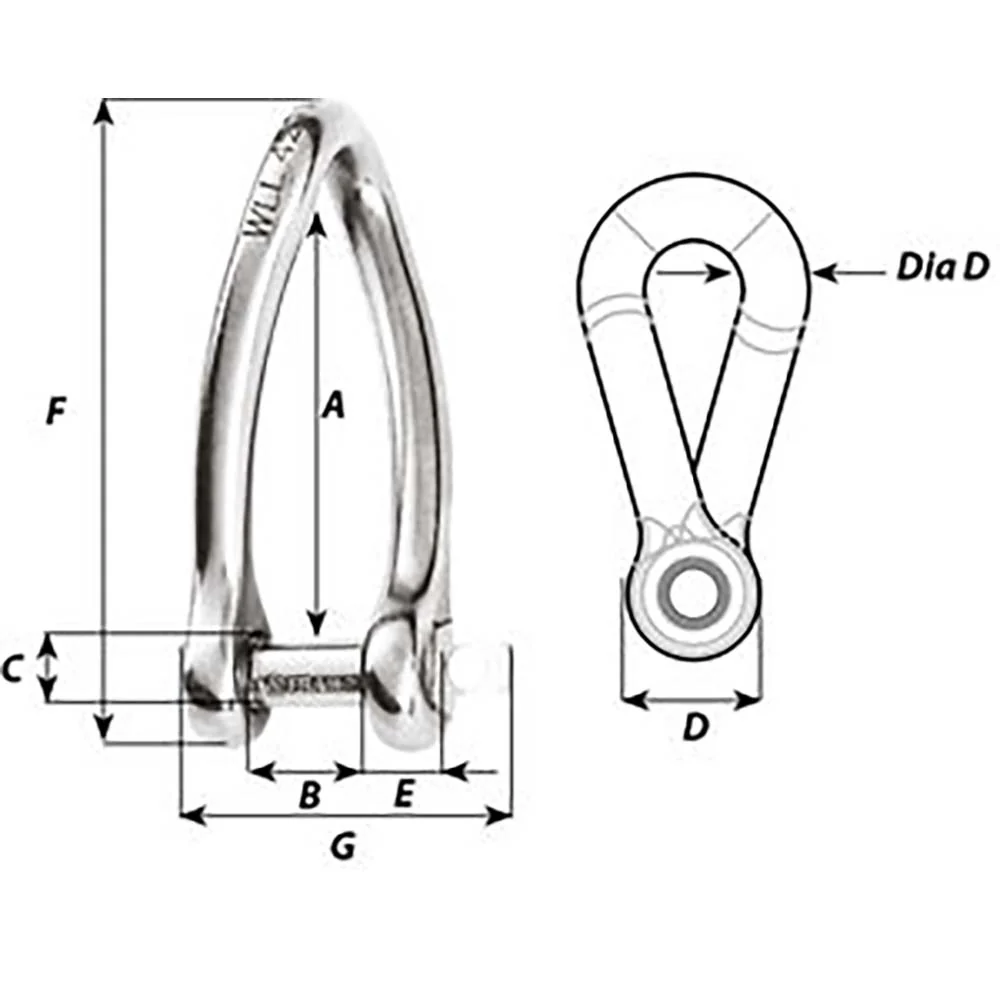

Dimensions

Dimension	Size (inches)
A	1-47/64"
B	15/32"
C	9/32"
D	35/64"
D Diameter	15/64"
E	15/64"
F	2-23/64"
G	1-7/32"

Ensure the Captive Pin Twisted Shackle is the perfect addition to your marine hardware collection, providing strength, reliability, and ease of use for all your boating and marine applications.
