Wichard Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"
The Eye Strap is an essential component for any marine or boating application, designed to provide reliable and secure fastening solutions. Crafted from high-quality 316L stainless steel, this eye strap ensures durability and performance even in the harshest marine environments.
Key Features
- Manufactured from premium 316L stainless steel, offering exceptional corrosion resistance
- Drop-forged for outstanding strength and long-lasting performance
- Round design minimizes wear on connected components such as straps and ropes
Ideal Applications
- Secure fastening in various marine settings
- Attachment points for straps and cordage on boats and other marine equipment
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Breaking Load | 5290 lbs / 2400 kg |
| Weight | 0.035 lbs / 16 g |

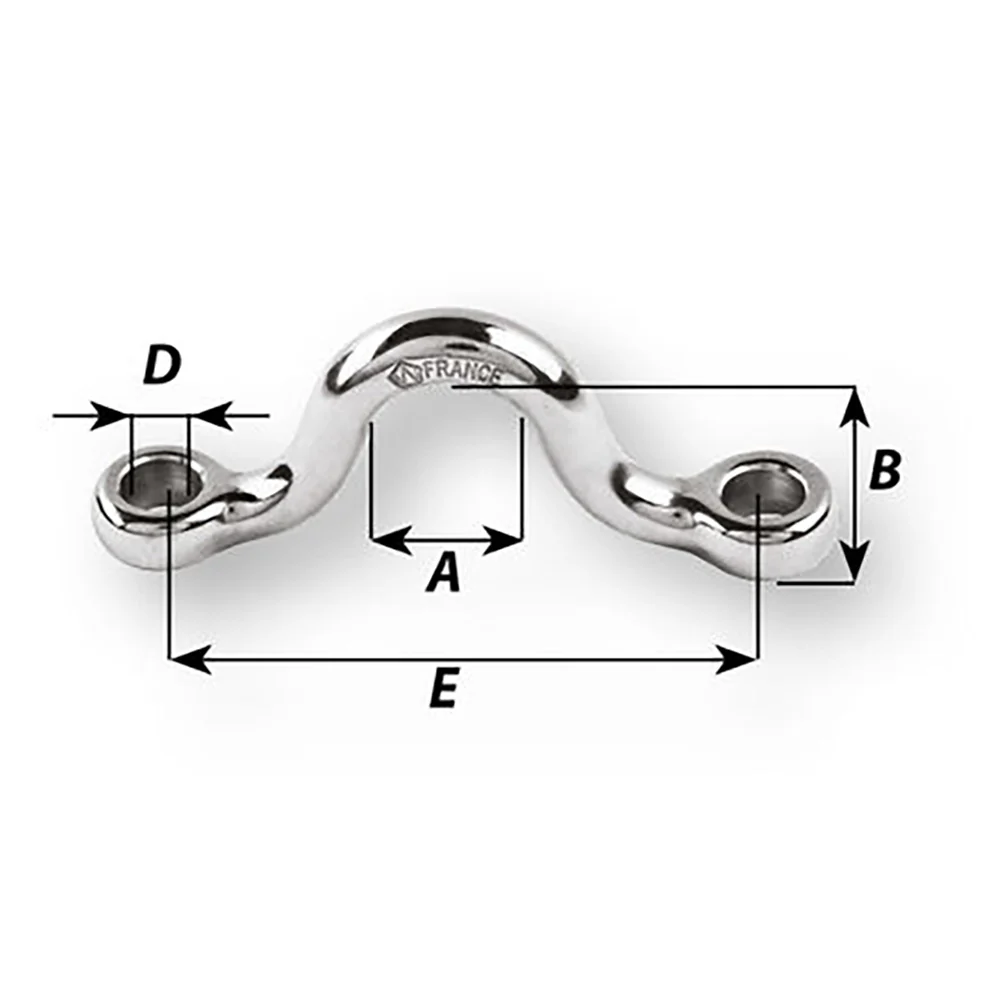

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 15/32" | 12 mm |
| B | 5/8" | 16 mm |
| D Diameter | 15/64" | 6 mm |
| E | 1 49/64" | 45 mm |
Load Ratings
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable use on your vessel.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load. WLL = Breaking Load / 5
Note: Sold individually.
