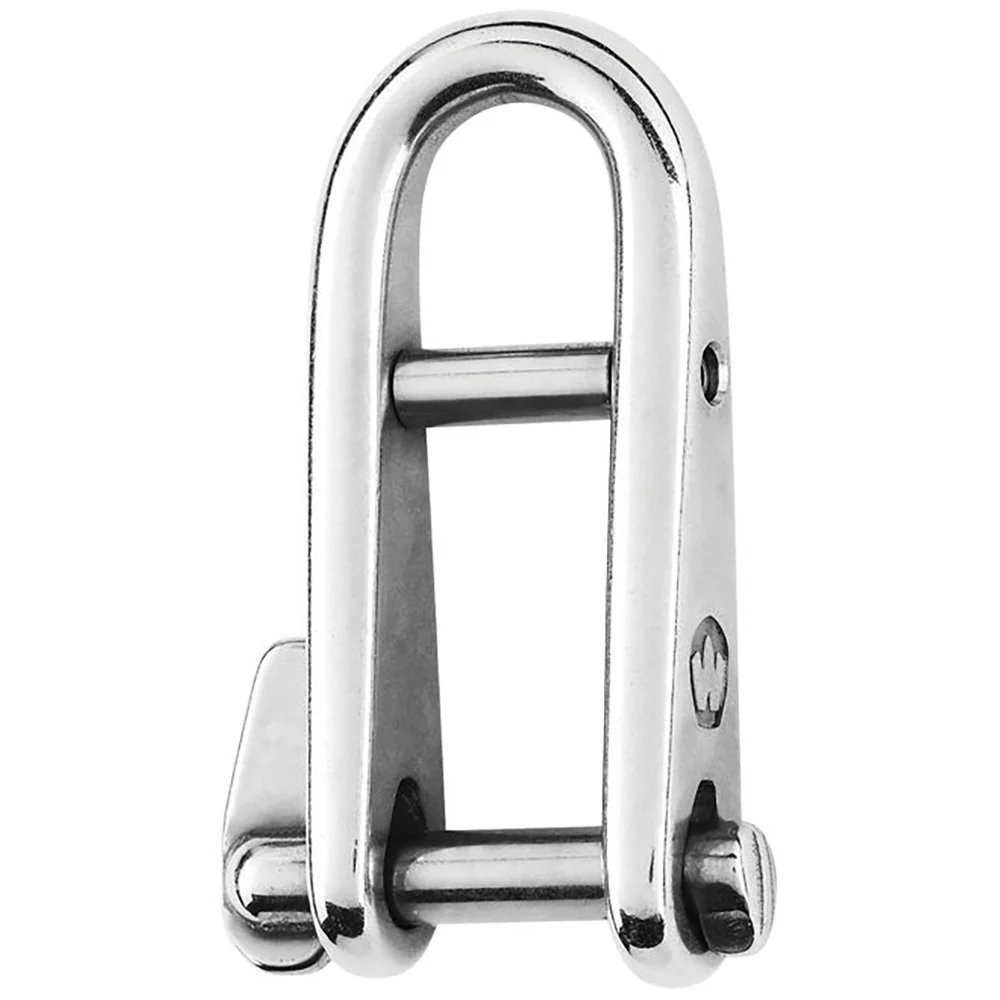

Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter
The HR Key Pin Shackle with Bar is a robust and reliable fastening solution designed specifically for marine and boating applications. Crafted from high-resistance stainless steel, this 6mm pin diameter shackle ensures exceptional strength and durability, making it ideal for heavy-duty tasks such as lifting, securing sails, and handling high-load requirements on your vessel.
Features
- Premium Construction: Forged D shackle made from HR 17.4 PH stainless steel grade, ensuring maximum strength and longevity in harsh marine environments.
- Superior Load Capacity: Offers outstanding working and breaking load ratings, making it suitable for demanding applications.
- Enhanced Resistance: HR shackles can be up to 60% more resistant than standard 316L stainless steel shackles, providing added safety and reliability.
- Industrial-Grade WLL: Working Load Limit (WLL) is tailored for industrial applications such as lifting and securing heavy loads.
- Certified Quality: Equipped with CE marking, ensuring compliance with international safety and quality standards.
Applications
- High-Load Requirements: Perfect for applications that demand high load-bearing capabilities, such as lifting heavy equipment or securing large sails.
- Frequent Operation: Ideal for halyards and other applications that require the shackle to be opened and closed frequently without compromising strength.
- Not for Mooring: Specifically designed for lifting and securing purposes; not recommended for mooring applications.
Specifications
| Parameter | Value |
|---|---|
| Material | HR 17.4 PH Stainless Steel Grade |
| Working Load | 1320 lb / 600 kg |
| Breaking Load | 4850 lb / 2200 kg |
| Weight | 0.117 lb / 53 g |

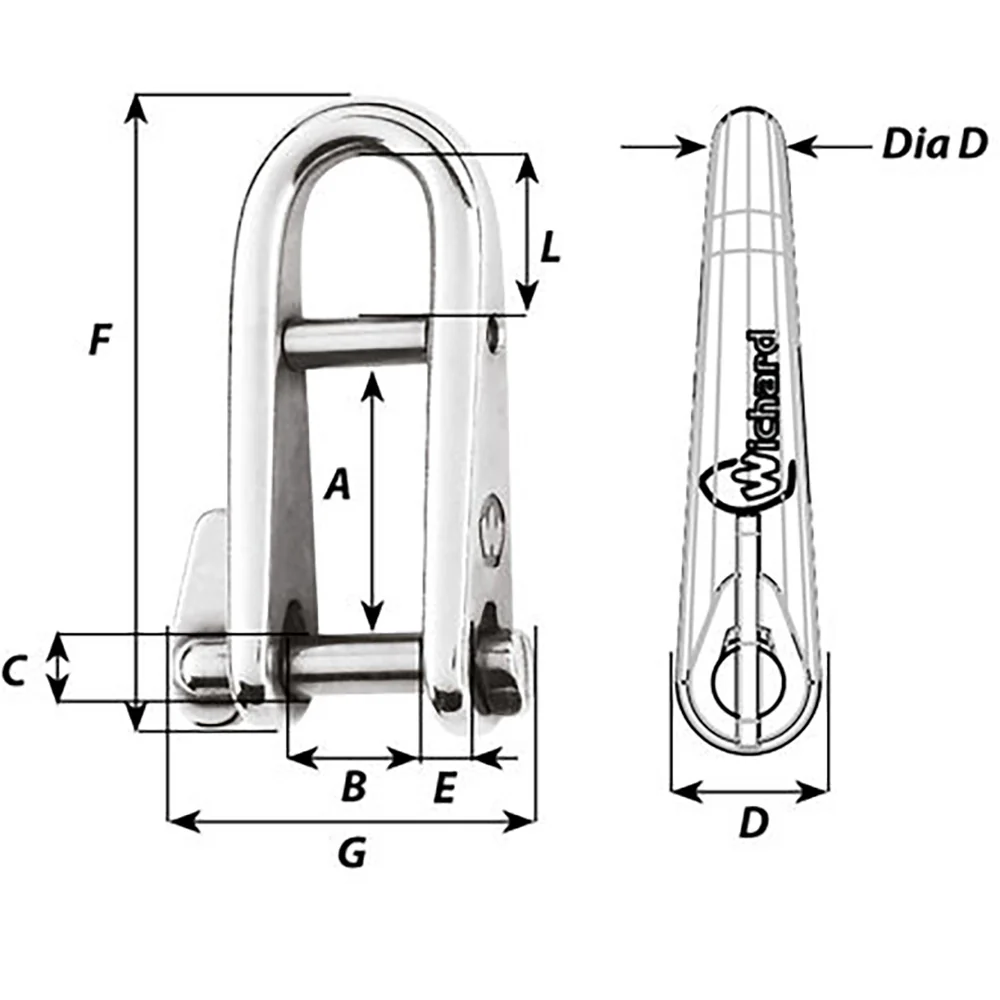

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 49/64" | 45 mm |
| B | 5/8" | 16 mm |
| C | 15/64" | 6 mm |
| D | 33/64" | 13 mm |
| E | 5/32" | 4 mm |
| F | 2 23/64" | 60 mm |
| G | 1 29/64" | 37 mm |
| L | 19/32" | 15 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications requiring reliable load-bearing capacity.
- Working Load Limit (WLL): Designed exclusively for industrial applications. The safety factor is calculated as five times the breaking load. WLL = Breaking Load / 5.
- High Resistance (HR): Ensures increased durability and performance in demanding marine environments.
Note: Sold as an individual unit.
