Wichard Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"
The Self-Locking Allen Head Pin Bow Shackle is engineered for marine and boating applications, providing secure and reliable connections in harsh marine environments. Made from premium grade 316L stainless steel, this bow shackle ensures exceptional durability and resistance to corrosion, making it an indispensable component for your vessel’s rigging and anchoring needs.
Features
- Self-locking twisted shackle with an Allen head pin forged from grade 316L stainless steel
- Secure locking mechanism with the pin engaging one of the predefined indentations
- Flush pin head design prevents snagging and ensures smooth operation
- Vibration-resistant construction eliminates the risk of loosening
- High working and breaking loads suitable for heavy-duty marine use
- Working Load Limit (WLL) designated for industrial applications such as lifting
Applications
- Linking chains and anchors securely on boats and yachts
- Securing halyards to prevent damage to sails
- Reducing clutter in rigging setups for a cleaner deck
- Providing ample room in tight spaces for efficient maneuvering
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load | 1320 lbs / 600 kg |
| Working Load Limit (WLL) | 660 lbs / 300 kg |
| Breaking Load | 3300 lbs / 1500 kg |
| Weight | 0.064 lbs / 29 g |

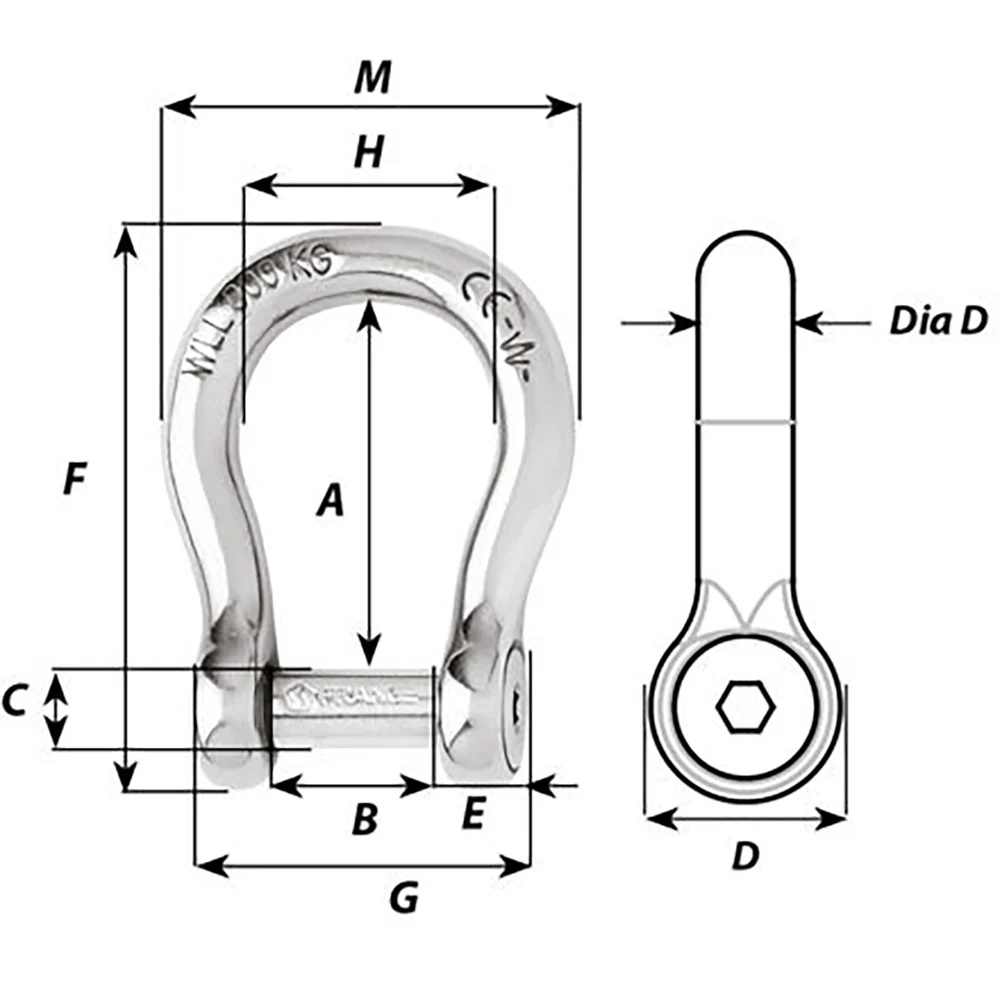

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 1/16" | 27 mm |
| B | 15/32" | 12 mm |
| C | 15/64" | 6 mm |
| D | 15/32" | 12 mm |
| D Diameter | 15/64" | 6 mm |
| E | 13/64" | 5 mm |
| F | 3/64" | 1 mm |
| M | 1 17/64" | 32 mm |
Usage Notes
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable performance on your vessel.
-
Working Load Limit (WLL): Intended for industrial applications only, such as lifting. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5.
*Sold individually
