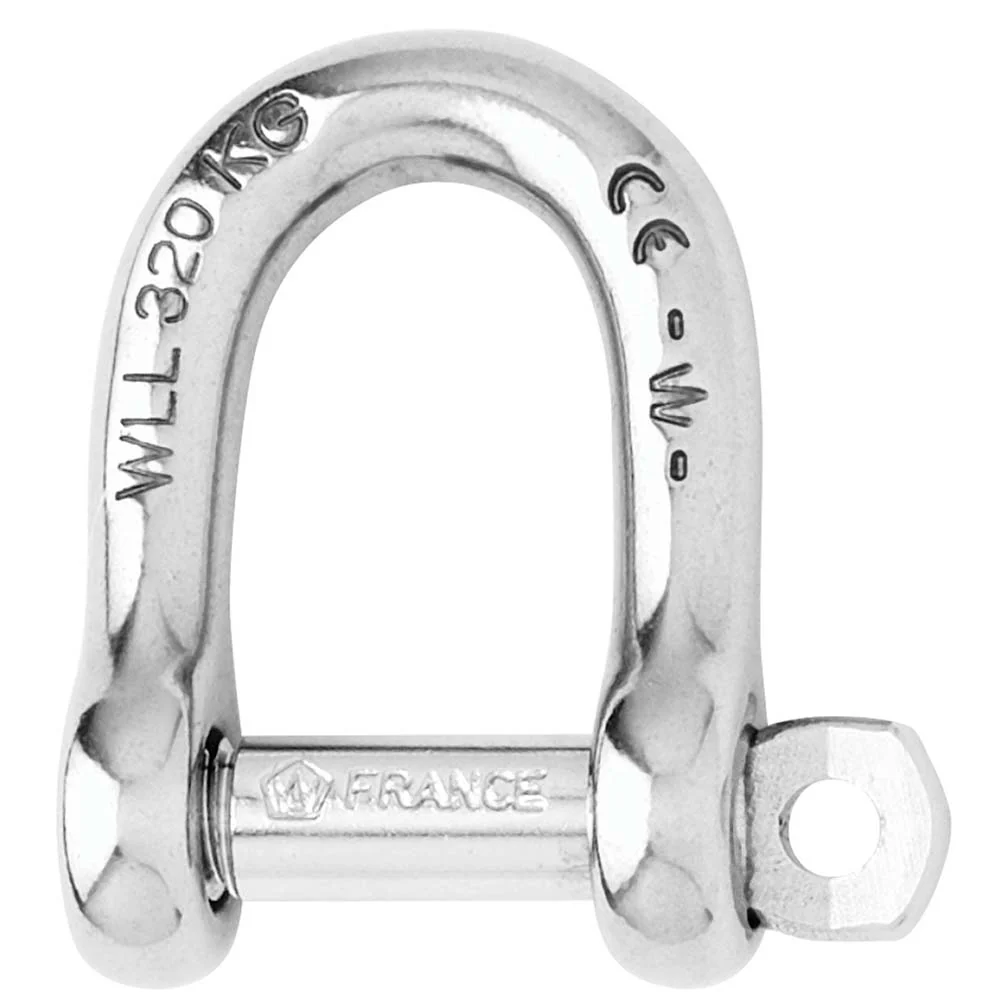

The Self-Locking D Shackle is an essential component for any marine or boating enthusiast, offering reliable and secure connections in a variety of applications. Crafted from high-grade 316L stainless steel, this durable shackle ensures longevity and performance even in the harshest marine environments.

Features

• Constructed from forged 316L stainless steel for superior strength and corrosion resistance
• Self-locking pin mechanism secures the shackle in place within one of the indentations
• Engineered to prevent loosening caused by vibrations, ensuring consistent performance
• High working and breaking loads suitable for demanding marine applications
• Rated Working Load Limit (WLL) specifically designed for industrial lifting and marine use
• Complies with CE standards and includes a unique batch number for quality assurance

Applications

• Standard marine applications such as mooring lines, towing, and securing equipment
• Attachment points for blocks, vessel head tackle, and other nautical hardware
• Ideal for use in lifting operations on boats and ships
• Suitable for both recreational and commercial marine vessels

Specifications

Material	316 Stainless Steel Grade
Working Load	700 lbs
Working Load Limit (WLL)	300 lbs
Breaking Load	1,540 lbs
Weight	0.015 lbs
CE Marking	Yes
Batch Number	Included

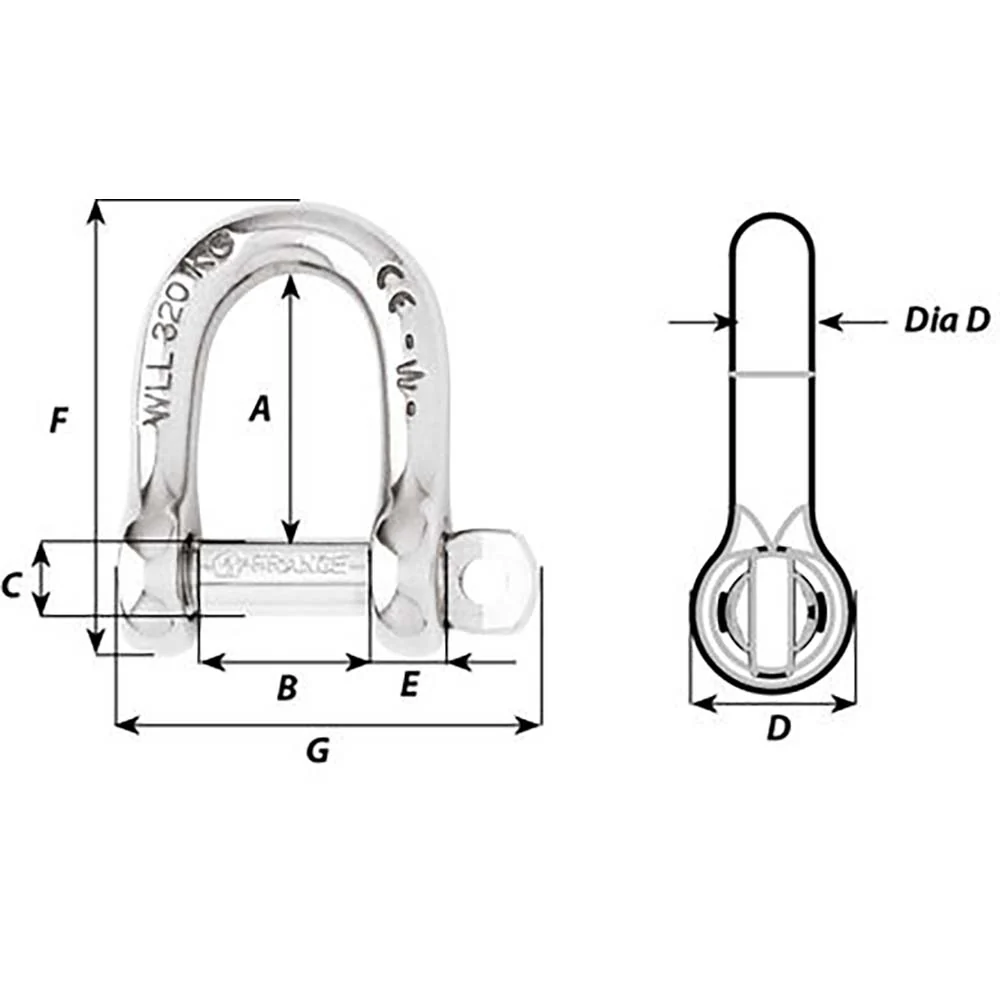

Dimensions

Dimension	Size (inches)
A	33/64"
B	5/16"
C	5/32"
D	5/16"
D Diameter	5/32"
E	1/8"
F	29/32"
G	25/32"

Why Choose Our Self-Locking D Shackle?

When it comes to marine hardware, reliability and durability are paramount. Our Self-Locking D Shackle not only meets but exceeds industry standards, providing you with peace of mind whether you're docking your boat, rigging sails, or handling heavy equipment on deck. The self-locking feature ensures that connections remain secure, reducing the risk of accidents caused by loosened shackles. Invest in quality and performance with our premium D Shackle, designed specifically for the unique demands of the marine environment.
