The Self-Locking Twisted Shackle is an essential component for marine and boating applications, engineered for reliability and durability in harsh environments. Crafted from high-grade stainless steel, this shackle ensures secure connections and exceptional performance on the water.

Features

• Self-locking twisted shackle forged from premium 316L stainless steel
• Secure pin locking into one of the indentations for enhanced safety
• Resistant to loosening caused by vibrations, ensuring lasting integrity
• Exceptional working and breaking load capacities for demanding marine use

Applications

• Ideal for setups requiring a 90° angle twist
• Commonly used to attach unarticulated parts such as blocks on rails or purchase systems

Specifications

Material	316 Stainless Steel Grade
Working Load	1050 lbs
Breaking Load	2420 lbs
Weight	0.035 lbs

Dimensions

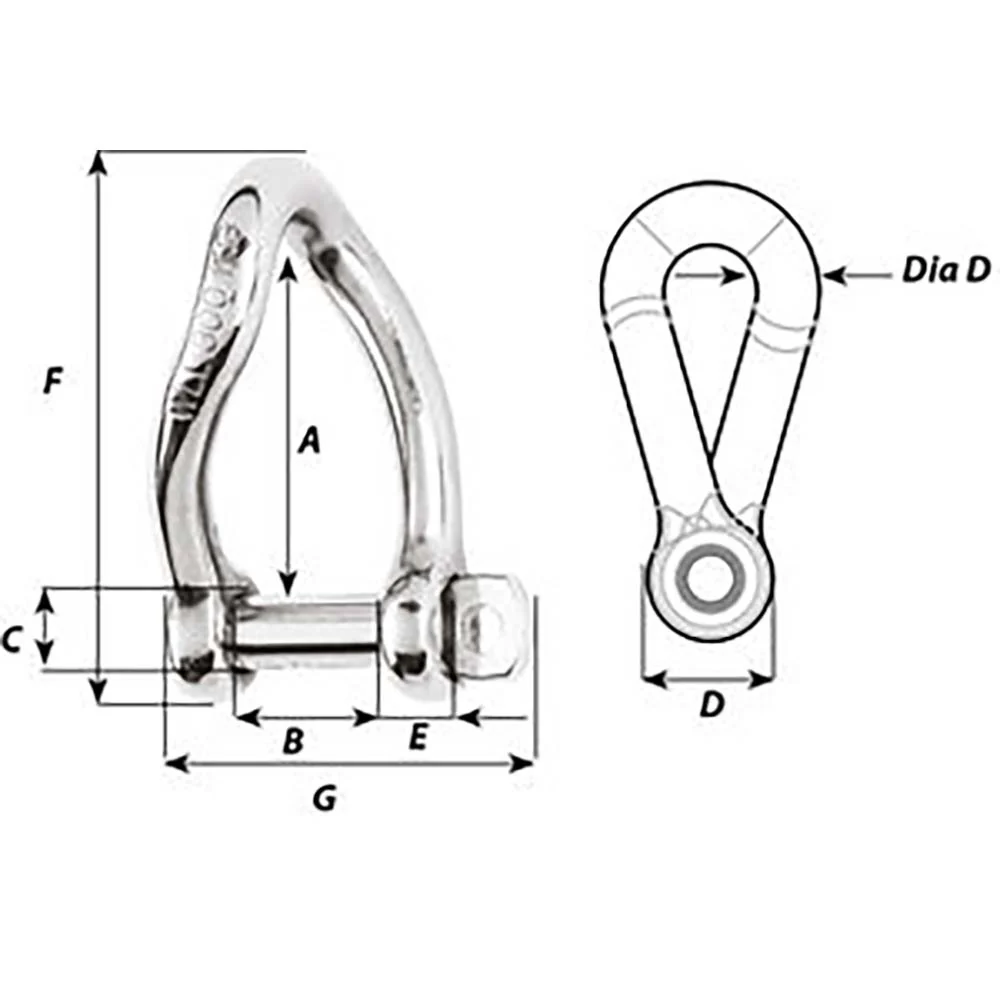

Refer to the second image for detailed dimensions.

Dimension	Size (inches)
A	1-1/32"
B	25/64"
C	13/64"
D	25/64"
D Diameter	13/64"
E	5/32"
F	1-1/2"
H	1-1/32"
