Enhance the safety and reliability of your marine setups with our Symmetric Carbin Hook. Crafted from high-grade 316L stainless steel, this 120mm hook is designed to withstand the harshest marine environments, ensuring secure and long-lasting performance for all your boating and nautical needs.

Features

• Premium Material: Constructed from Grade 316L stainless steel, offering exceptional corrosion resistance ideal for marine applications.
• Symmetrical Design: Balanced shape for even load distribution, enhancing stability and reliability.
• Versatile Attachment: Equipped with an eye for easy attachment of webbing or splicing, providing flexibility for various fastening needs.

Applications

Perfectly suited for a wide range of marine and boating applications, including:

• Securing sails and rigging
• Attaching docking lines
• General fastening tasks onboard
• Marine hardware installations

Specifications

Property	Value
Material	316L Stainless Steel Grade
Working Load	2990 lbs / 1360 kg
Working Load Limit (WLL)	1580 lbs / 720 kg
Breaking Load	7930 lbs / 3600 kg
Weight	0.505 lbs / 229 g

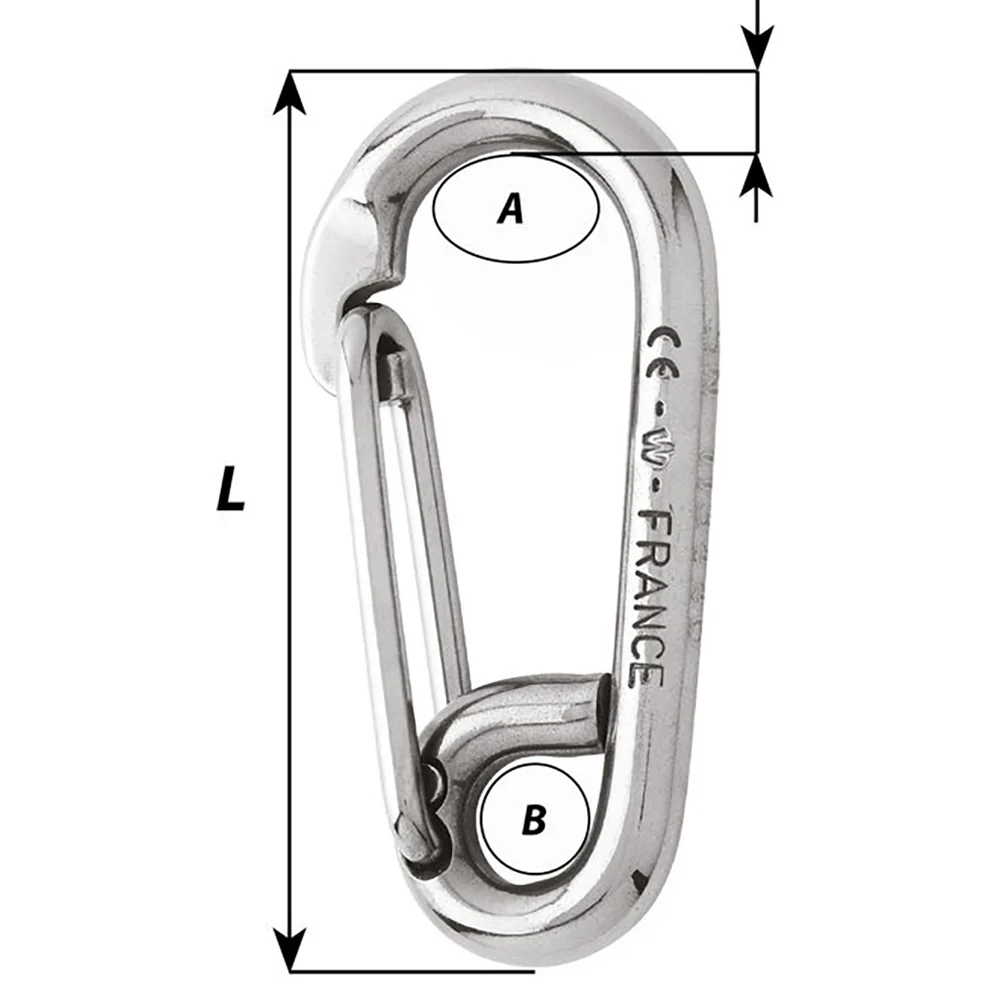

Dimensions

Dimension	Measurement
A	53/64" / 21 mm
B	5/8" / 16 mm
D Diameter	15/32" / 12 mm
Length	4 23/32" / 120 mm

Safety Information

• Working Load (WL): Suitable for nautical and marine applications, ensuring safe and reliable performance.
• Working Load Limit (WLL): Intended for industrial applications only. The safety factor is 5 times the breaking load. Calculation: WLL = Breaking Load / 5.

Sold individually.

Download Quick Guide (PDF)
