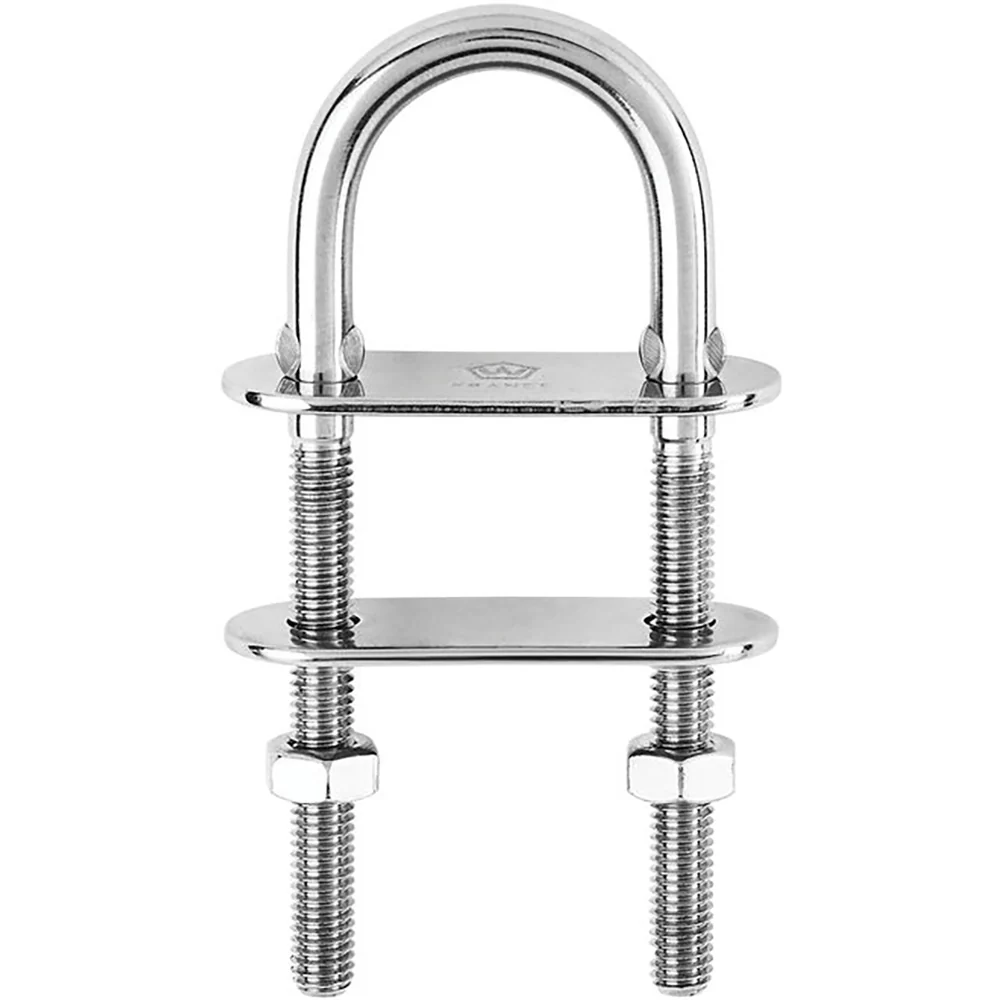

The U-Bolt Pad Eye - 4mm Diameter - 5/32" is an essential hardware component for marine and boating applications. Crafted from high-quality stainless steel, this robust pad eye ensures reliable fastening for various nautical uses, providing both strength and durability in demanding marine environments.

Features

• Fully drop forged using premium 316L stainless steel for enhanced durability
• Exceptional working and breaking loads for secure fastening
• Versatile design suitable for a wide range of applications including shrouds, lifelines, and blocks
• Comes complete with bolts and a counter-plate for immediate installation
• Maximum tightening torque of 2.3 Nm ensures optimal fastening without over-tightening

Applications

• Shrouds: Secure the standing rigging for sails
• Lifelines: Provide safety lines around the deck
• Blocks: Attach to blocks for sail handling and other deck operations
• General fastening needs on boats and marine vessels

Specifications

Material	316L Stainless Steel Grade
Working Load	1050 lbs / 480 kg
Breaking Load	2200 lbs / 1000 kg
Weight	0.049 lbs / 22 g

Dimensions

Dimension	Inches	Millimeters
A	15/16"	24 mm
B	53/64"	21 mm
C	1 1/16"	27 mm
D Diameter	5/32"	4 mm
Length	1 31/32"	50 mm

Load Information

• Working Load (WL): Suitable for various nautical applications, ensuring safe and secure fastening.
• Working Load Limit (WLL): Designed for industrial applications with a safety factor of 5 times the breaking load. Calculated as WLL = Breaking load / 5.

Sold as an Individual
