Upgrade your marine rigging with our premium U-Bolt Pad Eye, designed specifically for boating and nautical applications. Crafted from high-quality 316L stainless steel, this durable pad eye ensures reliable performance and longevity, making it an essential component for securing lifelines, shrouds, and blocks on your vessel.

Features

• Entirely drop forged from high-quality 316L stainless steel for maximum durability in marine environments
• Exceptional working and breaking loads to withstand rigorous marine applications
• Versatile fastening solution for shrouds, lifelines, blocks, and other maritime rigging needs
• Includes bolts and counter-plate for immediate installation
• Maximum tightening torque: 7.5 Nm

Applications

• Ideal for shrouds, lifelines, blocks, and various other fastening applications on boats and yachts

Specifications

Material	316L Stainless Steel Grade
Working Load	2820 lb / 1280 kg
Breaking Load	6610 lb / 3000 kg
Weight	0.148 lb / 67 g

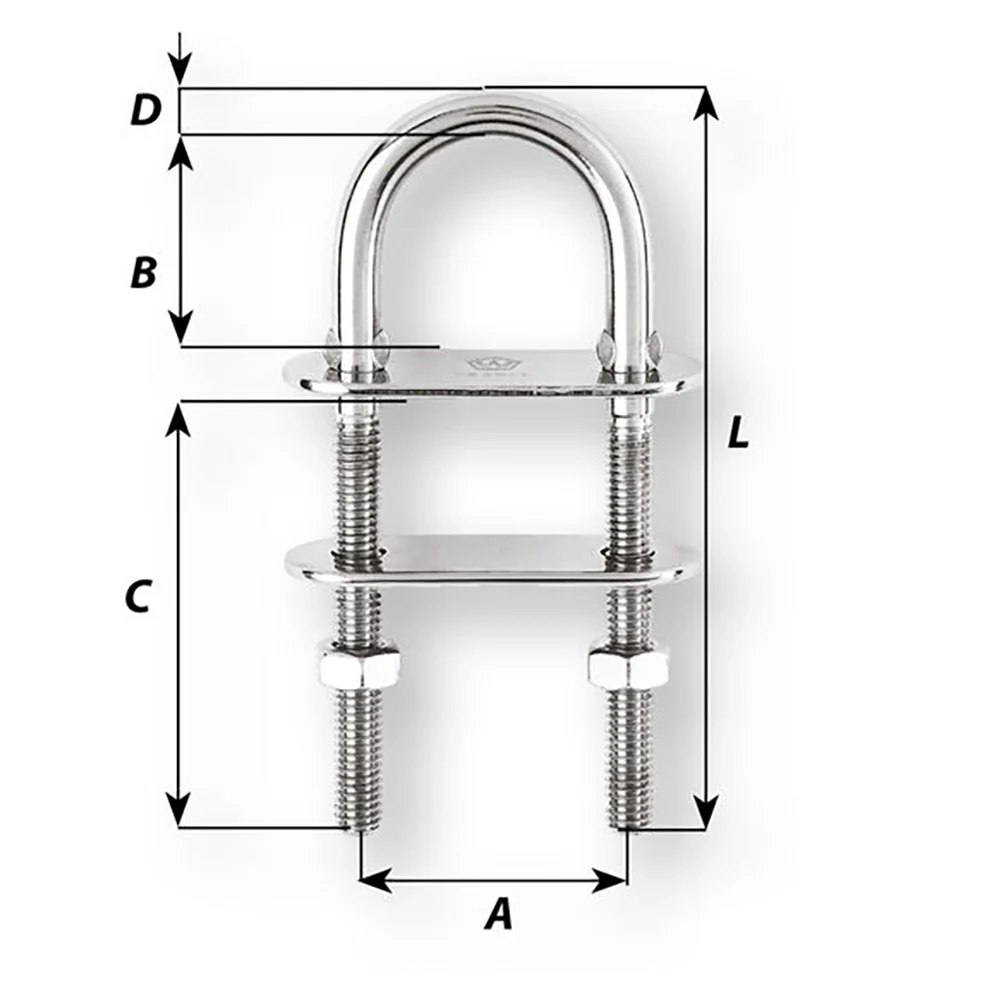

Dimensions

Dimension	Inches	Millimeters
A	1 17/64"	32 mm
B	1 1/16"	27 mm
C	2 11/64"	55 mm
D Diameter	15/64"	6 mm
Length	3 35/64"	90 mm

Safety Information

• Working Load (WL): Suitable for nautical applications
• Working Load Limit (WLL): Designed for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
